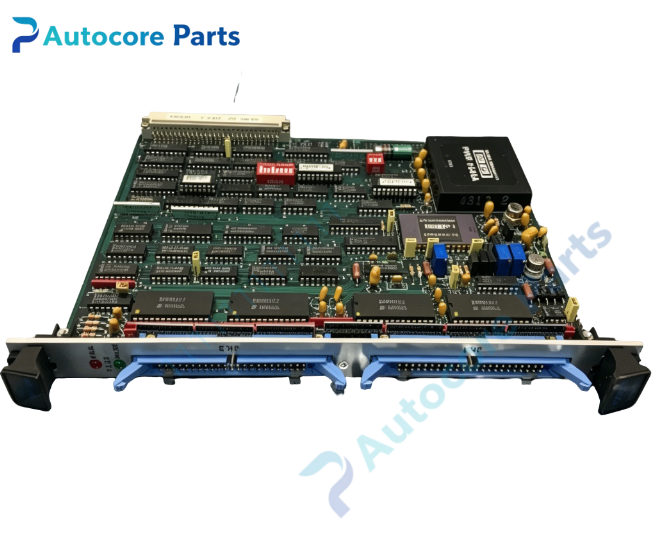

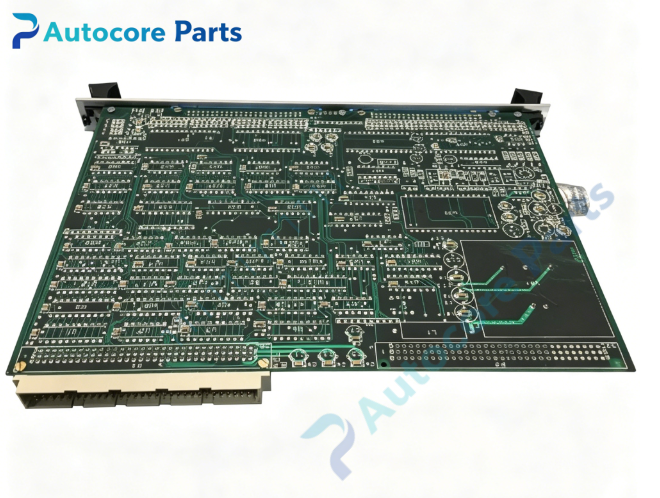

XYCOM XVME-560 Analog Input VME Module

Technical Specifications

Model:70560-001 XVME-560

Brand:XYCOM

Product type:6U Dual Height VMEbus High Density Analog Input Module

Power supply:+5V,+12V VME backplane power

Channel:64 single-ended analog input or 32 differential analog input

Resolution:12-bit ADC,programmable gain 1,2,4,8

Input range:0~5V,0~10V,±2.5V,±5V,±10V

Max sampling rate:100kHz

Bus interface:Standard VMEbus,support DMA and VME interrupt

Form factor:Dual-height 6U VME card

Weight:0.32kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

70560-001 XVME-560 belongs to XYCOM XVME series VME I/O board.

It plugs into VME chassis and cooperates with XVME series CPU board.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Collect field analog signals of temperature,pressure,flow,vibration from transmitters.

12-bit analog-to-digital conversion,transmit digital data to VME host CPU.

Four working modes:random channel,sequential channel,single-channel,external trigger acquisition.

Support hardware interrupt after ADC conversion,support DMA high speed data transmission.

Software programmable gain for different signal amplitude adjustment.

Onboard self-test circuit for channel and ADC hardware fault inspection.

Installation

Power off VME chassis.

Insert 70560-001 XVME-560 card into two adjacent empty 6U VME slots,tighten front panel fixing screw.

Connect field sensor wiring to module front signal connector.

Power on chassis,run VME system scan and self-test program.

Set input mode and gain parameter,calibrate each AI channel and verify sampling accuracy.

Interface

VME P1/P2 backplane connector,front field signal connector,LED indicators:PASS,FAIL.

Feature

Dual height 6U VME standard board,large channel capacity for multi-point analog collection.

Support single-ended and differential input,differential mode effectively suppress common mode interference.

Programmable gain and multiple voltage range options,adapt to various field transmitters.

High speed sampling,interrupt and DMA function,reduce CPU data transmission load.

Discontinued obsolete VME analog input module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for continuous long-time industrial operation.

Diagnostic

FAIL LED on:ADC chip failure or backplane poor contact;

Individual channel no reading:check field sensor power and wiring,verify input range and gain setting;

Abnormal sampling value:check signal interference and grounding condition.

Product Brief

XYCOM 70560-001 XVME-560 is legacy 6U dual height VMEbus high density analog input module.

It acquires multi-channel field analog signals for process monitoring,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
