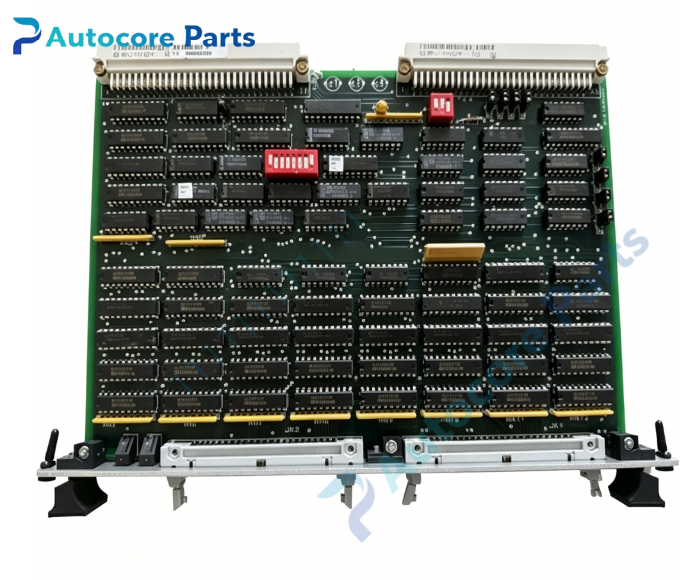

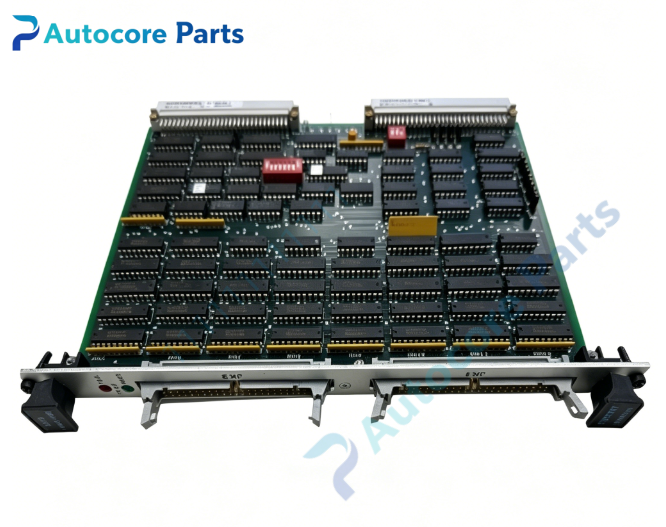

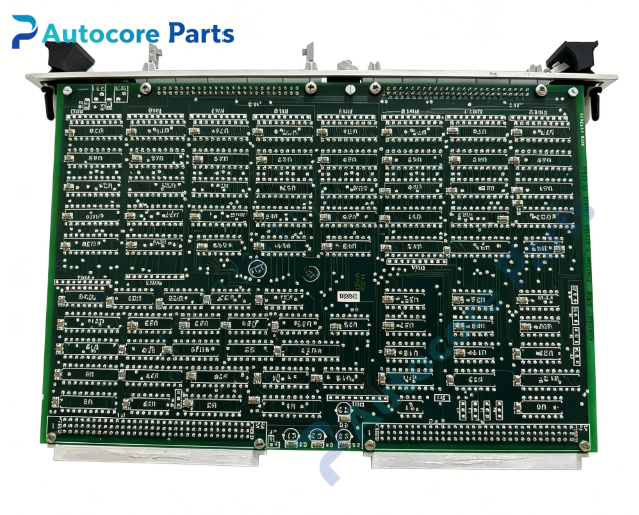

XYCOM XVME-240 Digital I/O VME Module

Technical Specifications

Model:70240-001 XVME-240

Brand:XYCOM

Product type:6U Single Height VMEbus High Density Digital I/O Module

Power supply:+5V,+12V,-12V VME backplane power

Channel:80-channel TTL level digital I/O,64 bidirectional programmable ports,8 interrupt input lines

Signal type:TTL logic level signal

Bus interface:Standard VMEbus,interrupt trigger function

Form factor:Single-height 6U VME card

Weight:0.24kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

70240-001 XVME-240 belongs to XYCOM XVME series VME I/O board.

It plugs into VME chassis and cooperates with XVME series CPU board.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Collect field discrete TTL digital signals,switch status and equipment feedback signals.

Bidirectional port configuration,each byte port can be set as input or output separately.

8 hardware interrupt input lines,support rising/falling edge trigger and interrupt mask control.

Output digital control signal to drive on-site logic equipment.

Onboard self-test circuit for channel and hardware fault inspection.

Communicate with VME host CPU for digital data read and write.

Installation

Power off VME chassis.

Insert 70240-001 XVME-240 card into empty 6U VME slot,tighten front panel fixing screw.

Connect field digital wiring to module terminal block.

Power on chassis,run VME system scan and self-test program.

Configure port direction register,test each input and output channel signal status.

Interface

VME P1/P2 backplane connector,field signal terminal block,LED indicators:RUN,COM,FAULT.

Feature

Single height 6U VME standard board,easy installation in VME rack.

High density 80-channel DIO design,suitable for large quantity discrete signal collection.

Programmable port direction,interrupt function for fast event response.

Discontinued obsolete VME digital I/O module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for continuous long-time industrial operation.

Diagnostic

FAULT LED on:channel overvoltage or backplane poor contact;

Individual channel no reading:check field wiring and port configuration register;

Interrupt no trigger:check interrupt mask register and edge jumper setting.

Product Brief

XYCOM 70240-001 XVME-240 is legacy 6U single height VMEbus high density digital I/O module.

It acquires and outputs large amounts of field discrete signals,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
