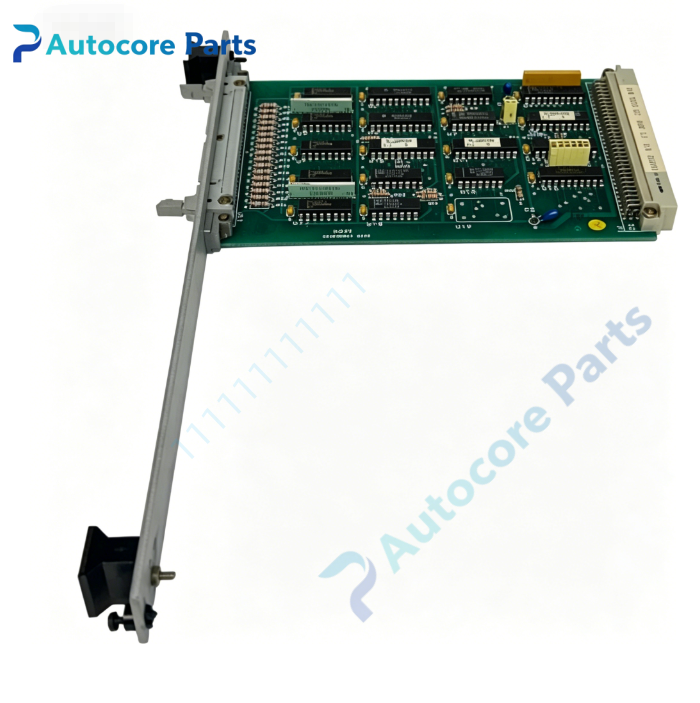

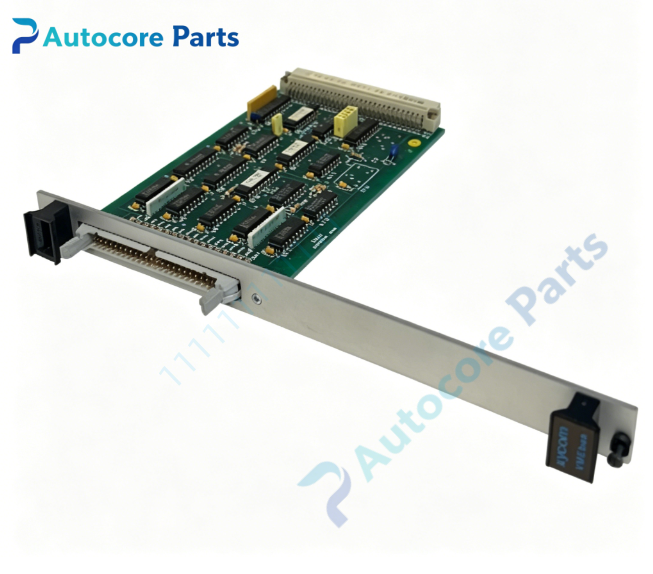

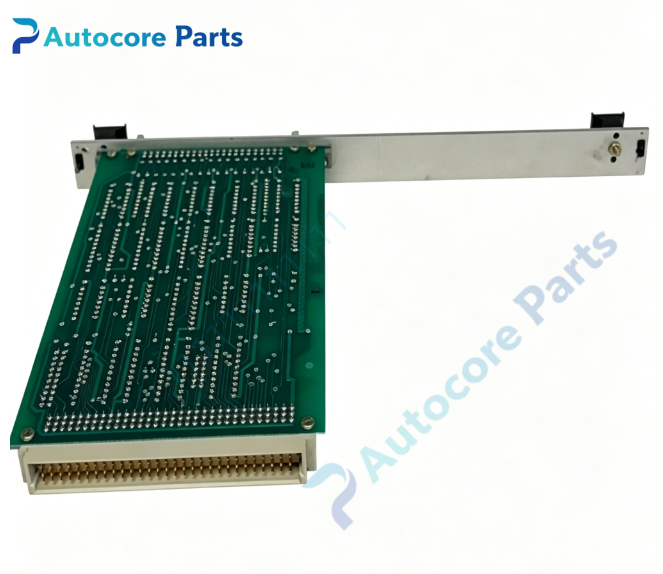

XYCOM XVME-202 VMEbus Digital I/O Module

Technical Specifications

Model:70202-002 XVME-202

Brand:XYCOM

Product type:6U Single Height VMEbus Digital I/O Module

Power supply:+5V,+12V,-12V VME backplane power

Channel:Multi-channel digital input and digital output

Signal type:Discrete switch signal,dry contact / logic level

Bus interface:Standard VMEbus

Form factor:Single-height 6U VME card

Weight:0.23kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

70202-002 XVME-202 belongs to XYCOM XVME series VME I/O board.

It plugs into VME chassis and cooperates with XVME series CPU board.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Collect field discrete digital signals,such as switch status,relay feedback,limit signal.

Output digital control signal to drive on-site relay,solenoid valve and indicator light.

Realize interlock logic,start-stop control and status feedback transmission.

Onboard self-test circuit for channel and hardware fault inspection.

Communicate with VME host CPU for digital data read and write.

Installation

Power off VME chassis.

Insert 70202-002 XVME-202 card into empty 6U VME slot,tighten front panel fixing screw.

Connect field digital wiring to module terminal block.

Power on chassis,run VME system scan and self-test program.

Test each input and output channel signal status.

Interface

VME P1/P2 backplane connector,field signal terminal block,LED indicators:RUN,COM,FAULT.

Feature

Single height 6U VME standard board,easy installation in VME rack.

Isolated digital I/O channels,suppress field surge interference.

High reliability discrete signal acquisition and output for interlock protection.

Discontinued obsolete VME digital I/O module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for continuous long-time industrial operation.

Diagnostic

FAULT LED on:channel overcurrent or backplane poor contact;

Input channel no signal:check field switch wiring and loop power;

Output no action:check output point burnout and load circuit fault.

Product Brief

XYCOM 70202-002 XVME-202 is legacy 6U single height VMEbus digital I/O module.

It acquires field switch signals and outputs control commands,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.
