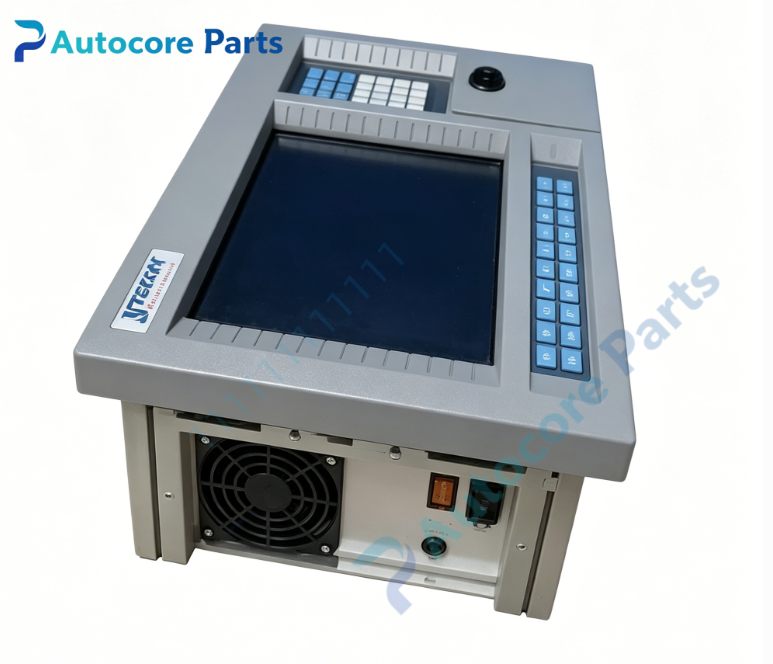

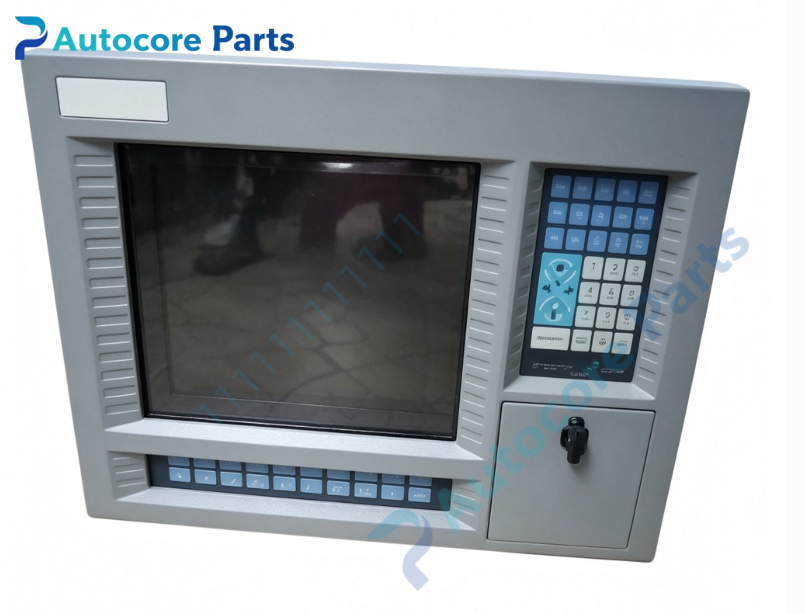

XYCOM 9487 Flat Panel Industrial Computer

Technical Specifications

Model:9487

Brand:XYCOM

Product type:10.4 Inch Panel & 19-inch Rack Mount Flat Panel Industrial PC

Power supply:115/230VAC auto-switching,50/60Hz

Display:10.4 inch VGA TFT active matrix LCD,640480 resolution

Processor:Intel Pentium 233MHz with MMX

Memory:64MB DRAM,expandable

Storage:10GB IDE hard disk,front/rear accessible 1.44MB floppy drive

Graphics:PCI video controller

Communication:2RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2

Expansion:4-slot full-length ISA passive backplane,3 usable slots

Input:Optional 5-wire resistive touchscreen,programmable relegendable membrane keypad(20 function keys +32 data keys)

Mounting:Panel mount or 19-inch EIA rack mount,143mm(5.62 inch) mounting depth

Weight:11.8kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed after correct installation

Certification:CE,UL,Class I Division2

System compatibility

9487 belongs to XYCOM 9400 series compact flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95,Windows NT operating system and XYCOM SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages.

Membrane keypad or optional touchscreen for parameter modification,mode selection and manual operation.

Compact shallow chassis design,suitable for cabinet space limited scenarios.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into cabinet panel cutout or install to 19-inch rack and lock mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,keypad,touch and communication function.

Interface

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,floppy drive bay,10.4 inch VGA TFT LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,STATUS.

Feature

Compact 10.4-inch TFT screen,shallow mounting depth,save cabinet installation space.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

4-slot full-length ISA passive backplane,support legacy ISA industrial boards.

Programmable multi-function membrane keypad,key label can be redefined.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR,HDD,STATUS LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9487 is 9400 series compact 10.4 inch sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes process data display and manual operation,widely applied to spare replacement for petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
