XYCOM 5012-KPM Flat Panel Industrial Monitor

Technical Specifications

Model:5012-KPM

Brand:XYCOM

Product type:Panel Mount Membrane Keypad Flat Panel Industrial Monitor

Power supply:100~240VAC auto-switching,50~60Hz

Display:12.1 inch color TFT LCD,800*600 SVGA,260 nits brightness

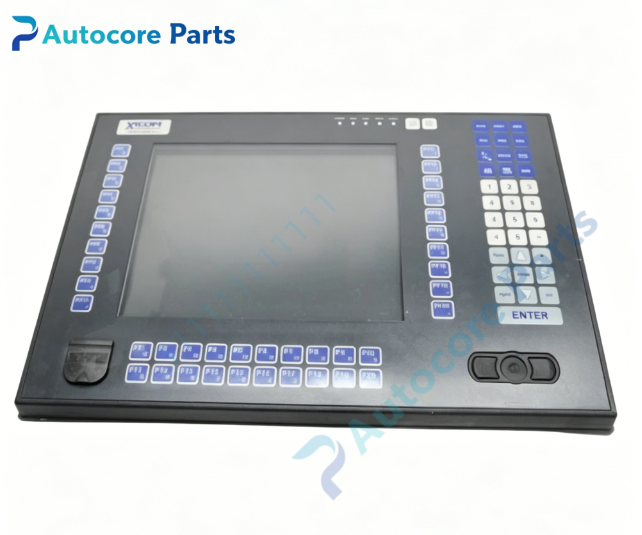

Input:74-position relegendable & reprogrammable membrane keypad,built-in Versapoint pointing device

Signal interface:VGA video input

Communication:PS/2 keyboard & mouse port,USB

Mounting:Panel cutout installation

Weight:6.8kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65

Certification:CE,UL,Class I Div 2

System compatibility

5012-KPM belongs to XYCOM 5000 series flat panel industrial monitor.

It receives VGA video signal from external industrial PC or controller.

Compatible with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VGA and PS/2 communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Receive VGA video signal and display real-time process value,trend curve,alarm list and system running status.

74-key relegendable membrane keypad for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Built-in Versapoint pointing device for cursor control.

PS/2 and USB interface for external keyboard,mouse or scanner expansion.

Front panel sealed design for continuous field display and operation.

Installation

Embed the monitor into cabinet cutout and fasten mounting clips.

Connect 100~240VAC power cable and protective earth wire.

Wire VGA cable to external industrial PC or controller.

Connect PS/2 or USB cable for keypad and pointing device signal transmission.

Power on,adjust display parameters,test keypad and pointer operation.

Interface

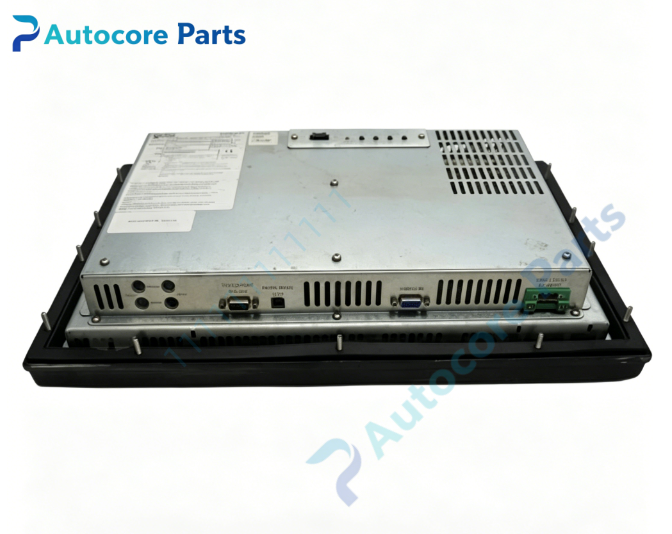

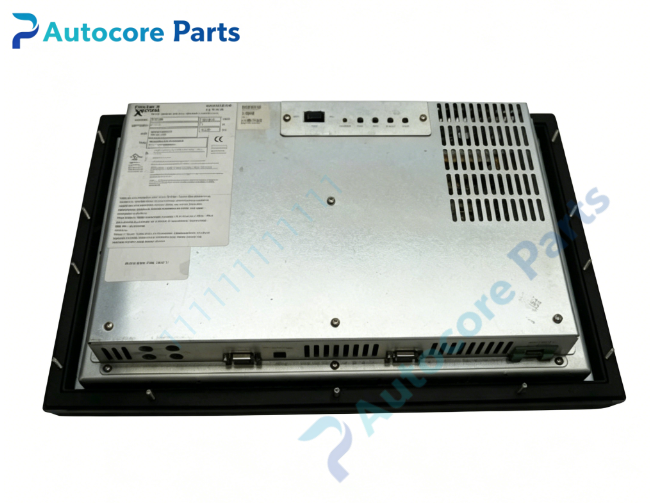

AC power terminal,VGA,PS/2,USB,membrane keypad,LCD display,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,IP65 dust and splash resistance for industrial field environment.

12.1-inch SVGA high brightness color LCD,74-key customizable membrane keypad with integrated pointing device.

Only display unit,independent of host CPU,matched with external industrial controller.

Discontinued obsolete industrial monitor,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and VGA signal cable;no video signal:verify host video output;keypad no response:inspect membrane keypad circuit and connector;pointer malfunction:check pointing device wiring.

Product Brief

XYCOM 5012-KPM is legacy 12.1-inch panel mount flat panel industrial monitor with integrated membrane keypad.

It receives video signal from external host equipment and serves as local HMI display panel for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.
