XYCOM 4870 Flat Panel Industrial Operator Terminal

Technical Specifications

Model:4870

Brand:XYCOM

Product type:9 Inch EL Flat Panel Intelligent Industrial Operator Terminal

Power supply:115/230VAC,50/60Hz,0.32/0.16A

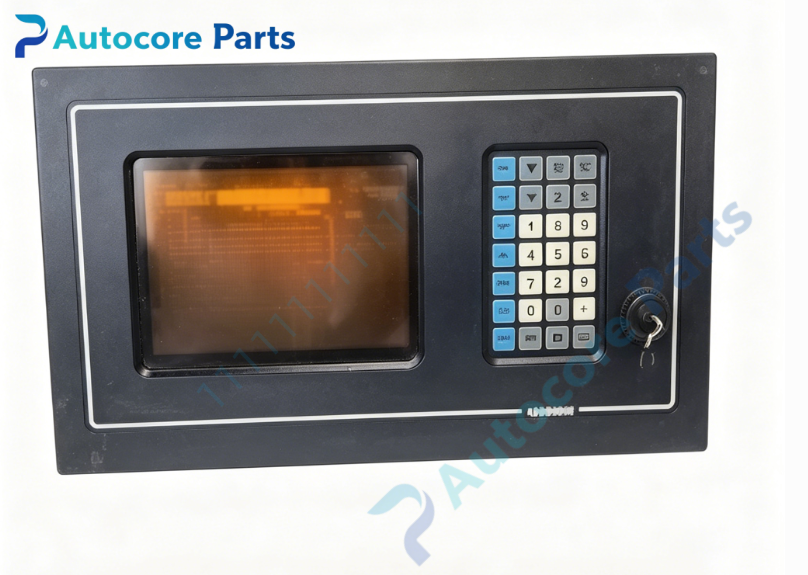

Display:9 inch amber electroluminescent(EL) flat panel display

Input:28-key sealed industrial membrane keypad

Communication:RS232C serial port,emulate Hazeltine 1500 / ANSI VT100/220 terminal

Weight:7.6kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Mounting:Panel mount(NEMA4/NEMA12) or 19-inch EIA rack mount

Certification:CE,UL,Class I Division2

System compatibility

4870 belongs to XYCOM 4800 series intelligent operator terminal.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via RS232 serial communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Real-time display process parameters,bar graphs,system alarms and equipment running status.

28-key sealed membrane keypad for parameter setting,operation mode switching and manual command input.

Support terminal emulation: Hazeltine 1500, ANSI, DEC VT100/220.

Can draw lines,boxes and process control symbols on screen for process monitoring.

Bidirectional serial data exchange with VME main controller.

Local visual alarm indication when process abnormal occurs.

Power-on self-test for onboard hardware circuit detection.

Support XYCOM SoftScreen configuration software for screen project editing and download.

Store alarm records and simple operation event logs.

Installation

Embed the unit into cabinet panel cutout and fasten mounting brackets,or install in 19-inch rack.

Connect 115/230VAC power cable and protective earth wire.

Wire RS232 serial communication cable to VME controller serial port.

Power on and run hardware self-test,select terminal emulation mode,configure serial baud rate.

Download HMI project,verify keypad,EL display and serial communication function.

Interface

AC power terminal,RS232C serial port,9 inch amber EL flat display,28-key membrane keypad,LED indicators:PWR,COMM,ALARM.

Feature

Solid-state electroluminescent flat panel,no CRT tube,shock and vibration resistance.

Sealed 28-key membrane keypad,dust and oil resistant for industrial field environment.

Support multiple terminal emulation modes,easy connect legacy VME control platform.

Two mounting options:panel mount NEMA4 /19 inch rack mount.

Intelligent terminal with built-in graphics function for bar chart and symbol display.

Discontinued legacy product,only used for old production system maintenance spare replacement.

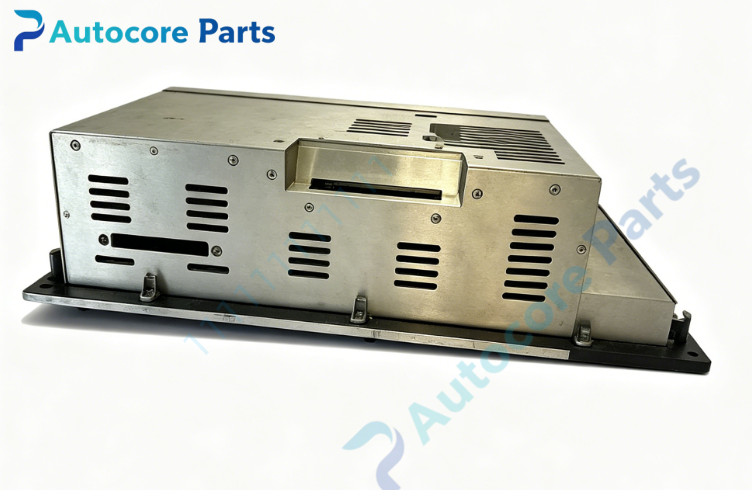

Rugged metal housing,designed for long-time continuous operation.

Diagnostic

Check PWR and COMM LED;communication failure:check serial wiring,baud rate and terminal emulation mode;data abnormal:inspect EL display panel,keypad and serial port hardware.

Product Brief

XYCOM 4870 is 4800 series 9-inch EL flat panel intelligent industrial operator terminal.

It cooperates with XYCOM VME bus control system for field process monitoring and manual operation,widely used as spare parts for turbine and petrochemical old DCS control system renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
