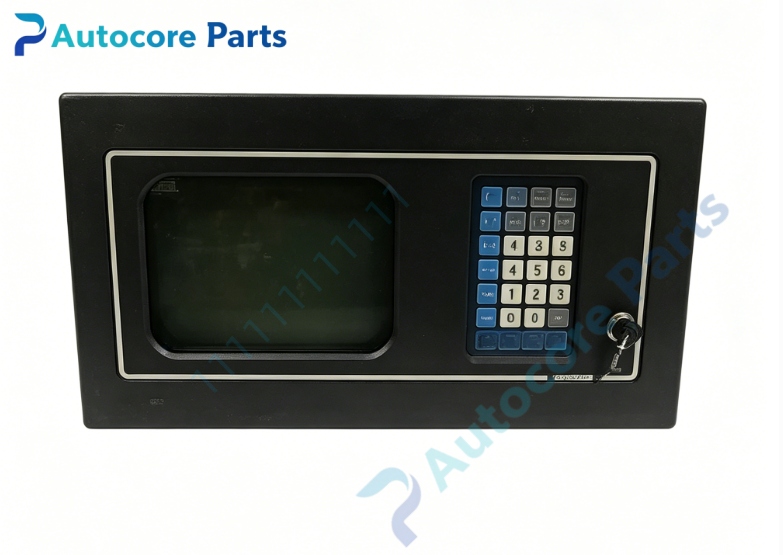

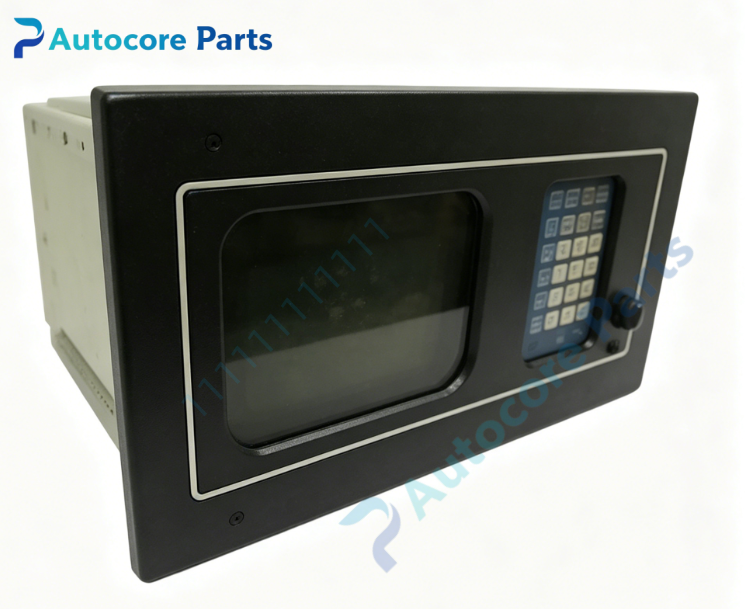

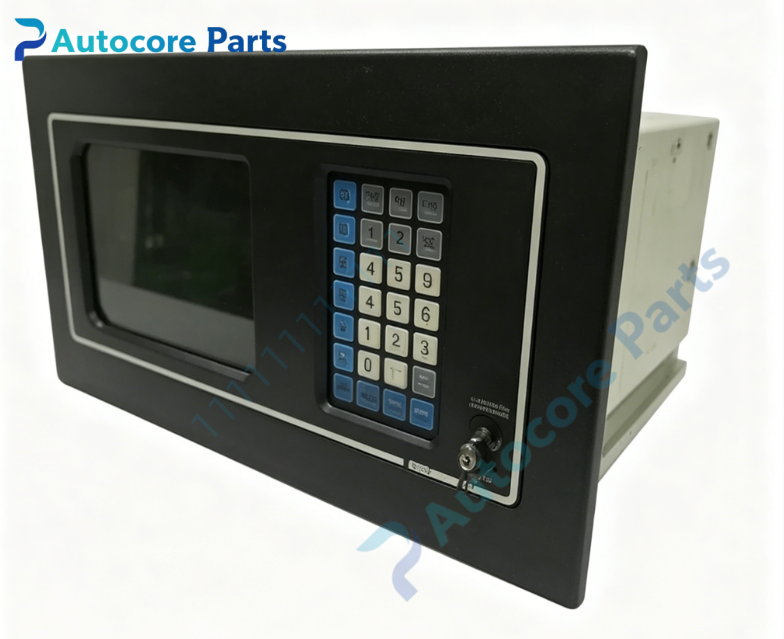

XYCOM 4810 Operator Interface Terminal

Technical Specifications

Model:4810

Brand:XYCOM

Product type:Panel Mount Industrial Operator Interface Terminal HMI

Power supply:115/230VAC,50/60Hz

Display:Monochrome / optional color LCD display

Input:Industrial membrane keypad

Communication:RS232 / RS485 serial interface

Weight:3.2kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL,Class I Division2

System compatibility

4810 belongs to XYCOM 4800 series panel mount operator terminal.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial port.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Real-time display process parameters,system alarms and equipment running status.

Membrane keypad for parameter setting,operation mode switching and manual control command input.

Bidirectional serial data exchange with VME main controller.

Local visual alarm indication when process abnormal occurs.

Power-on self-test for onboard hardware circuit detection.

Support XYCOM dedicated HMI configuration software for screen project upload and download.

Store alarm records and simple operation event logs.

Installation

Embed the unit into cabinet panel cutout and fasten mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial communication cable to VME controller serial port.

Power on and run hardware self-test,configure serial baud rate and station address.

Download HMI project,verify keypad,display and serial communication function.

Interface

AC power terminal,RS232/RS485 serial port,LCD display,membrane keypad,LED indicators:PWR,COMM,ALARM.

Feature

Front panel panel mount design,suitable for control cabinet installation.

Integrated LCD display and heavy-duty industrial membrane keypad,dust and oil resistant.

Dedicated serial interface to connect XYCOM VME control platform.

Compact body size,save cabinet installation space.

Discontinued legacy product,only used for old production system maintenance spare replacement.

Rugged hardware design for long-time continuous operation in industrial site.

Diagnostic

Check PWR and COMM LED;communication failure:check serial wiring,baud rate and station address;data abnormal:inspect keypad,display panel and serial port hardware.

Product Brief

XYCOM 4810 is 4800 series panel mount industrial operator terminal.

It cooperates with XYCOM VME bus control system for field process monitoring and manual operation,widely used as spare parts for turbine and petrochemical old DCS control system renovation.
