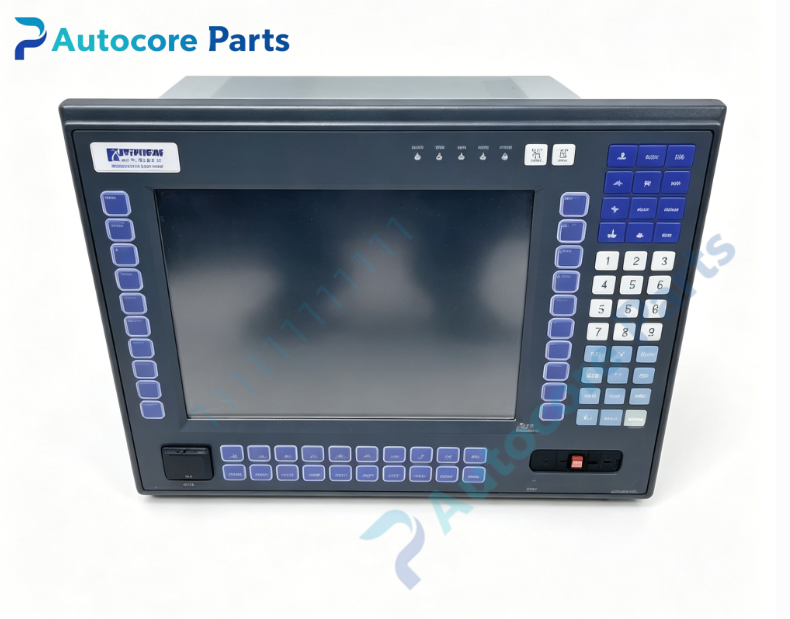

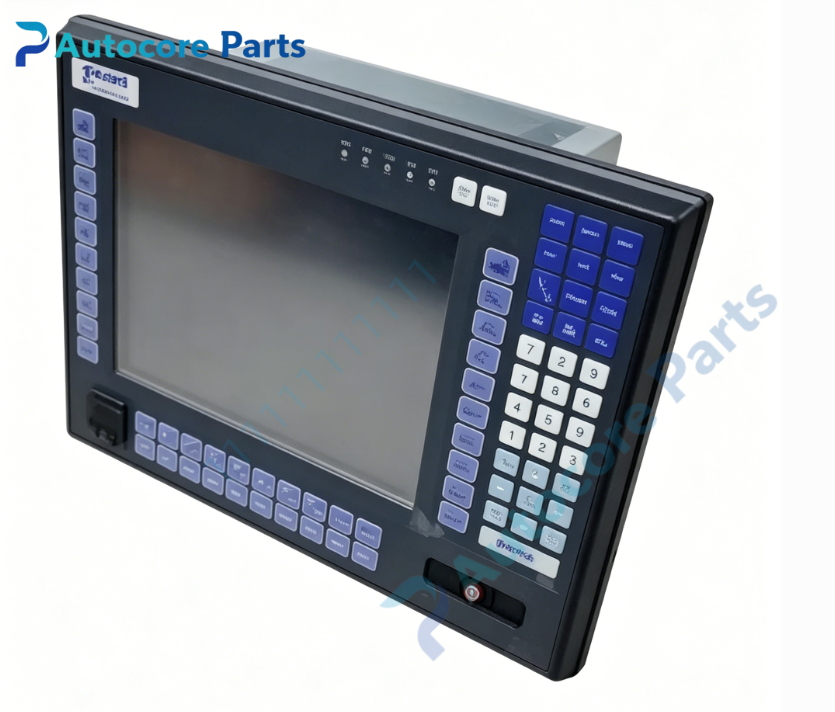

XYCOM 3612KPM Flat Panel Industrial PC

Technical Specifications

Model:3612KPM

Brand:XYCOM

Product type:Panel Mount Keypad Flat Panel Industrial PC

Power supply:100~240VAC auto-switching,50~60Hz

Display:12.1 inch color TFT LCD,800600 SVGA,300 nits brightness

Input:Reprogrammable relegendable membrane keypad,with integrated industrial mouse

Processor:Intel Socket370 Celeron 850MHz / Pentium III optional

Memory:Up to 512MB SDRAM

Storage:IDE HDD,optional floppy,CD-ROM or flash storage

Communication:3RS232,10/100M Ethernet,2*USB,parallel port,PS/2

Expansion:4 expansion slots,1 ISA,2 PCI,1 shared ISA/PCI slot

Mounting:Panel cutout installation

Weight:7.7kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65

Certification:CE,UL,Class I Div 2

System compatibility

3612KPM belongs to XYCOM 3600 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows NT,Windows 2000,Windows XP industrial operating system,run HMI monitoring program locally.

Real-time display process value,trend curve,alarm list and system running status.

Reprogrammable membrane keypad for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Multiple communication ports for data exchange with VME controller,PLC and DCS host.

4-slot mixed ISA/PCI expansion design,support multi-card installation for field function upgrade.

Built-in hardware watchdog timer and self-diagnosis function to detect hardware and communication fault.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

Connect 100~240VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME SBC or DCS controller.

Power on,set BIOS parameters,IP address and serial communication parameters.

Install HMI software and project,test data reading and keypad operation.

Interface

AC power terminal,RS232,Ethernet,USB,parallel port,PS/2,membrane keypad,LCD display,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,IP65 dust and splash resistance for industrial field environment.

12.1-inch SVGA high brightness color LCD,relegendable function keys and numeric keypad,built-in industrial mouse.

4-slot ISA/PCI hybrid expansion,great flexibility to add various industrial acquisition and communication boards.

Discontinued obsolete industrial panel PC,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and LCD backlight;communication lost:verify cable,baud rate or IP setting;keypad no response:inspect membrane keypad circuit and connector;system abnormal reset:check watchdog and hardware interference.

Product Brief

XYCOM 3612KPM is legacy 12.1-inch panel mount keypad type flat panel industrial PC.

It serves as local HMI and monitoring workstation for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.
