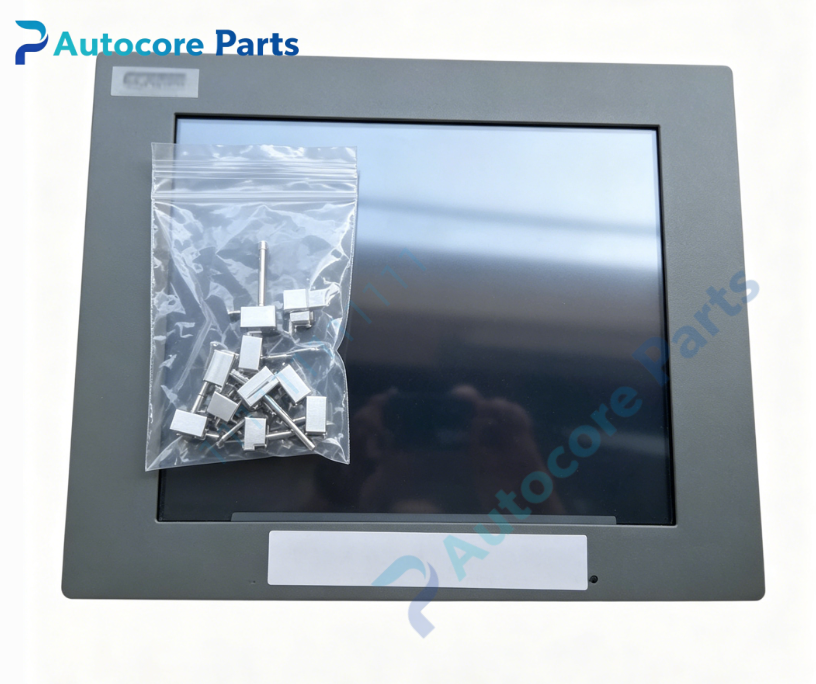

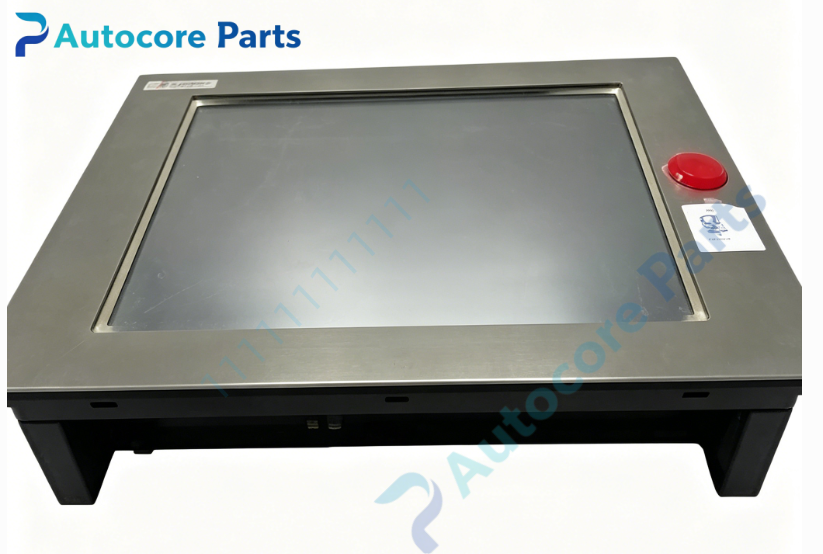

XYCOM 3115T Thinline Panel Industrial PC

Technical Specifications

Model:3115T

Brand:XYCOM

Product type:Panel Mount Thinline Industrial Touch Panel PC

Power supply:100~240VAC auto-switching,47~63Hz

Display:15 inch industrial color TFT LCD,1024768 XGA,Dynapro resistive touchscreen

Processor:Intel Pentium III / Celeron Socket370 CPU

Memory:256MB SDRAM,max 512MB

Storage:20GB IDE hard disk,CF card slot,floppy and CD-ROM optional

Communication:2RS232,1configurable RS232/422/485,10/100M Ethernet,2USB

Mounting:Panel cutout installation

Weight:4.6kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12

Certification:CE,UL

System compatibility

3115T belongs to XYCOM Thinline 3100 series industrial panel PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Run Windows 2000/XP industrial operating system,support HMI configuration and local logic operation.

Real-time display process value,trend curve,alarm list and system running status.

Touchscreen operation for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Multiple communication ports to exchange data with VME controller,PLC or DCS host.

Built-in hardware watchdog timer to avoid system crash.

On-board self-diagnosis function to detect communication failure and hardware fault.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

Connect 100~240VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME SBC or DCS controller.

Power on,set BIOS parameters,IP address and serial communication parameters.

Install HMI software and project,test data reading and touch operation.

Interface

AC power terminal,RS232,RS422/485,Ethernet,USB,PS/2,VGA,touchscreen,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,dust and splash resistance for industrial field environment.

15-inch XGA high brightness LCD,Dynapro resistive touch,support glove operation.

Integrated industrial PC architecture,can run HMI program locally without separate controller.

Discontinued obsolete industrial panel PC,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and backlight;communication lost:verify cable,baud rate or IP setting;touch no response:inspect touchscreen circuit and connector;system auto reboot:check watchdog setting and hardware interference.

Product Brief

XYCOM 3115T is legacy 15-inch thinline panel mount industrial touch panel PC.

It serves as local HMI and monitoring workstation for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.
