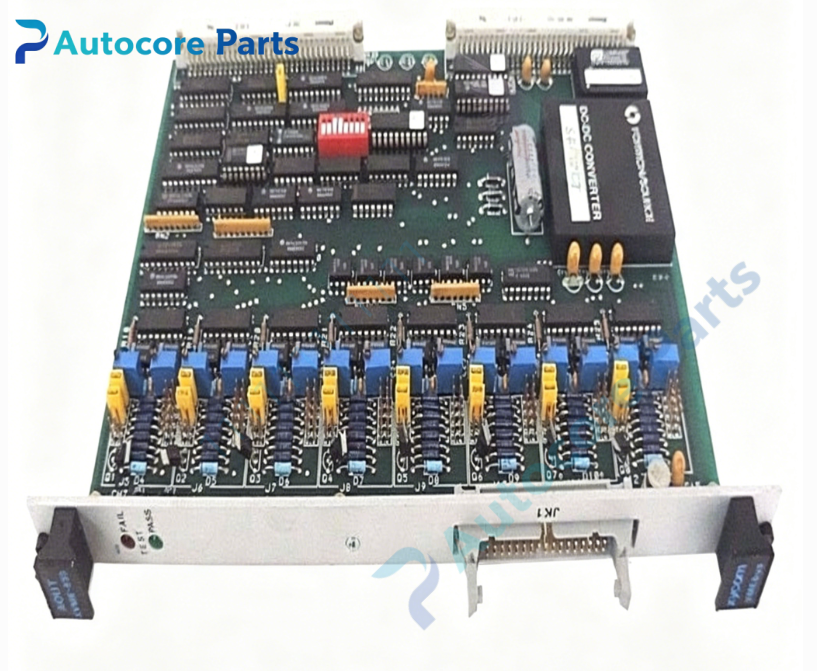

XYCOM 2225-0036 Single Board Computer

Technical Specifications

Model:2225-0036

Brand:XYCOM

Product type:VME Bus Rack Mount Single Board Computer

Power supply:5V,±12VDC

Bus type:VME bus

Processor:Intel embedded x86 CPU

Memory:Onboard DRAM,flash storage for firmware

Communication:Onboard RS232 serial port,optional ethernet

Mounting:3U VME rack slot

Weight:0.85kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

2225-0036 belongs to XYCOM VME series single board computer.

It can coordinate with XYCOM VME I/O modules such as analog input,digital I/O and communication boards.

Compatible with turbine,compressor and legacy DCS control systems.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Main controller for VME rack system,execute control logic and data calculation.

Read data from analog and digital I/O modules via VME bus.

Serial communication with local HMI panel for parameter display and operation.

Onboard flash for control program and configuration storage.

Built-in watchdog timer to prevent system halt.

Support hardware self-diagnosis,bus error and memory fault detection.

Installation

Insert the module into 3U VME rack slot and fasten front panel screws.

Connect VME backplane power and bus signal.

Connect serial cable to HMI terminal.

Power on,set VME base address and boot parameters.

Download control program,test bus communication and logic operation.

Interface

VME backplane connector,RS232 serial port,LED indicators:RUN,FAULT,ACTIVE.

Feature

Standard 3U VME single board computer,acts as core controller of legacy VME rack.

Integrated CPU,memory and serial port,reduce external hardware configuration.

Hardware watchdog function,improve stability for continuous industrial operation.

Discontinued obsolete industrial board,supply only for old production system spare replacement.

Rugged PCB design,shock and vibration resistance for field environment.

Diagnostic

Check RUN,FAULT,ACTIVE LED;no boot:check VME power and memory;bus communication failure:inspect backplane and address setting;watchdog reset:check program run and interference.

Product Brief

XYCOM 2225-0036 is VME bus 3U single board computer.

It serves as the main CPU controller for legacy turbine and compressor control system,widely applied to spare replacement for petrochemical and power plant old DCS renovation.
