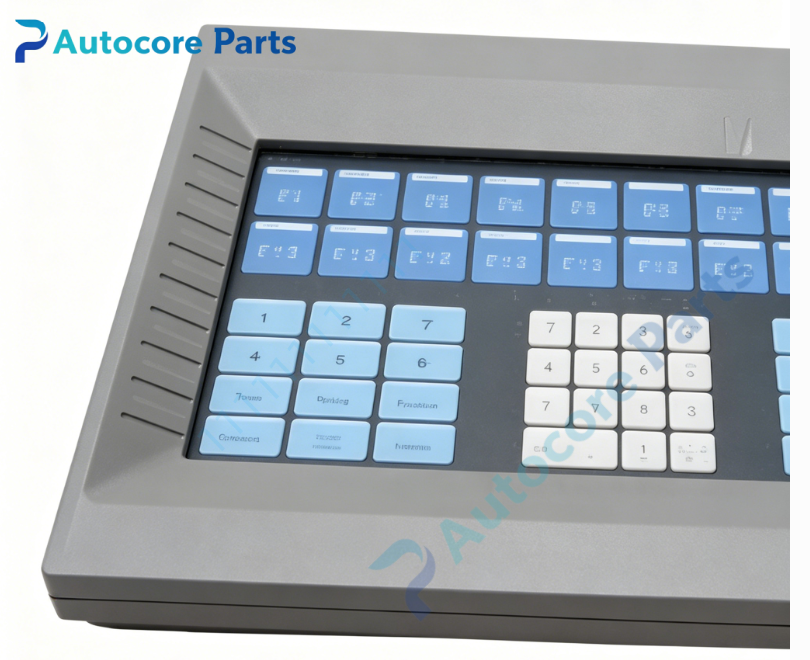

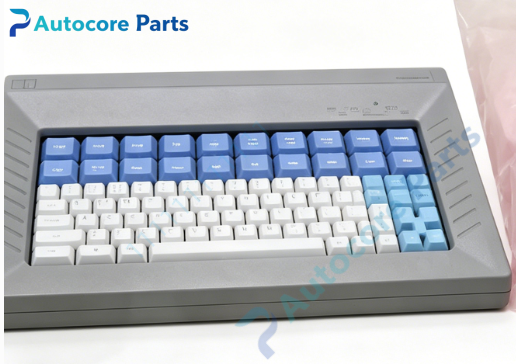

XYCOM 2000 Operator Interface Panel

Technical Specifications

Model:2000

Brand:XYCOM

Product type:Legacy 19-inch Rack Mount Industrial Operator Interface HMI

Power supply:90~250VAC,47~63Hz

Communication:RS232 / RS485 serial port

Weight:3.2kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:19 inch rack mount standard size

Certification:CE,UL,Class I Division2

System compatibility

2000 belongs to XYCOM 2000 series old generation industrial HMI operator panel.

It communicates with XYCOM VME bus single board computer such as XYCOM 1840.

Compatible with XVME series I/O and communication boards in VME chassis.

Widely used for turbine control,compressor unit,petrochemical and power plant old DCS monitoring system maintenance and spare replacement.

Function

Real-time display of process variables,system alarms and equipment fault status.

Membrane keypad for parameter setting,operation mode switching and manual command input.

Bidirectional serial data exchange with VME main controller.

Local alarm indication for abnormal process conditions.

Power-on self-test to detect hardware faults.

Store alarm and simple operation event records.

Installation

Mount the unit in 19-inch cabinet rack and fasten mounting screws.

Connect 90~250VAC power cable and protective earth.

Wire serial communication cable to VME controller.

Power on,run self-test,configure serial baud rate and station address.

Check communication and keypad functions.

Interface

AC power terminal,RS232/RS485 serial port,front panel display,membrane keypad,LED indicators:PWR,COMM,ALARM.

Feature

Standard 19-inch rack installation,suitable for control cabinet.

Integrated display and keypad for local monitoring and operation.

Dust and oil resistant membrane keypad for industrial environment.

Serial communication interface to match XYCOM VME control platform.

Discontinued product,only for maintenance spare of legacy production systems.

Industrial hardware design for long continuous operation.

Diagnostic

Check PWR and COMM LED;communication failure:check serial wiring,baud rate and station address;data abnormal:inspect serial port hardware and controller communication parameters.

Product Brief

XYCOM 2000 is legacy rack-mounted industrial operator interface panel.

It cooperates with XYCOM VME bus control system for field data display and manual operation,used as spare parts for turbine and petrochemical old control system renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
