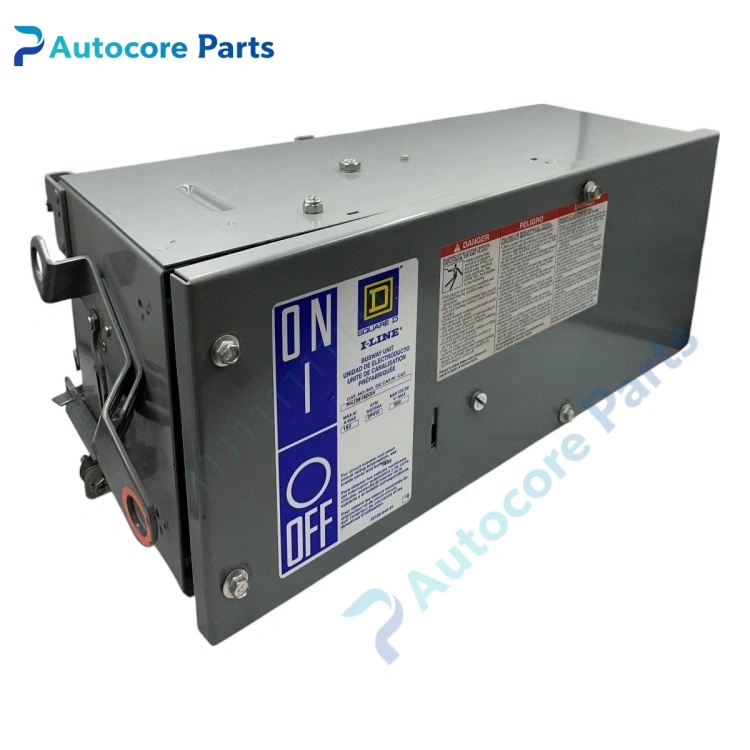

Square D PHJ36150GN I-Line Busway Plug-In Unit

Feature & Principle

This is an I-Line plug-on molded case breaker unit for bus duct. Thermal magnetic trip provides overload and instantaneous short-circuit protection. Quick plug-in mounting without main bus shutdown, integrated ground and neutral connection. Suitable for branch tapping on I-Line busway in industrial power distribution.

Specifications

Model: PHJ36150GN Brand: Square D (Schneider Electric) Series: I-Line Frame: H frame Rated current: 150 A Pole: 3P, 4 wire (with ground & neutral) Rated voltage: 600 V AC Interrupt capacity: 25 kA @600VAC Trip type: Thermal magnetic Mounting: Plug-in for I-Line busway Frequency: 50/60Hz Certification: UL, CE

Components & Diagnostics

MCCB body, thermal magnetic trip assembly, I-Line plug contact block, operating handle, ground terminal. Common faults: plug contact overheating, false tripping, trip unit failure, contact ablation.

Product Brief

PHJ36150GN I-Line busway plug-in breaker, Square D power distribution spare widely used for factory bus duct branch tapping and workshop power distribution overhaul replacement.
