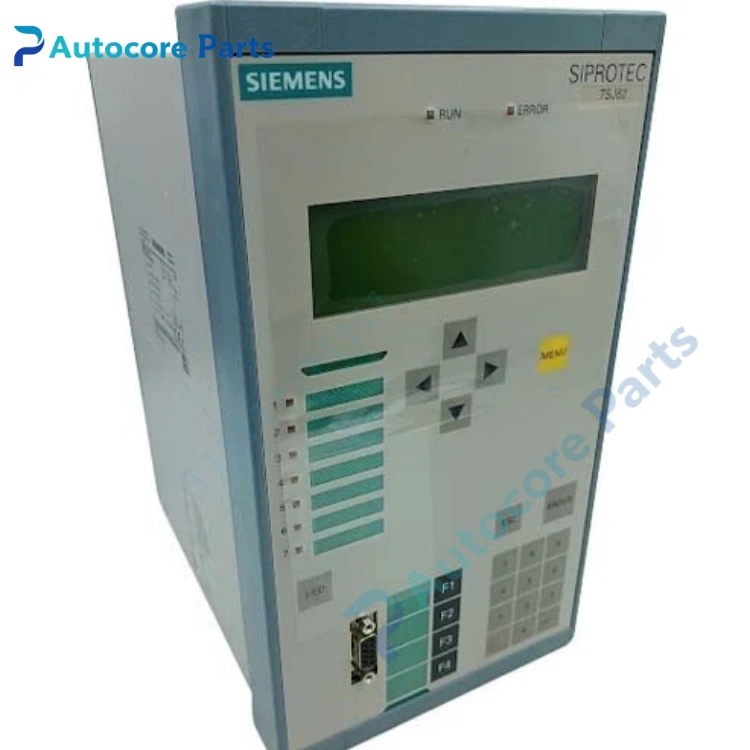

Siemens 7SJ6216-5EB92-1 Protection Relay

Feature & Principle

It is Siemens SIPROTEC 7SJ62 series numerical protection relay. It samples current and voltage signals continuously, executes overcurrent, earth fault, overload and phase unbalance protection algorithms. It can send trip command to circuit breaker when fault occurs, meanwhile record fault event and oscillography data. It supports Modbus, IEC60870-5-103 communication for connecting to SCADA system, with local HMI for parameter setting and status checking.

Specifications

Model: 7SJ6216-5EB92-1 Brand: Siemens Series: SIPROTEC 7SJ62 Function: Overcurrent, earth fault, overload protection Display: Backlit 4×20 character text display Communication: IEC60870-5-103, Modbus RTU Housing: 1/3 19 inch rack mount Application: Medium voltage feeder, motor, transformer protection cabinet Certification: CE, IEC

Components & Diagnostics

Main CPU board, signal acquisition module, relay output board, local display unit, status LED indicators, terminal block. Common faults: signal sampling abnormality, communication interruption, relay contact burnout, parameter loss.

Product Brief

7SJ6216-5EB92-1 multifunction protection relay, Siemens SIPROTEC power protection spare widely used for substation and medium voltage cabinet overhaul and replacement.
