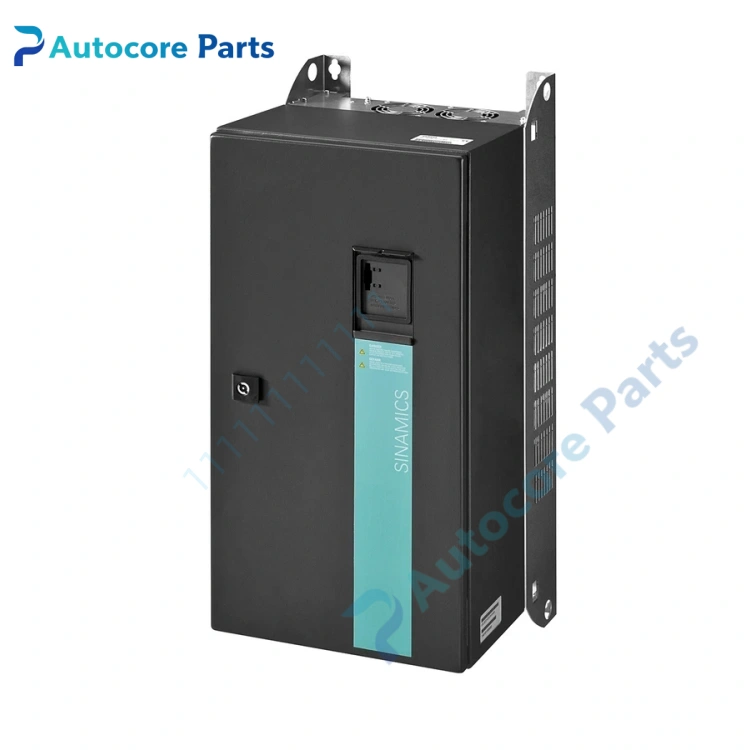

Siemens 6SL3223-0DE34-5AA0 G120P PM230 Drive Module

Feature & Principle

It is the PM230 power module of Siemens SINAMICS G120P series, specially optimized for pumps and fans. Built-in Class A EMC filter to suppress electromagnetic interference. It matches CU230P-2 control unit to realize V/F control, PID constant pressure regulation and sleep wake-up function. IP55 enclosure can be installed on site without control cabinet, suitable for variable torque load energy saving transformation.

Specifications

Model: 6SL3223-0DE34-5AA0 Brand: Siemens Series: SINAMICS G120P PM230 Rated power: 45 kW Input voltage: 3AC 380~480V Rated output current: 70 A Protection class: IP55 / UL Type12 Built-in filter: Class A EMC filter Output frequency: 0~200Hz Matching control unit: CU230P-2 Application: Water pump, fan, HVAC Certification: CE, UL

Components & Diagnostics

IGBT power unit, EMC filter, cooling fan, power terminal block, status indicator, communication socket for control unit. Common faults: fan damage, overheating alarm, output short circuit, filter failure, no communication with control unit.

Product Brief

6SL3223-0DE34-5AA0 G120P power module, Siemens energy-saving drive spare widely used for water treatment, HVAC and industrial fan pump control overhaul and replacement.
