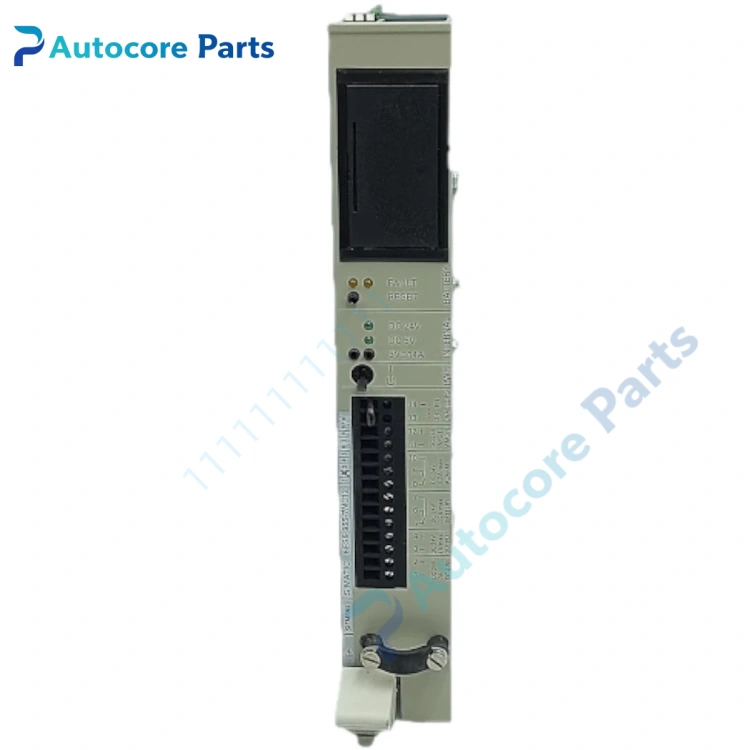

Siemens 6ES5955 Power Supply Module

Feature & Principle

It is Siemens PS955 rack power supply for SIMATIC S5 PLC system. It converts AC mains voltage into stable 5V DC power to supply the backplane for CPU and I/O modules. It adopts forced air cooling with fan monitoring function, built-in overvoltage, overcurrent and short-circuit protection. It supports jumper selection of 115V or 230V AC input. This series has been discontinued, widely used for maintenance of legacy S5 control cabinets.

Specifications

Model: 6ES5955 Brand: Siemens Series: SIMATIC S5, PS955 Input: 115 / 230 VAC selectable Main output: 5VDC Cooling: Fan cooling with fan fault detection Mounting: S5 rack plug-in Protection: Overvoltage, overcurrent, short circuit Application: Old production line, packaging machine, water treatment S5 PLC cabinet Certification: CE, UL

Components & Diagnostics

Rectifier circuit, switching power board, cooling fan, fuse, status LED indicators, backplane connector. Common faults: fan failure, no 5V output, unstable voltage, internal fuse blown.

Product Brief

6ES5955 rack power supply module, Siemens SIMATIC S5 PLC spare widely used for legacy automation cabinet overhaul and replacement.
