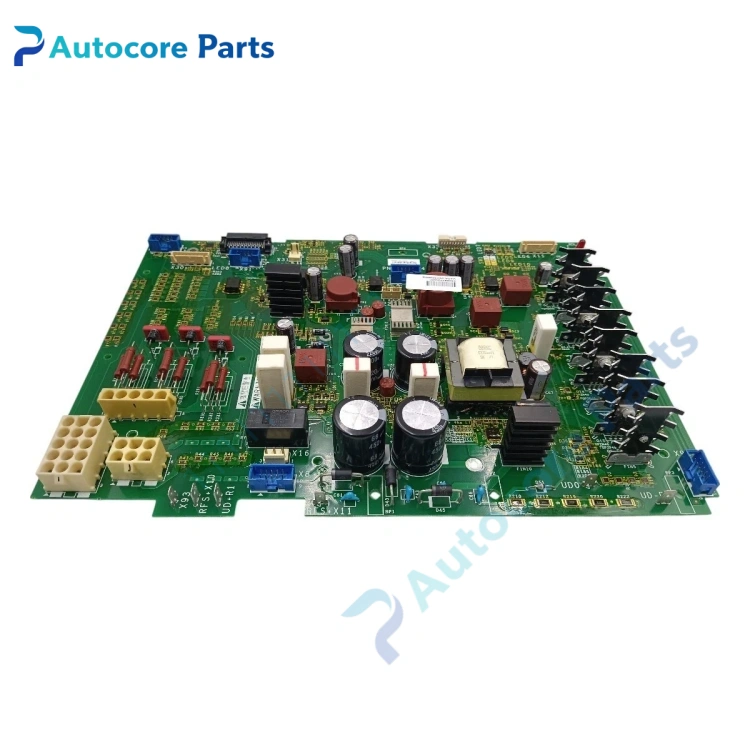

Schneider VX5A1HC2025 Inverter Power Board

Feature & Principle

It is Schneider ATV61 / ATV71 series high-power inverter dedicated power drive board. It converts DC bus voltage into multi-channel isolated power for IGBT drive circuit, provides gate pulse signal and fault detection function. It integrates sampling, rectification, protection circuit, monitors voltage and current status in real time. When overcurrent, short circuit and drive abnormality occur, it quickly triggers protection to avoid IGBT damage. It is a core spare part for 200kW and 250kW models, widely used for maintenance replacement of old frequency converters.

Specifications

Model: VX5A1HC2025 Brand: Schneider Applicable series: ATV61, ATV71 Matching power: 200 kW / 250 kW Function: Power supply, IGBT drive, signal sampling, fault detection Installation: Built-in inverter power unit Protection: Overcurrent, short circuit, undervoltage, drive fault Application: Fan, pump, conveyor high-power speed control cabinet Certification: CE

Components & Diagnostics

High voltage electrolytic capacitor, pulse transformer, drive optocoupler, sampling resistor, power chip, terminal connector, status LED. Common faults: capacitor bulge aging, no drive pulse output, power loss, drive fault alarm.

Product Brief

VX5A1HC2025 power board, Schneider ATV61/ATV71 high-power inverter drive spare widely used for industrial speed control cabinet overhaul and replacement.
