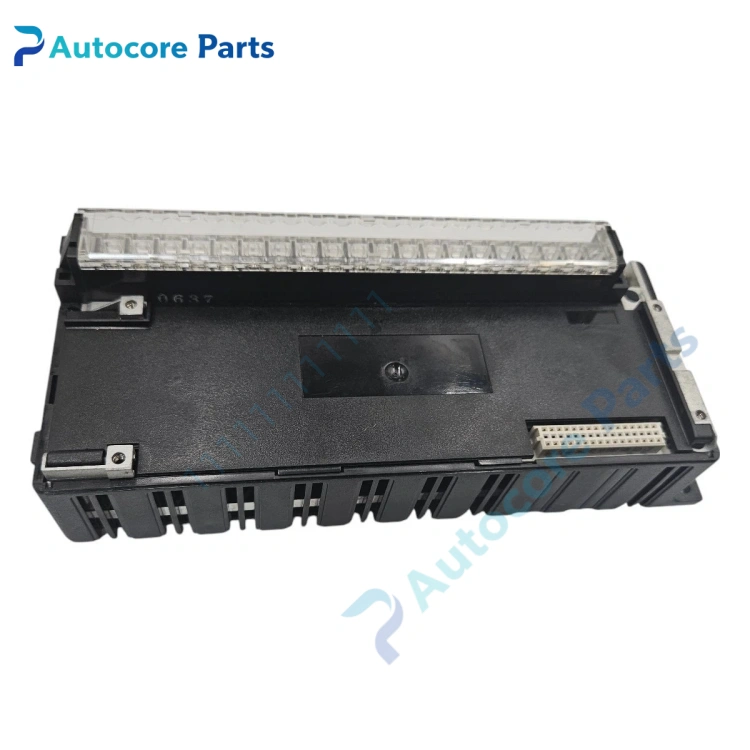

Schneider TBXAMS620 Analog Input Output Module

Feature & Principle

It is an analog I/O expansion module of Schneider TBX distributed I/O series. It collects analog signals from transmitters such as pressure, temperature and flow, and converts them into digital signals uploaded to the main controller. It also receives control commands from PLC and outputs analog signals to drive valves, frequency converters and other field equipment. It connects to the TBX bus to realize distributed signal acquisition in the field.

Specifications

Model: TBXAMS620 Brand: Schneider Electric Channel: 6 analog inputs, 2 analog outputs Signal type: 4-20mA / 0-10V analog signal Weight: 0.7 kg Bus: TBX field bus Mounting: DIN rail installation Power supply: 24VDC Application: Process industry, HVAC, water treatment, factory automation Certification: CE

Components & Diagnostics

Main circuit board, signal isolation circuit, A/D and D/A conversion chip, bus communication interface, terminal block and status LED. Common faults: signal drift, channel no output, bus communication interruption, module no power indication.

Product Brief

TBXAMS620 analog I/O module, Schneider distributed automation spare widely used for water treatment, chemical and HVAC control cabinet maintenance and replacement.
