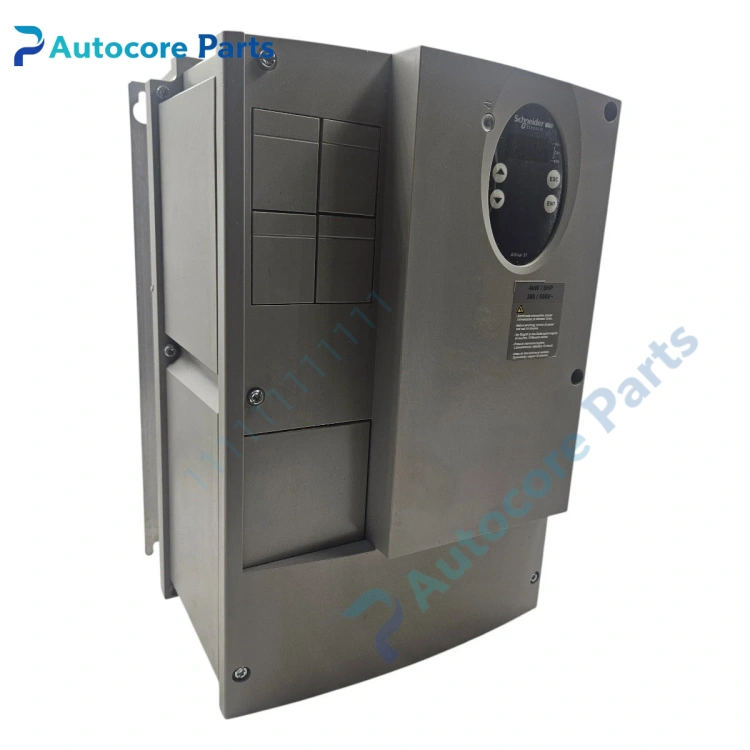

Schneider ATV31CU40N4 VFD

Feature & Principle

It is a cabinet-type enclosed frequency converter of Schneider Altivar 31 series. It converts fixed-frequency AC power into adjustable voltage and frequency output to realize stepless speed regulation of three-phase asynchronous motors. Built-in EMC filter suppresses electromagnetic interference. IP55 enclosure can be installed directly on site without extra control cabinet. It supports basic V/F control and multiple protection functions, suitable for equipment in dusty or humid workshop environments.

Specifications

Model: ATV31CU40N4 Brand: Schneider Series: Altivar 31 Rated motor power: 4 kW (5 HP) Input: 3AC 380~500V Frequency: 50/60Hz Enclosure rating: IP55 EMC filter: Integrated Lifecycle: Discontinued Application: Conveyor, pump, fan, packaging machinery, on-site installation Certification: CE, UL

Components & Diagnostics

IGBT power module, main control board, built-in EMC filter, cooling fan, operation panel, sealed metal enclosure, terminal block. Common faults: no display, overcurrent alarm, overheat trip, fan damage, communication abnormality.

Product Brief

ATV31CU40N4 enclosed inverter, Schneider Altivar 31 motor speed control spare widely used for field equipment overhaul and replacement.
