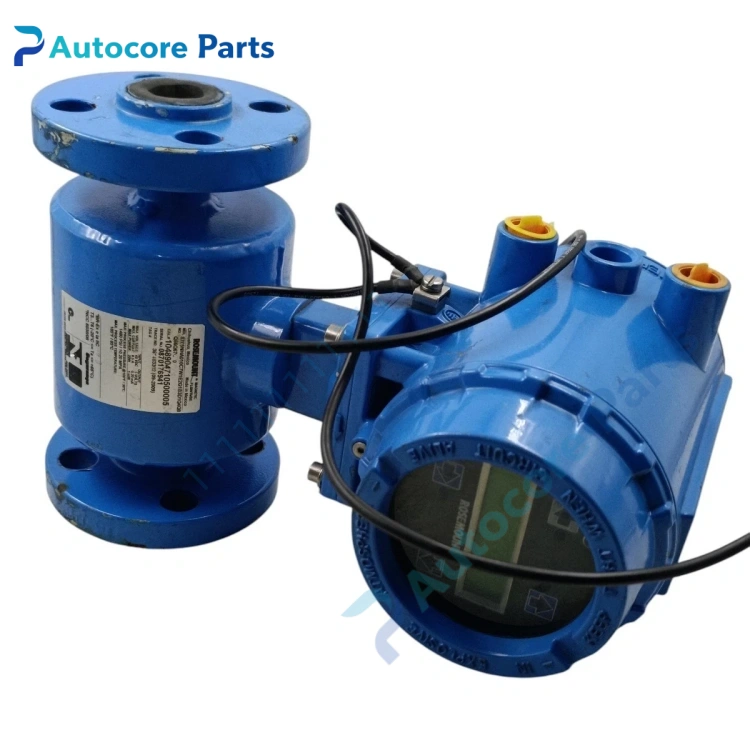

Rosemount 8732EST2B1E2M4D1 Flow Transmitter

Feature & Principle

It is a magnetic flow transmitter based on Faraday's electromagnetic induction law. When conductive liquid flows through the sensor pipe cutting the magnetic field, induced voltage signal is generated. The transmitter captures, amplifies and converts this signal into standard 4-20mA output with digital HART signal. It supports flow totalization, empty pipe detection, electrode fault diagnosis and self-check functions. Suitable for measuring clean or slightly dirty conductive liquids in process pipelines.

Specifications

Model: 8732EST2B1E2M4D1 Brand: Rosemount (Emerson) Series: 8732 Output: 4-20mA, HART Mounting: Integral mount Medium requirement: Conductive liquid Enclosure: Explosion proof housing Display: Local digital display Application: Water treatment, chemical, pulp & paper, food and beverage pipeline flow measurement Certification: CE, FM, ATEX

Components & Diagnostics

Main control PCB, signal conditioning circuit, excitation drive module, HART communication chip, display assembly, explosion proof housing. Common faults: no flow reading, empty pipe alarm, unstable measurement, communication loss, excitation failure.

Product Brief

8732EST2B1E2M4D1 magnetic flow transmitter, Emerson Rosemount process flow spare widely used for industrial pipeline flow system overhaul and replacement.
