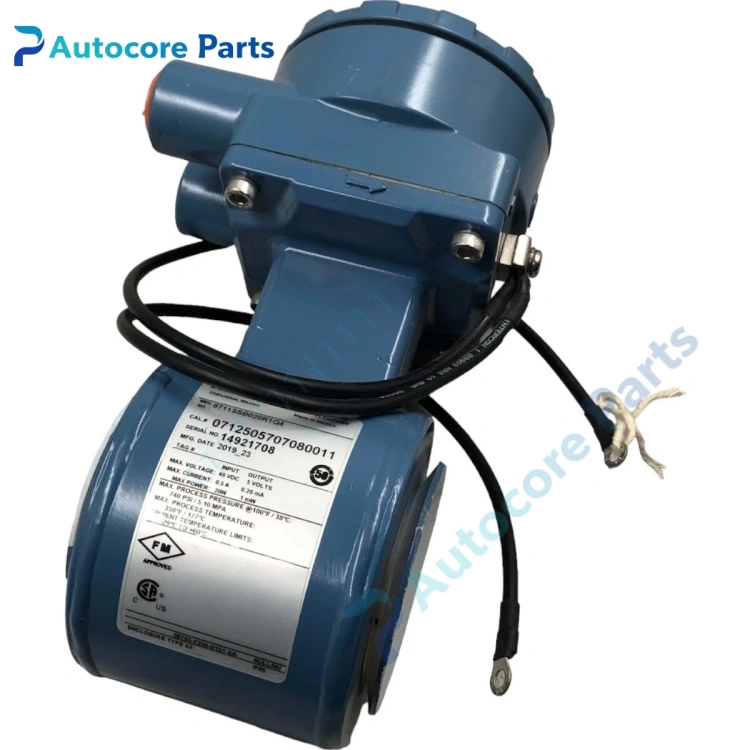

Rosemount 8711SSB020R1Q4 Magnetic Flow Meter

Feature & Principle

It is Rosemount 8711 wafer electromagnetic flow sensor. It works on Faraday electromagnetic induction principle. When conductive liquid passes through the measuring pipe, induced voltage signal is generated and sent to the transmitter for flow calculation. Flangeless wafer design saves installation space and cost. Multiple liner and electrode materials are optional for corrosive liquid, sewage and slurry. It has no internal moving parts, low pressure loss and long service life.

Specifications

Model: 8711SSB020R1Q4 Brand: Rosemount (Emerson) Series: 8711 Type: Wafer electromagnetic flow sensor Size: DN50 (2 inch) Liner: PTFE / ETFE optional Electrode: 316L stainless steel Output: Cooperate with 8732E transmitter for 4-20mA, HART Ingress protection: IP67 Accuracy: ±0.25% Certification: ATEX, IECEx, SIL optional Application: Sewage treatment, chemical, pulp slurry, conductive liquid pipeline

Components & Diagnostics

Sensor tube, insulating liner, measuring electrode, signal cable terminal housing, alignment spacer. Common faults: electrode scaling, liner damage, signal loss, unstable flow reading.

Product Brief

8711SSB020R1Q4 electromagnetic flow sensor, Rosemount 8711 wafer type flow measuring spare widely used for sewage and chemical pipeline overhaul and replacement.
