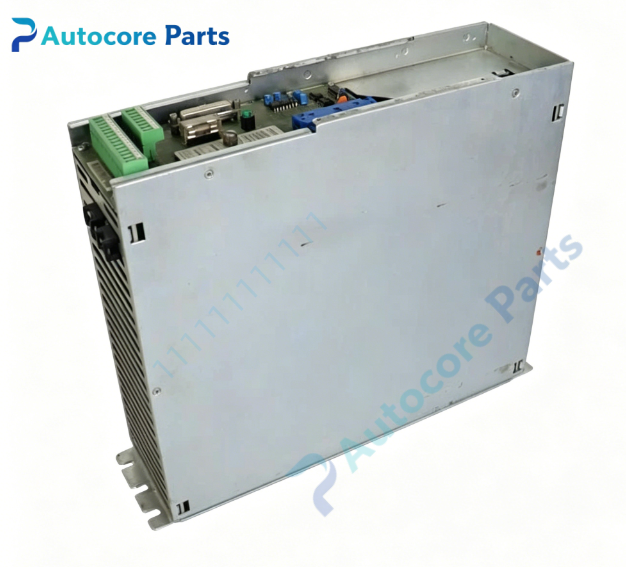

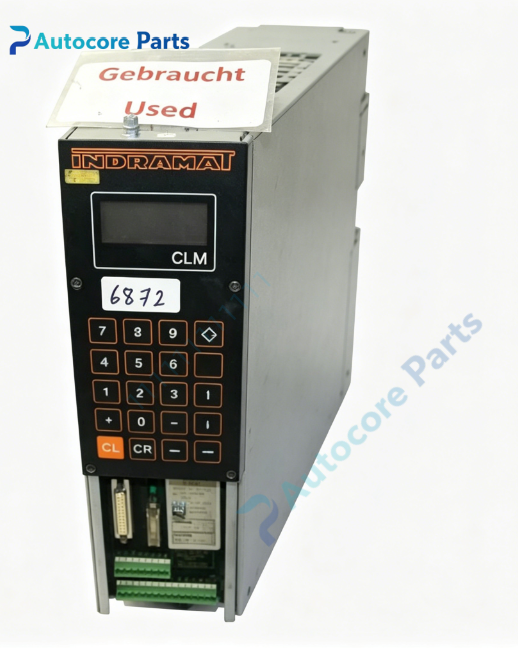

Rexroth CLM01.2-X Axis Positioning Control Module Spare Part

Technical Specifications

Model:CLM01.2-X

Brand:Rexroth

Part No:R911220105

Product type:axis positioning control module

Input voltage:24V DC control power

Dimension:95mm170mm225mm

Weight:1.40kg

Communication:encoder feedback interface,digital I/O,serial communication port

Mounting:Cabinet panel mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

LED indicators:Power,Run,Error,Axis status

System compatibility

CLM01.2-X belongs to Rexroth Indramat CLM positioning control family,compatible with Indramat servo drives and servo motors,widely used in packaging machinery,robotics,textile machines and material handling equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

CLM01.2-X is a microprocessor-based positioning control module for servo axis positioning tasks.It supports homing,programmable incremental and absolute positioning,travel limit monitoring,brake control and enable signal management.It reads encoder position feedback and executes closed-loop position and speed control for servo axes,can run user programs directly without separate PLC.

Installation

Mount CLM01.2-X inside electrical cabinet.Fix the module securely.Connect 24V DC power,digital I/O wiring,encoder cable and servo drive control cable according to wiring diagram.Check wiring terminals and cable shielding before power-on commissioning.

Interface

‑24V DC power terminal

‑Encoder feedback input port

‑Digital input and output terminal block

‑Serial communication port

‑Shield grounding terminal

Circuit feature

High-speed position calculation circuit,built-in signal isolation and surge suppression circuit,encoder signal processing circuit,non-volatile memory for user program storage,strong anti-interference for precise axis positioning.

Feature

CLM01.2-X is obsolete Rexroth spare part.Typical faults:encoder input circuit damage,parameter memory loss,main control chip failure,digital I/O port burnout,power circuit fault.Inspect encoder signal and I/O logic before replacement.Parameter backup is required before disassembly.

Diagnostic

When module fails,Power LED on,Run LED off,Error LED lit,axis positioning deviation,encoder signal loss,axis cannot home,digital I/O no response,positioning program cannot execute.

Built‑in function:Axis closed-loop positioning control,homing routine,programmable motion sequence,limit monitoring,brake and enable control,user program storage,used as Rexroth Indramat servo positioning system spare replacement.

Product Brief

CLM01.2-X is Rexroth Indramat CLM series axis positioning control module for servo positioning applications,works with matching Indramat servo drives and motors.Verify axis configuration and program compatibility before ordering.ESD protection required during handling and installation.
