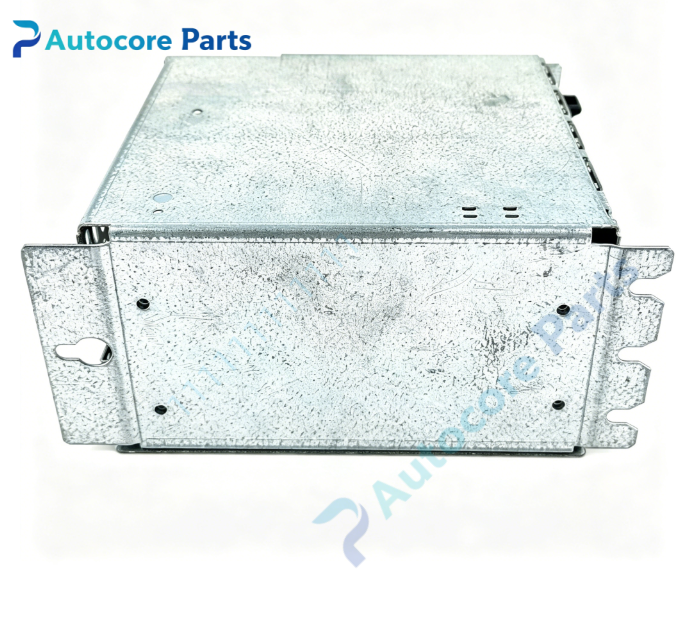

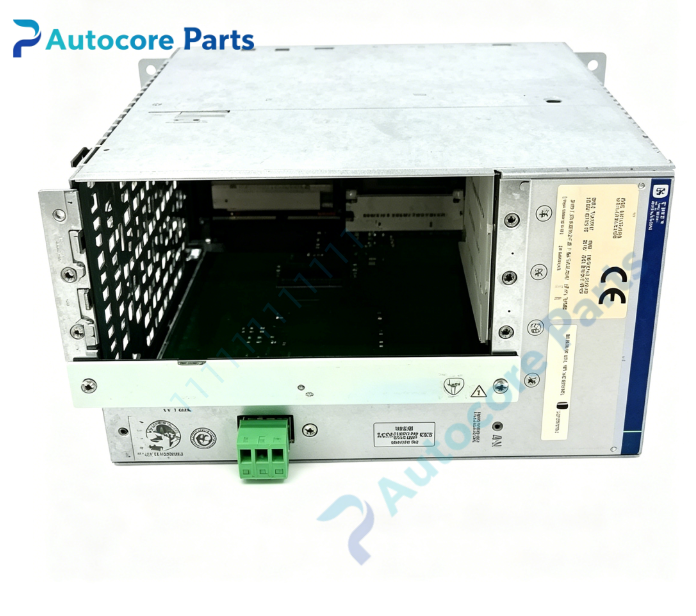

Rexroth CCD01.1-KE20-01-FW Motion Controller Rack Spare Part

Technical Specifications

Model:CCD01.1-KE20-01-FW

Brand:Rexroth

Part No:R911284232

Product type:motion controller rack assembly with preloaded firmware,built-in CLC and DAQ series cards

Input voltage:24V DC

Dimension:105mm190mm210mm

Weight:2.00kg

Communication:SERCOS III,10/100 Base-T Ethernet,2×RJ45

Card slots:multi slots for CLC series plug-in control cards

Mounting:Cabinet panel mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

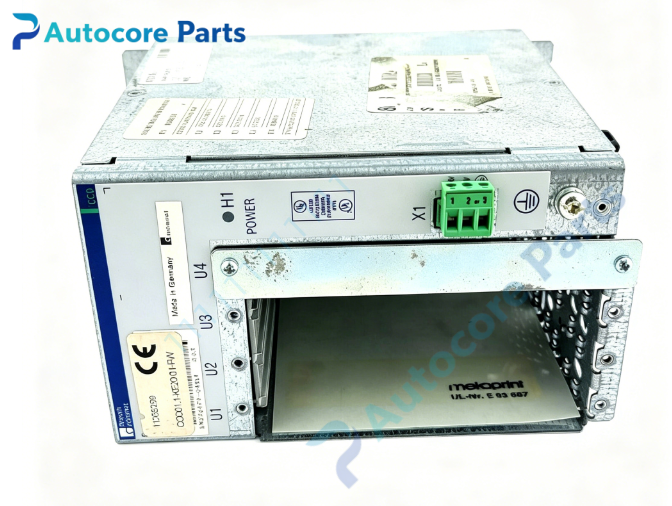

LED indicators:H1 power LED;H10/H12 data transmit;H11/H13 link status

System compatibility

CCD01.1-KE20-01-FW belongs to Rexroth Indramat CCD motion controller family,compatible with CLC and DAQ series plug-in cards,matched with Indramat multi-axis servo drive systems,widely used in packaging machinery,robotics,textile machines and material handling equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

CCD01.1-KE20-01-FW is a fully pre-configured rack unit with factory dedicated firmware,equipped with motion command card and data acquisition cards.It provides backplane bus connection and power supply for plug-in modules,realizes multi-axis coordinated motion control,cam function,analog signal collection and logic processing via SERCOS III Ethernet bus.It executes motion programs,axis synchronization and safety interlock,transmits real-time position and analog status data between controller and servo drives.The FW suffix represents factory preloaded firmware version,KE20 stands for this special pre-assembled card configuration.

Installation

Mount CCD01.1-KE20-01-FW inside electrical cabinet.Fix the rack firmly,check all pre-installed cards are locked securely.Connect 24V DC power and CAT5 Ethernet cables according to wiring diagram.Check bus contact and cable shielding before power-on commissioning.

Interface

‑24V DC COMM power terminal

‑Dual RJ45 SERCOS III Ethernet port

‑Internal backplane card slot connector

‑Shield grounding terminal

Circuit feature

High-speed backplane bus architecture,built-in bus signal isolation and surge suppression circuit,real-time SERCOS communication circuit,analog sampling circuit for DAQ cards,strong anti-interference,stable synchronous motion transmission for multi-axis application.

Feature

CCD01.1-KE20-01-FW is obsolete Rexroth spare part.Typical faults:backplane bus damage,slot contact oxidation,Ethernet port failure,power circuit burnout,DAQ signal sampling failure.Inspect backplane bus,SERCOS communication and analog acquisition function before replacement.This rack must match compatible CLC/DAQ control cards,direct substitution without inspection is not recommended.

Diagnostic

When rack fails,power LED off,SERCOS link cannot establish,all inserted control cards fail to initialize,multi-axis communication timeout alarm,loss of analog input signals.

Built‑in function:Backplane power supply,multi-card bus expansion,SERCOS III real-time Ethernet communication,multi-axis motion coordination,cam control,analog data acquisition,factory preloaded firmware operation,used as Rexroth Indramat motion control system spare replacement.

Product Brief

CCD01.1-KE20-01-FW is Rexroth Indramat CCD series motion control rack pre-assembled with CLC and DAQ cards and pre-installed firmware,supporting CLC/DAQ card modules and SERCOS III bus.Verify compatible card models and bus configuration before ordering.ESD protection required during handling and installation.
