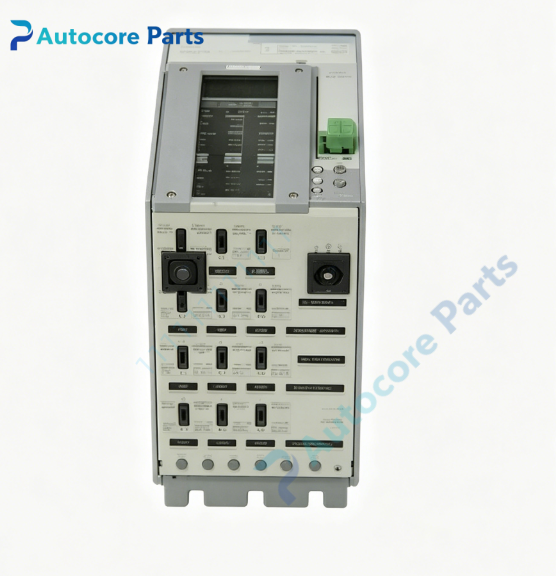

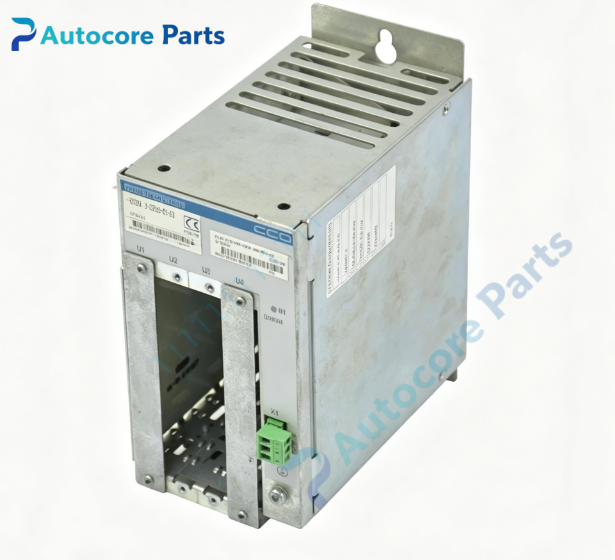

Rexroth CCD01.1-KE08-01-FW Indramat CCD Motion Controller Rack Spare Part

Technical Specifications

Model:CCD01.1-KE08-01-FW

Brand:Rexroth

Product type:4-slot motion controller rack assembly with preloaded firmware and CLC-D02.3 control card

Input voltage:24V DC

Dimension:105mm190mm210mm

Weight:2.8kg

Communication:SERCOS III,10/100 Base-T Ethernet,2×RJ45

Card slots:4 slots for CLC series plug-in control cards

Mounting:Cabinet panel mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

LED indicators:H1 power LED;H10/H12 data transmit;H11/H13 link status

System compatibility

CCD01.1-KE08-01-FW belongs to Rexroth Indramat CCD motion controller family,compatible with CLC series control cards,matched with Indramat multi-axis servo drive systems,widely used in handling machines,robotics and automated production lines.This is a legacy spare part for industrial equipment maintenance replacement.

Function

CCD01.1-KE08-01-FW is a pre-configured rack unit equipped with factory dedicated firmware and CLC-D02.3 motion control card.It provides backplane bus connection and power supply for up to 4 control cards,realizes multi-axis coordinated motion control and logic processing via SERCOS III Ethernet bus.It executes motion programming,axis synchronization,cam function and safety interlock,transmits real-time position and status data between controller and servo drives.The FW suffix represents factory preloaded firmware version,KE08 stands for special factory hardware and firmware configuration.

Installation

Mount CCD01.1-KE08-01-FW inside electrical cabinet.Fix the rack firmly.Insert CLC cards into designated slots and lock the screws.Connect 24V DC power and CAT5 Ethernet cables according to wiring diagram.Check bus contact and cable shielding before power-on commissioning.

Interface

‑24V DC COMM power terminal

‑Dual RJ45 SERCOS III Ethernet port

‑Internal backplane card slot connector

‑Shield grounding terminal

Circuit feature

High-speed backplane bus architecture,built-in bus signal isolation and surge suppression circuit,real-time SERCOS communication circuit,strong anti-interference,stable synchronous motion transmission for multi-axis application.

Feature

CCD01.1-KE08-01-FW is obsolete Rexroth spare part.Typical faults:backplane bus damage,slot contact oxidation,Ethernet port failure,power circuit burnout.Inspect backplane bus and SERCOS communication before replacement.This rack must match compatible CLC control cards,direct substitution without inspection is not recommended.

Diagnostic

When rack fails,power LED off,SERCOS link cannot establish,all inserted control cards fail to initialize,multi-axis communication timeout alarm.

Built‑in function:Backplane power supply,multi-card bus expansion,SERCOS III real-time Ethernet communication,multi-axis motion coordination,cam control and logic operation,factory preloaded firmware operation,used as Rexroth Indramat motion control system spare replacement.

Product Brief

CCD01.1-KE08-01-FW is Rexroth Indramat CCD series 4-slot motion control rack with factory configured CLC-D02.3 card and pre-installed firmware,supporting CLC card modules and SERCOS III bus.Verify compatible CLC card models and bus configuration before ordering.ESD protection required during handling and installation.
