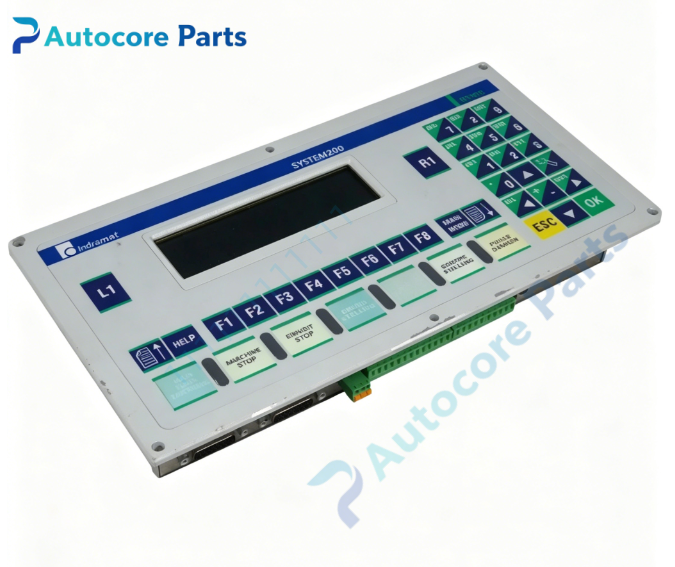

Rexroth BTV05.2HN-RS-FW Miniature Operator Control Panel Spare Part

Technical Specifications

Model:BTV05.2HN-RS-FW

Brand:Rexroth

Product type:Miniature operator control HMI panel

Power supply:24V DC

Display:Graphic LCD,256×64 pixel

Keyboard:Standard integrated membrane keypad

Communication interface:RS485 serial bus

Weight:1.6kg

Mounting:Panel cutout mounting

Front protection:IP65

Rear housing protection:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

BTV05.2HN-RS-FW belongs to Rexroth Indramat BTV05 compact operator panel family,matching Indramat System200 motion control and CNC systems,widely used for small CNC machines,handling and automation equipment local operation.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV05.2HN-RS-FW is a compact machine operator panel with graphic LCD and standard keypad.It supports manual axis jog,mode switching,parameter setup,program simple editing,machine status and alarm message display.It communicates with main controller via RS485 serial bus to transmit operation commands and real-time machine data.Firmware is factory assigned and needs separate ordering.

Installation

Install BTV05.2HN-RS-FW on cabinet panel cutout.Tighten mounting clamps.Connect 24V DC power and RS485 communication cable according to wiring diagram.Check bus shielding and connector contact before power-on commissioning.

Interface

‑24V DC power terminal

‑RS485 serial communication port

‑Keypad internal signal terminal

‑Shield grounding terminal

Circuit feature

Built-in graphic display driver and keyboard scanning circuit,optocoupler isolation for serial communication,strong anti-interference,stable RS485 data transmission,suitable for compact machine cabinet installation.

Feature

BTV05.2HN-RS-FW is obsolete Rexroth spare part.Typical faults:LCD display failure,membrane keypad aging,RS485 communication port damage,internal power circuit fault.Inspect display function and serial communication before replacement.This panel must match original Indramat system firmware,direct substitution without inspection is not recommended.

Diagnostic

When panel fails,LCD screen no display,keypad input invalid,system triggers RS485 communication timeout alarm.

Built‑in function:Manual axis jogging,parameter configuration,machine status and alarm display,simple program operation,used as Rexroth Indramat motion control system spare replacement.

Product Brief

BTV05.2HN-RS-FW is Rexroth Indramat BTV05 series miniature graphic operator panel with RS485 interface.Verify system firmware and serial bus configuration before ordering.ESD protection required during handling and installation.
