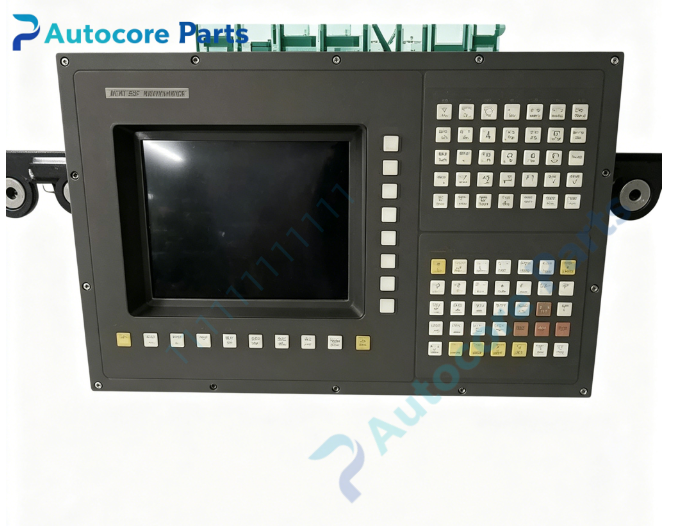

Rexroth BTV01.1AA-08N-25C-AB-NN/MD-DE CNC Visualization Terminal Spare Part

Technical Specifications

Model:BTV01.1AA-08N-25C-AB-NN/MD-DE

Brand:Rexroth

Product type:CNC visualization HMI terminal

Input voltage:380~480VAC,45~65Hz

Keyboard:Full NC keyboard,70 keys (10 function keys,8 machine function keys)

Weight:8.0kg

Mounting:Panel cutout mounting

Front panel protection:IP65

Rear housing protection:IP20

Operating temperature:+5~+45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max operation altitude:1500m

Certification:CE

System compatibility

BTV01.1AA-08N-25C-AB-NN/MD-DE belongs to Rexroth Indramat BTV01 visualization terminal family,matching Indramat System200 CNC and motion control systems,widely used for CNC machine tools and heavy processing equipment operator interface.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV01.1AA-08N-25C-AB-NN/MD-DE is an integrated CNC machine visualization and operation terminal.It integrates display unit and full NC keyboard for CNC program editing,axis jog,mode selection,parameter setup,spindle/feed override adjustment and machine status monitoring.It communicates with main CNC controller via dedicated bus to exchange machine commands,real-time axis data and alarm messages.

Installation

Install BTV01.1AA-08N-25C-AB-NN/MD-DE on cabinet panel cutout.Tighten mounting fixtures.Connect 380~480VAC power and control communication cable according to wiring diagram.Check cable shielding and connection tightness before power-on commissioning.

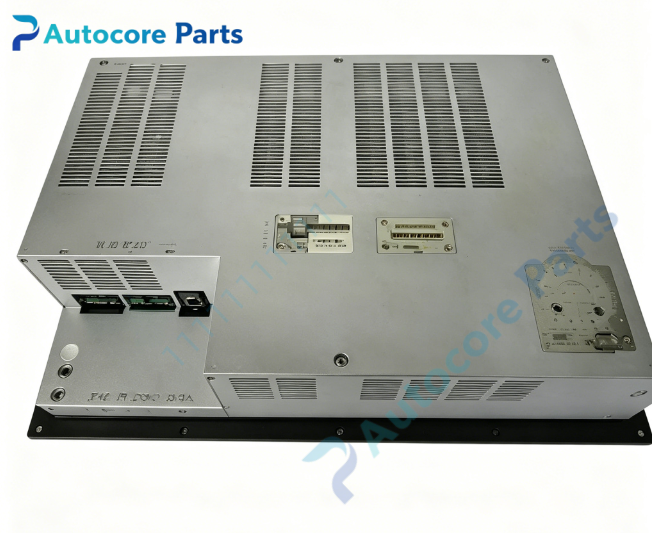

Interface

‑AC power input terminal

‑CNC system dedicated communication port

‑Keyboard internal signal terminal

‑Shield grounding terminal

Circuit feature

Integrated display drive circuit and keyboard scanning circuit,powder coated RAL8019 brown-grey front panel,stable serial bus communication,strong anti-interference,suitable for harsh machine workshop environment.

Feature

BTV01.1AA-08N-25C-AB-NN/MD-DE is obsolete Rexroth spare part.Typical faults:display screen failure,key contact aging,communication port damage,power supply circuit breakdown.Inspect display function and communication link before replacement.This visualization terminal must match original Indramat CNC system firmware,direct substitution without inspection is not recommended.

Diagnostic

When terminal fails,CNC operation panel display blank,keyboard input invalid,system triggers HMI communication timeout alarm.

Built‑in function:CNC program editing,manual axis jogging,parameter configuration,machine status & alarm display,production operation control,used as Rexroth Indramat CNC system spare replacement.

Product Brief

BTV01.1AA-08N-25C-AB-NN/MD-DE is Rexroth Indramat BTV01 series CNC visualization HMI terminal with full 70-key NC keyboard.Verify CNC system firmware and communication protocol before ordering.ESD protection required during handling and installation.
