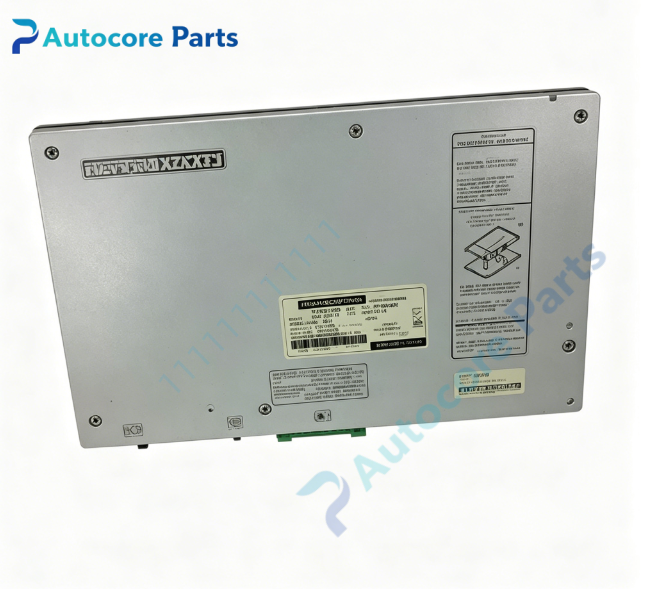

Rexroth BTM1.01/00 Operator Control Panel Spare Part

Technical Specifications

Model:BTM1.01/00

Brand:Rexroth

Product type:Machine local operator control panel

Power supply:24V DC

Weight:2.0kg

Mounting:Panel mounting

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Protection class:IP54

Certification:CE

System compatibility

BTM1.01/00 belongs to Rexroth Indramat BTM operator panel family,matching Indramat System200 motion control systems,widely applied in CNC machine tools,press equipment and automated production lines.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTM1.01/00 is a machine-mounted local operator panel.It provides on-site operation interface for machine operators,including axis jog,program start/stop,override adjustment and machine status display.It is equipped with emergency stop button for local safety interlock.It communicates with main controller via dedicated serial bus to transmit operation commands and real-time machine alarm information.

Installation

Mount BTM1.01/00 on machine cabinet door or local operation station.Connect 24VDC power and communication cable according to wiring diagram.Check cable shielding and E-stop circuit continuity before power-on commissioning.

Interface

‑24V DC power terminal

‑Serial communication port

‑Digital input/output for safety interlock

‑Shield grounding terminal

Circuit feature

Built-in signal processing circuit,safety E-stop hardwired circuit,good noise suppression,stable serial communication,strong anti-interference,suitable for harsh workshop industrial environment.

Feature

BTM1.01/00 is obsolete Rexroth spare part.Typical faults:keypad damage,display failure,serial communication error,emergency stop switch aging.Inspect display and safety interlock circuit before replacement.This operator panel must match original Indramat control system firmware,direct substitution without inspection is not recommended.

Diagnostic

When panel fails,the local operation function is disabled,system triggers communication alarm or safety E-stop interlock.

Built‑in function:Local machine operation,axis jog control,status and alarm display,emergency stop safety interlock,used as Rexroth Indramat motion control system spare replacement.

Product Brief

BTM1.01/00 is Rexroth Indramat BTM series local operator panel with emergency stop for machine on-site operation.Verify system firmware and communication protocol before ordering.ESD protection required during handling and installation.
