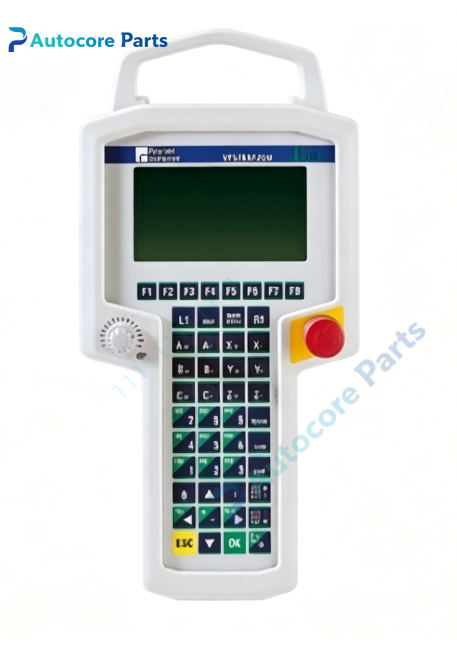

Rexroth BTC06.2A-F-EP3-FW Handheld Teach Pendant Spare Part

Technical Specifications

Model:BTC06.2A-F-EP3-FW

Brand:Rexroth

Product type:Handheld manual teach pendant

Part No:R911285856

Power supply:24V DC,max 400mA

Display:LCD 240×128 pixel

Keyboard:48 keys polyester film keypad

Communication interface:RS232C,RS422A,RS485

Dimension:315mm180mm57mm

Weight:1.3kg

Enclosure:Polycarbonate housing

Safety component:Emergency stop button,dual-circuit enable activate button

Operating temperature:0~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Protection class:IP65

Certification:CE

System compatibility

BTC06.2A-F-EP3-FW belongs to Rexroth Indramat BTC06 teach pendant family,matching Indramat System200 motion control systems,widely used for CNC machine tools,handling equipment and automated assembly line manual debugging.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTC06.2A-F-EP3-FW is a portable handheld manual control unit.It is used for on-site manual jogging,axis positioning,parameter setting and program test during machine commissioning.It communicates with main controller via serial port to send jog commands and display axis status and alarm information.This version is equipped with emergency stop button and dual-circuit enable switch for safe operation.

Installation

Connect BTC06.2A-F-EP3-FW to control system via dedicated serial cable.Connect 24VDC power supply according to wiring diagram.Check cable locking and shielding before power-on commissioning.

Interface

‑24V DC power terminal

‑Serial communication port RS232C / RS422 / RS485

‑Keypad & LCD display port

‑Shield grounding terminal

Circuit feature

Built-in 68000 microcontroller,1MB flash memory,256KB SRAM,impact resistant polycarbonate shell,stable serial communication,strong anti-interference,suitable for harsh workshop industrial environment.

Feature

BTC06.2A-F-EP3-FW is obsolete Rexroth spare part.Typical faults:LCD screen damage,keypad failure,serial port communication error,cable aging,emergency stop switch failure.Inspect display and serial communication before replacement.This teach pendant must match original Indramat control system firmware,direct substitution without inspection is not recommended.

Diagnostic

When pendant fails,the system cannot receive manual jog command,display screen blank or serial communication timeout alarm,safety interlock triggered if E-stop circuit damaged.

Built‑in function:Manual axis jogging,parameter configuration,machine on-site debugging,status display,safety emergency stop control,used as Rexroth Indramat motion control system spare replacement.

Product Brief

BTC06.2A-F-EP3-FW is Rexroth Indramat BTC06 series handheld teach pendant with emergency stop and enable button for machine manual commissioning.Verify system firmware and communication protocol before ordering.ESD protection required during handling and installation.
