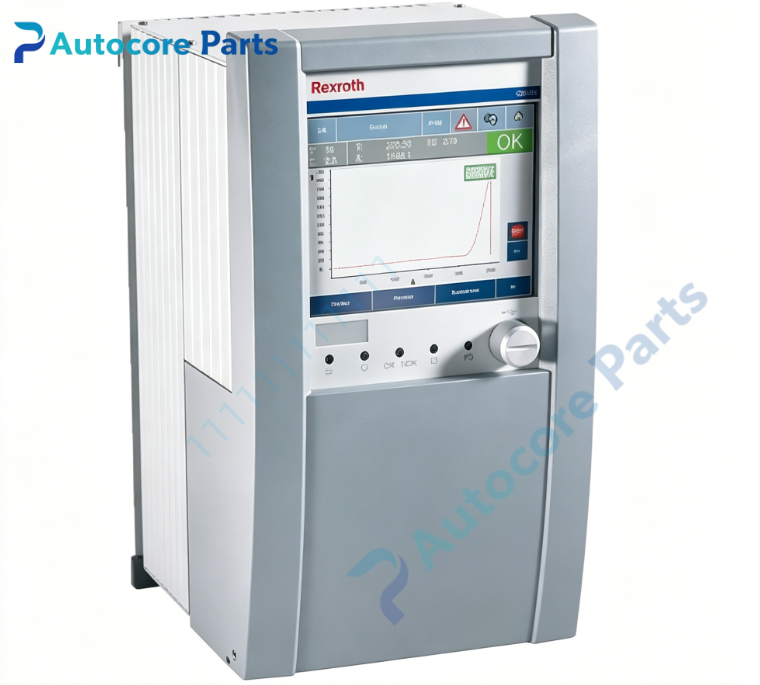

Rexroth 6088016 Spare Part

Technical Specifications

Model:6088016

Brand:Rexroth

Product type:Tightening system spare component

Power supply:24 Vdc,19.2~28.8V tolerance

Control function:Signal transmission,data feedback,hardware self-diagnosis,fault indication

Communication:Internal system bus

Mounting:Plug-in installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.26kg

Dimension:180mm72mm30mm

Certification:CE

Protection class:IP20

System compatibility

6088016 belongs to Rexroth tightening servo system family,matched with servo spindle and controller units.Widely applied in automobile assembly tightening workstation.This is a discontinued legacy spare part for equipment maintenance spare replacement.

Function

6088016 serves as Rexroth tightening system auxiliary component.It realizes signal transmission and torque/angle feedback between tightening spindle and controller.It transmits real-time working data and fault alarm information to main control unit.It acts as key auxiliary component to guarantee stable torque closed-loop control for tightening system.

Installation

Install 6088016 in designated position and lock the fasteners.Complete signal wiring according to wiring drawing.Check 24V power polarity and equipment grounding before power-on.

Interface

‑24Vdc power input terminal

‑Signal terminal block

‑Internal bus connector

‑Status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,signal isolation design,strong anti-interference performance for workshop industrial environment.

Feature

6088016 is obsolete Rexroth series spare part.Typical failures include unstable signal reading,data interruption,connector oxidation.Check circuit and connector pins before replacement.This component must match corresponding Rexroth tightening servo system,direct substitution without inspection is not recommended.

Diagnostic

When signal attenuation,data loss or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Torque and angle signal transmission,feedback data collection,status monitoring,self-diagnosis and fault alarm,used as Rexroth tightening servo system spare replacement.

Product Brief

6088016 is Rexroth old industrial spare component for servo tightening assembly workstation.Confirm compatibility with corresponding tightening controller and spindle before ordering.ESD protection required during handling and installation.
