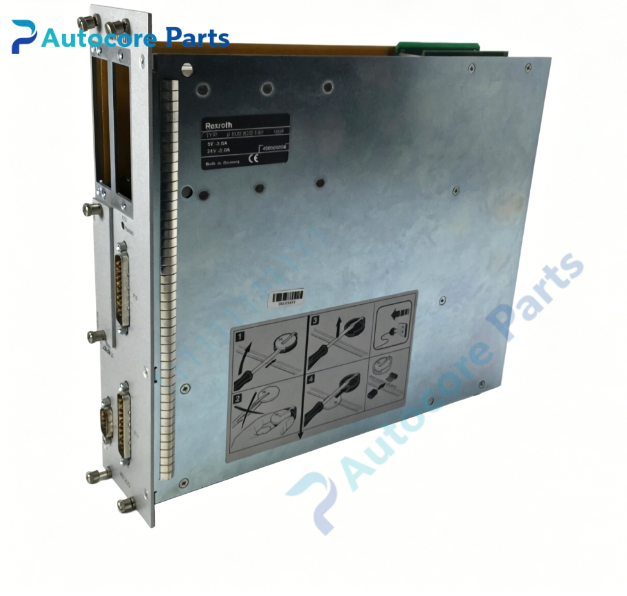

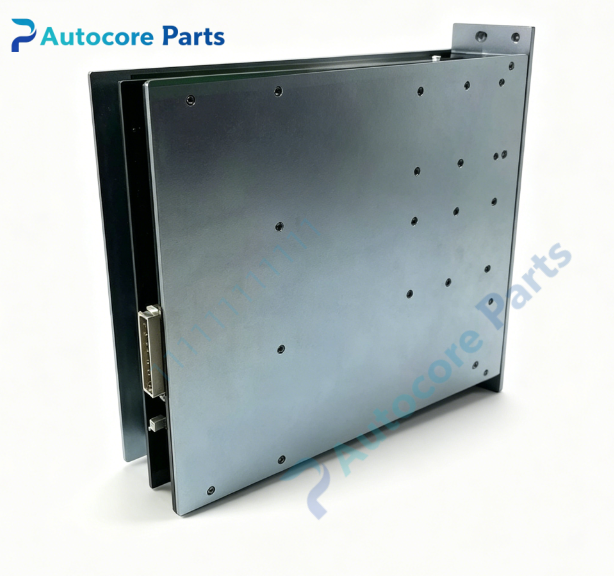

Rexroth 608-830162 KE300 Communication Unit Spare Part

Technical Specifications

Model:608-830162

Brand:Rexroth

Product type:KE300 communication & central control unit

Output1:5V DC,3.0A

Output2:24V DC,2.0A

Mounting:DIN rail mounting

Weight:1.0kg

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Protection class:IP20

Certification:CE

System compatibility

608-830162 belongs to Rexroth KE300 series communication unit family,widely matched with Rexroth tightening control systems,applied in automobile assembly,workstation tightening machines and automated production lines.This is a legacy spare part for industrial equipment maintenance replacement.

Function

608-830162 KE300 unit integrates communication interface and power supply function.It realizes data transmission,signal interaction and command exchange between host controller and tightening axes.It provides stable 5V and 24V power for peripheral modules,collects running status signals and uploads data to upper system to complete closed-loop tightening control.

Installation

Mount 608-830162 on standard DIN rail inside control cabinet,tighten fixing buckle.Connect power cable and bus communication cable according to wiring diagram.Check terminal connection and grounding before power-on commissioning.

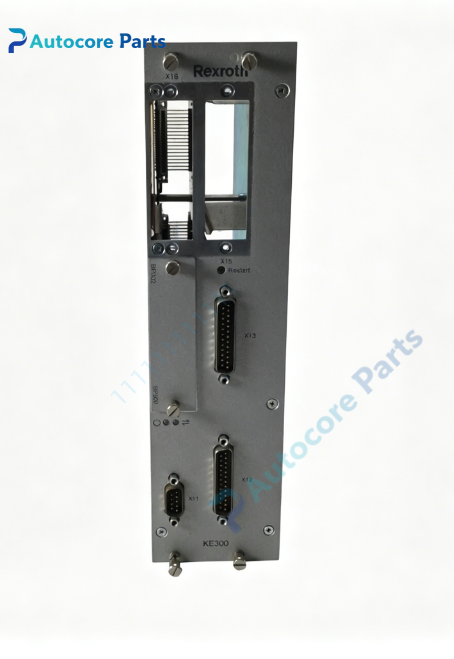

Interface

‑24V main power input terminal

‑5V / 24V power output terminals

‑Fieldbus communication port

‑Digital signal I/O terminal block

Circuit feature

Integrated power and communication circuit design,built-in over-current,over-voltage and short-circuit protection,stable data transmission,strong anti-interference,suitable for workshop industrial environment.

Feature

608-830162 is obsolete Rexroth spare part.Typical faults:bus communication failure,power output no voltage,circuit burnout,port damage.Inspect power output and bus signal before replacement.This unit must match original tightening control system protocol,direct substitution without inspection is not recommended.

Diagnostic

When power failure or communication interruption occurs,the tightening axis cannot receive control commands,the system will trigger communication alarm and stop tightening operation.

Built‑in function:Bus data communication,peripheral power supply,signal collection and transmission,tightening system central control,used as Rexroth automation system spare replacement.

Product Brief

608-830162 is Rexroth KE300 communication unit with dual power output,specially used for Rexroth tightening assembly systems.Verify bus protocol and power requirement before ordering.ESD protection required during handling and installation.
