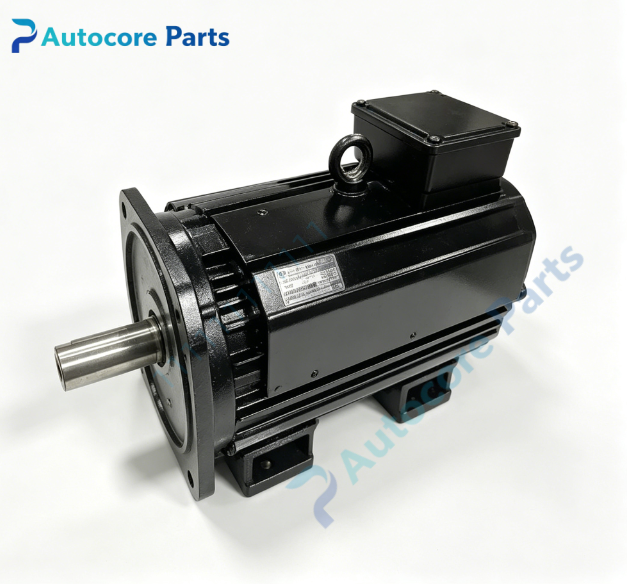

Rexroth 2AD160B-B350B1-BS01/S007 Spare Part

Technical Specifications

Model:2AD160B-B350B1-BS01/S007

Brand:Rexroth

Product type:Indramat 2AD series three-phase asynchronous spindle motor

Rated power:37kW

Rated speed:3500rpm,max speed 6000rpm

Rated voltage:400V 3-phase

Cooling method:Axial blower forced cooling

Insulation class:F class

Feedback:Digital encoder feedback

Brake:With electromagnetic holding brake

Control function:High precision speed & torque control,winding temperature monitoring,power-off shaft locking,rotor position feedback

Communication:Encoder differential signal transmission to servo drive

Mounting:Flange and foot mounting

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:118kg

Dimension:475mm320mm320mm

Certification:CE

Protection class:IP65

System compatibility

2AD160B-B350B1-BS01/S007 belongs to Rexroth Indramat 2AD spindle motor family,matched with IndraDrive series spindle servo drives.Widely applied in CNC machining center,milling machine and automation production lines.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

2AD160B-B350B1-BS01/S007 is Rexroth Indramat AC asynchronous spindle motor.It converts three-phase electric energy into rotary mechanical power for machine tool spindle cutting processing.The digital encoder feeds back real-time rotor speed and position signal to servo drive for closed-loop speed control.The built-in electromagnetic holding brake locks the shaft when power fails to prevent spindle rotation.The built-in temperature sensor monitors winding temperature continuously for overload protection.It adopts forced axial blower cooling structure to ensure stable continuous high-speed operation.It acts as high-power motion execution component for large CNC machine tool spindle system.

Installation

Mount 2AD160B-B350B1-BS01/S007 on machine spindle flange and foot base,tighten mounting bolts.Align coupling and check concentricity.Connect three-phase power cable,encoder cable and brake cable according to wiring drawing.Motor blower wiring should be connected separately.Check winding insulation resistance before power-on commissioning.

Interface

‑3-phase motor power connector

‑Encoder feedback connector

‑Electromagnetic brake power terminal

‑Motor temperature sensor terminal

‑Cooling fan power port

Circuit feature

Stable squirrel-cage rotor design,wide constant power speed range,low vibration,shock resistant,stable performance under machining workshop environment.

Feature

2AD160B-B350B1-BS01/S007 is obsolete Rexroth spare part.Typical faults:bearing wear and abnormal noise,encoder damage,brake failure,winding insulation aging,fan fault.Inspect winding,encoder,brake and cooling system before replacement.This spindle motor must match corresponding IndraDrive servo drive,direct substitution without inspection is not recommended.

Diagnostic

When encoder damage,winding overheat,brake malfunction or cooling fan failure occurs,the servo system will trigger alarm and stop spindle operation.

Built‑in function:Spindle rotary motion output,real-time speed feedback,power-off shaft holding,winding temperature monitoring,used as Rexroth Indramat CNC spindle motion system spare replacement.

Product Brief

2AD160B-B350B1-BS01/S007 is Rexroth Indramat old high speed 2AD asynchronous spindle motor with brake for large CNC machining equipment.Confirm drive compatibility,mechanical mounting and cooling configuration before ordering.ESD protection required during handling and installation.
