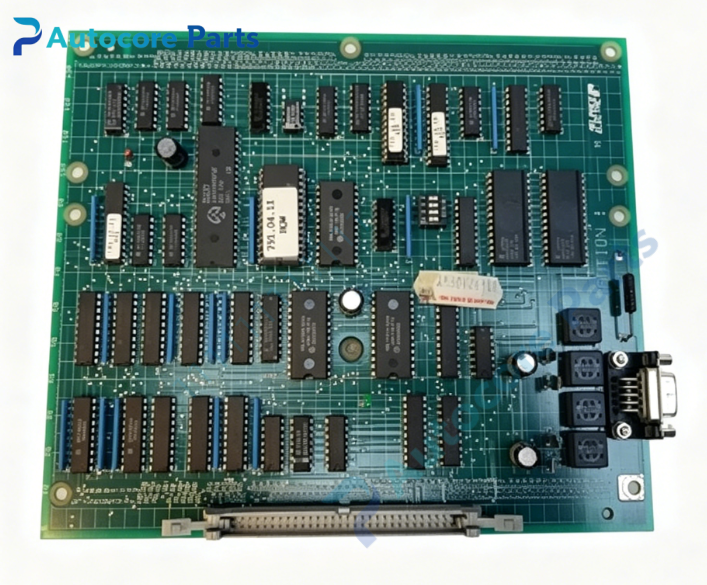

RELIANCE 8145150 Central Control Module

Technical Specifications

Model:8145150

Brand:RELIANCE

Product type:Rack Mount Central Control Module

Weight:2.65kg

Dimension:320mm220mm40mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

8145150 belongs to RELIANCE rack mount central control module.

Installed into Reliance industrial control rack,works with drive regulator boards,pulse trigger board,power supply board and signal interface boards.

Undertake central logic calculation,signal scheduling and drive command distribution for the whole drive system.

Compatible with Reliance legacy heavy industry DC drive system.

Commonly used for old industrial drive equipment maintenance and spare replacement.

Function

8145150 is dedicated central control module for RELIANCE industrial drive system.

Collect all analog and digital signals from each plug-in board inside rack.

Complete main logic operation,speed command distribution and fault centralized judgment.

Send control instruction to regulator and trigger board to realize closed-loop drive control.

Centralized fault collection and alarm output,upload fault code and running status.

Support external host communication for remote parameter setting and status monitoring.

Onboard indicator lights and test ports for onsite inspection and commissioning.

Installation

Power off the whole control rack and cut main power supply.

Insert 8145150 module into designated rack slot and lock front panel screws.

Connect backplane edge connector and external communication wiring.

Separate communication signal cable and high voltage power cable.

Power on system,verify module self-test and communication connection.

Test command transmission and multi fault alarm response.

Interface

Backplane edge connector,external communication port,digital I/O terminal,analog signal interface,status & fault LED indicators,test measurement ports.

Feature

RELIANCE 8145150,rack mounted central control module.

Centralized signal acquisition and command scheduling for full drive rack.

Integrated fault centralized detection and status upload function.

Metal casing for anti-interference,suitable for metallurgy,paper heavy-duty site.

Standard rack plug-in installation,convenient replacement and maintenance.

Discontinued obsolete module,supply only for old automation drive system spare replacement.

Suitable for metallurgy,paper-making heavy-duty DC drive production line renovation.

Diagnostic

Module self-test failure:backplane contact poor or module internal circuit damage;

No communication with upper host:communication port or wiring fault;

Cannot send drive command:internal logic chip failure;

Random false fault alarm:power ripple excessive or signal interference;

LED no lighting:rack power supply missing.

Product Brief

RELIANCE 8145150 is central control module.

It completes centralized signal processing and command distribution for Reliance industrial drive rack,widely used as spare part for heavy industry DC drive system maintenance.

Disclaimer

All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
