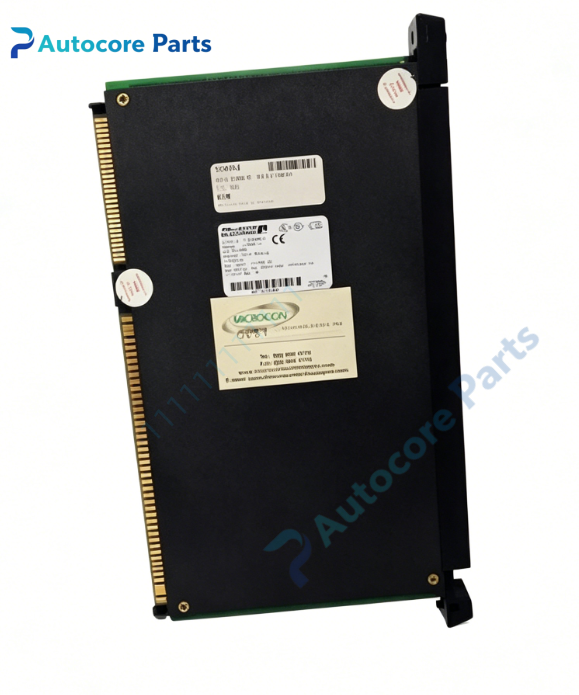

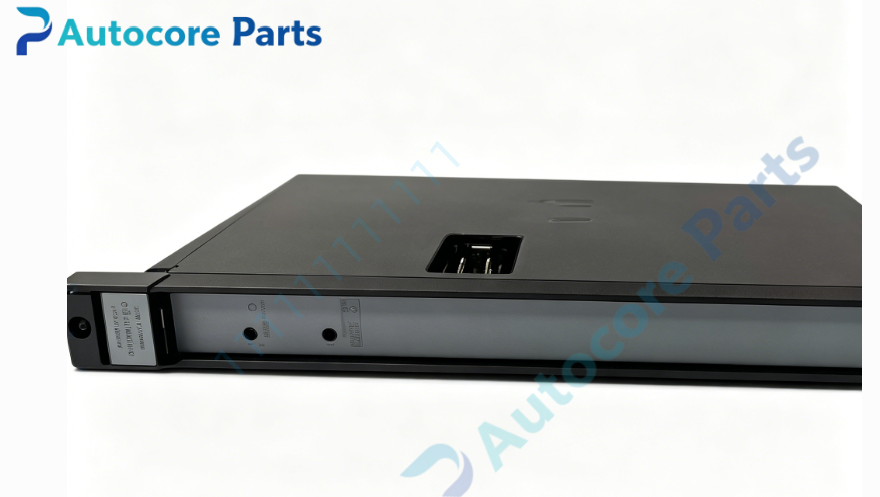

RELIANCE 57045 Universal Drive Controller Module

Technical Specifications

Model:57045

Brand:RELIANCE

Product type:UDC Universal Drive Controller Module

Substrate:Multi-layer printed circuit board

Weight:0.42kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

57045 belongs to RELIANCE AutoMax series UDC universal drive controller module.

Installed into AutoMax rack,can work with multiple AutoMax CPU and I/O modules.

Real-time control for Reliance MaxPak,Cardpak legacy DC drives and AC drives.

Supports optical fiber communication connection with PMI operator interface unit.

Commonly used for old drive equipment maintenance and spare replacement.

Function

57045 UDC is dedicated universal drive controller for RELIANCE AutoMax system.

Real-time closed-loop control of AC and DC motor speed and current.

Process drive feedback signal and output control command to drive power unit.

Store drive parameters and execute drive protection logic.

Optical fiber communication for data exchange with PMI operation panel.

Upload drive operating status and fault information to AutoMax main CPU.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 57045 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus and fiber optic cable to PMI unit.

Check fiber connector surface cleanliness and backplane contact.

Power on system,download drive configuration parameters.

Test motor running and fault alarm function.

Interface

AutoMax backplane edge connector,fiber optic communication port,status LED indicators.

Feature

RELIANCE 57045,AutoMax UDC universal drive controller module.

Onboard microprocessor for high speed drive loop calculation.

Fiber optic communication port,strong anti-interference ability.

Support multiple types of Reliance AC and DC drives.

LED status indicators for running,alarm and communication diagnosis.

Discontinued obsolete module,supply only for old drive equipment spare replacement.

Suitable for metallurgy,paper-making heavy-duty drive system renovation.

Diagnostic

Motor speed control abnormal:parameter configuration error or fiber communication failure;

No communication with PMI:fiber contamination or fiber breakage;

Module alarm LED on:backplane power failure or internal circuit damage;

Cannot download program:backplane bus poor contact.

Product Brief

RELIANCE 57045 UDC is AutoMax universal drive controller module.

It performs real-time control for Reliance AC/DC drives and communicates with PMI panel via optical fiber,widely used as spare part for heavy industry drive system maintenance.
