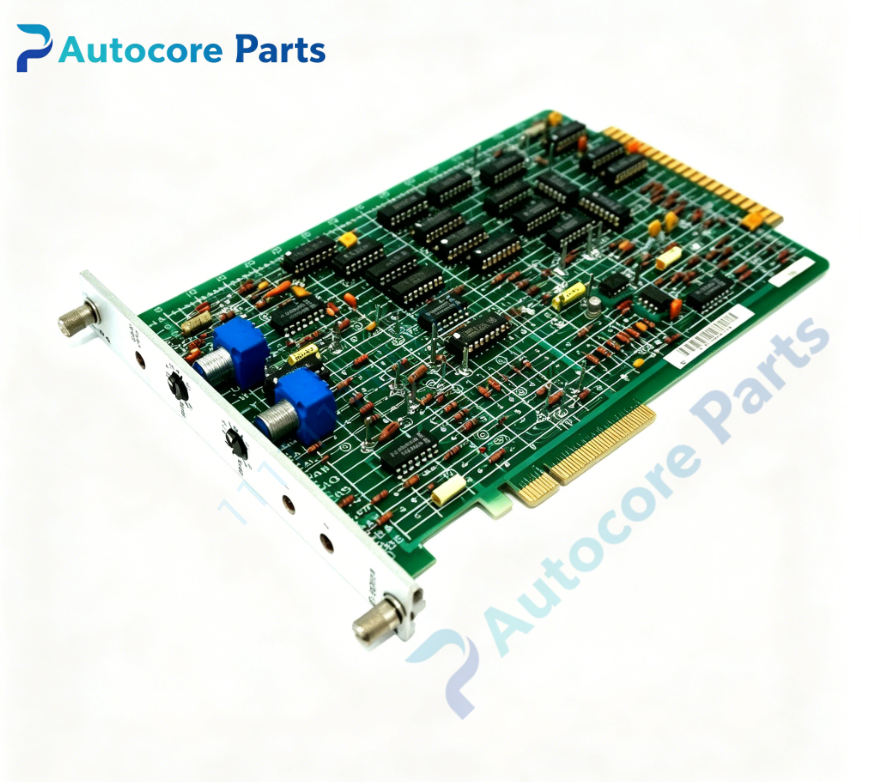

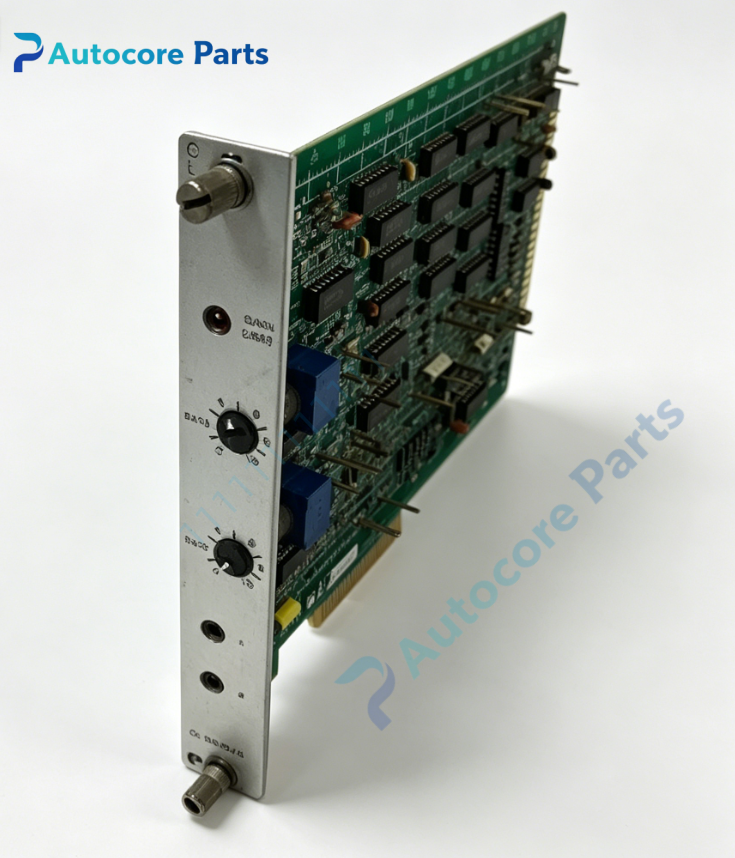

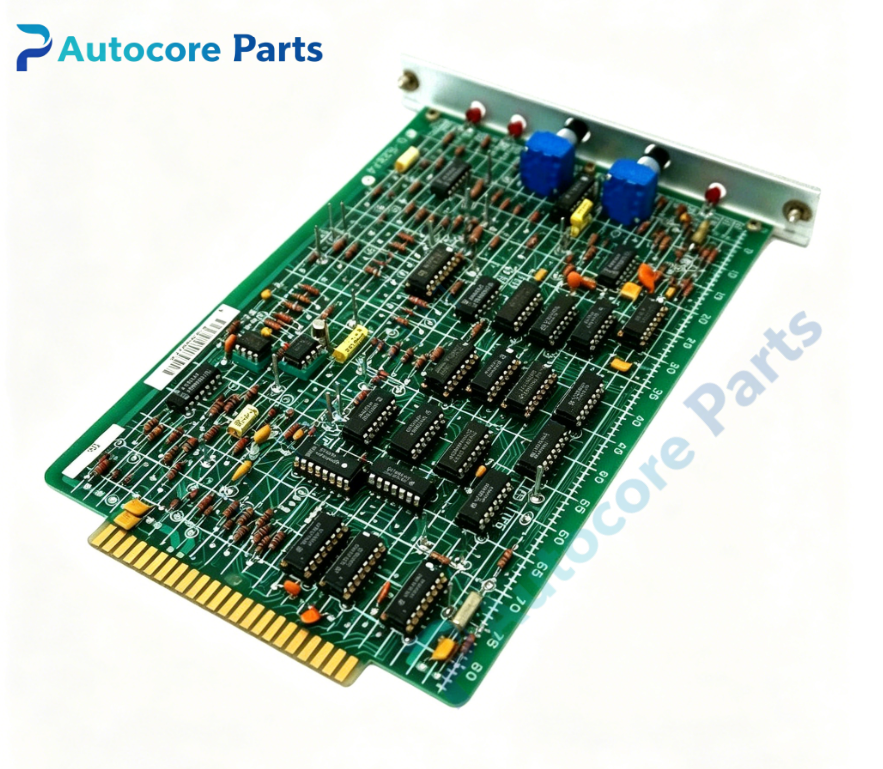

RELIANCE 0-52824 Field Excitation Board

Technical SpecificationsModel:0-52824 Brand:RELIANCE Product type:Field Excitation Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52824 is RELIANCE rack plug-in field excitation board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board and current feedback board. It controls excitation current for motor field winding to realize field weakening speed adjustment for DC spindle motor. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52824 is dedicated field excitation PCB for RELIANCE MaxPak Plus DC drive system. It receives field current setpoint signal from main regulator,realizes field current closed-loop regulation and field weakening control. Samples field winding actual current,compares with reference value and outputs PWM control signal to excitation power circuit. Front panel multi-turn potentiometers for field current limit and field weakening threshold calibration. Dual LED indicators display board power and field excitation active status. Built-in overcurrent and overvoltage protection circuit to protect motor field winding and power components.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52824 field excitation board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for setpoint and feedback signal transmission. Separate excitation power wiring and low-level control signal wiring. Power on system,calibrate field current limit and field weakening parameters via potentiometers. Verify excitation current changes smoothly during motor speed adjustment.

InterfaceBackplane edge connector,field current setpoint input,field current feedback input,PWM excitation control output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52824 rack mount field excitation board. Field winding closed-loop current regulation and field weakening control circuit. Front panel adjustable potentiometers for excitation parameter setup. Overcurrent and overvoltage protection for field excitation loop. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and excitation state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor maximum speed abnormal:field weakening threshold drift or potentiometer misadjustment; No field excitation output:backplane contact failure or drive circuit damage; LED no light:board auxiliary power loss; Field current unstable:power cable interference or ground loop; Intermittent excitation dropout:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52824 is field excitation board. It controls DC motor field winding current and executes field weakening function for Reliance MaxPak Plus legacy spindle DC drive,enabling wide-range spindle speed regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
