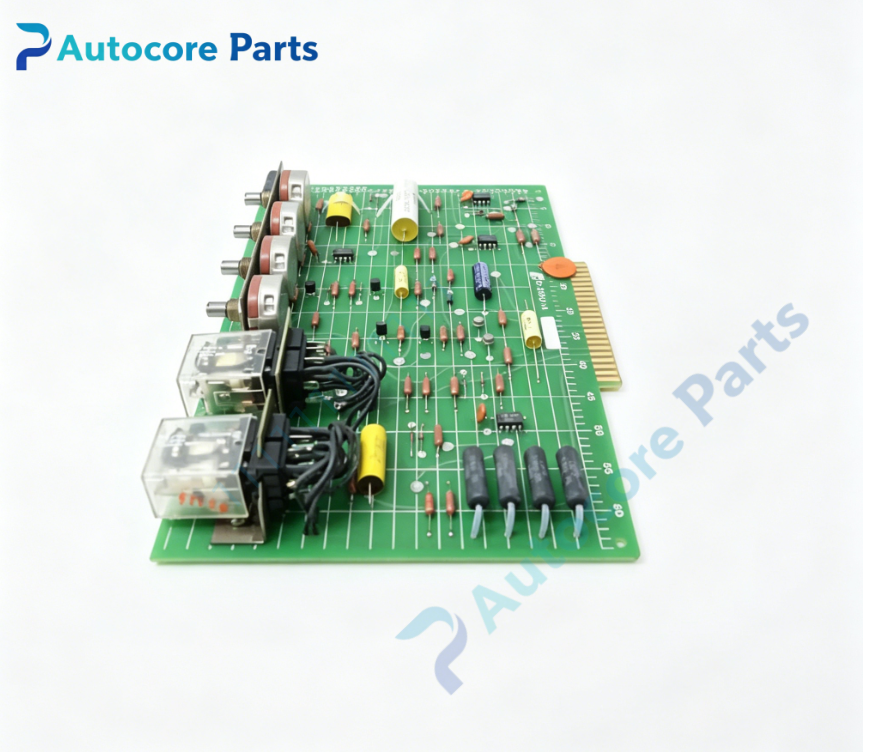

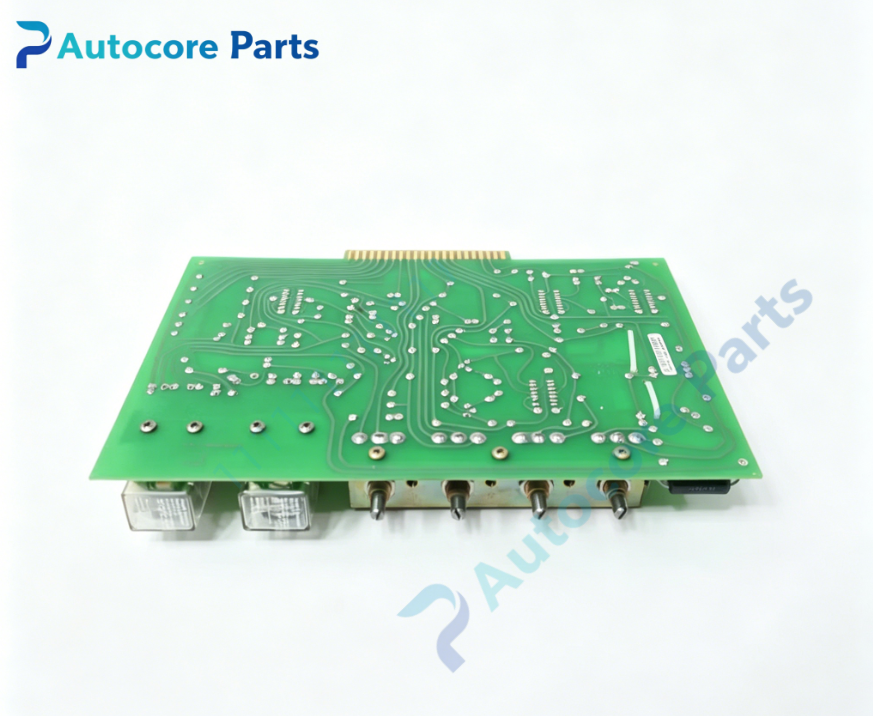

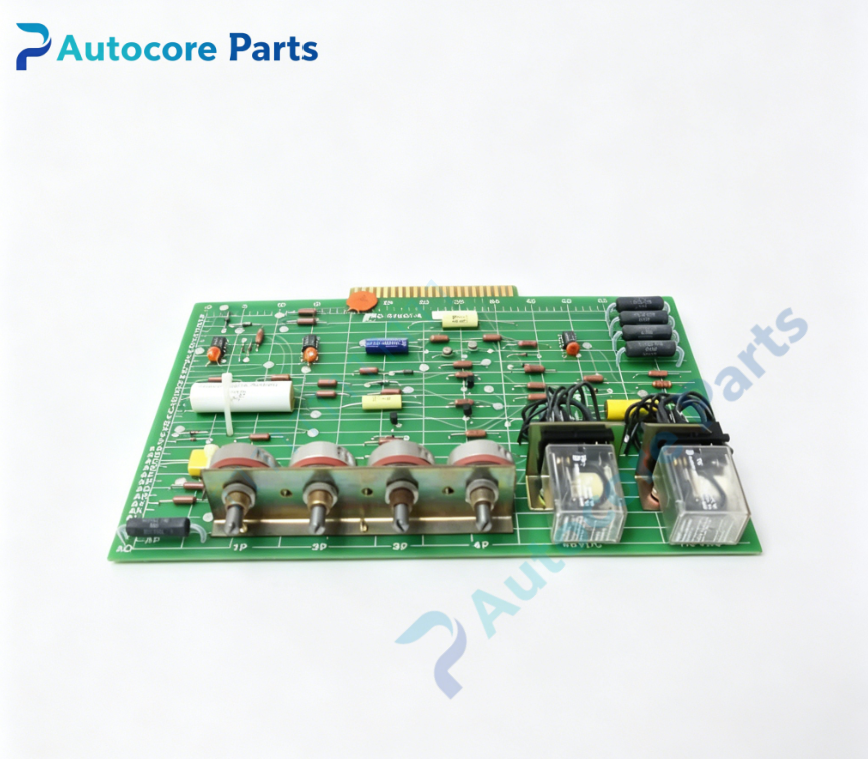

RELIANCE 0-51901-A ARM Armature Regulator Board

Technical SpecificationsModel:0-51901-A Brand:RELIANCE Product type:ARM Armature Regulator Board Weight:0.47kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51901-A is RELIANCE ARM rack plug-in armature regulator board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with VFB voltage feedback board,CLB current limit board and CGSA gate summing board. It executes armature speed loop and current loop closed-loop regulation for DC spindle motor. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51901-A is dedicated ARM armature regulator PCB for RELIANCE MaxPak Plus DC drive system. Receive speed reference signal,armature voltage feedback and armature current feedback signal. Complete speed loop PI calculation and output current reference signal for inner current loop control. Front panel multi-turn high-precision potentiometers for speed loop gain,current loop gain and zero offset calibration. Built-in signal limiting circuit to restrain current overshoot during dynamic load variation. Dual LED indicators display regulator active state and armature loop fault alarm. Signal filtering circuit reduces interference from power unit to maintain loop stability.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51901-A ARM board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate high voltage sampling wiring from low-level analog signal cables. Power on system,calibrate loop parameters via front potentiometers. Verify speed response and current limiting performance under different load conditions.

InterfaceBackplane edge connector,speed reference input,voltage & current feedback input,current loop command output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-51901-A rack mount ARM armature regulator board. Discrete analog PI regulator circuit for armature double closed-loop control. Front panel multi-turn adjustable potentiometers for loop parameter tuning. Built-in signal limiting and noise filtering function. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for running and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor speed unstable:speed loop gain improper or potentiometer drift; Torque response slow:current loop gain setting too low; Fault LED lit:armature feedback signal loss or loop saturation; No control command output:regulator circuit damage; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51901-A is ARM armature regulator board. It implements speed and current double closed-loop regulation for Reliance MaxPak Plus legacy spindle DC drive armature circuit,realizing stable speed adjustment and torque control,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
