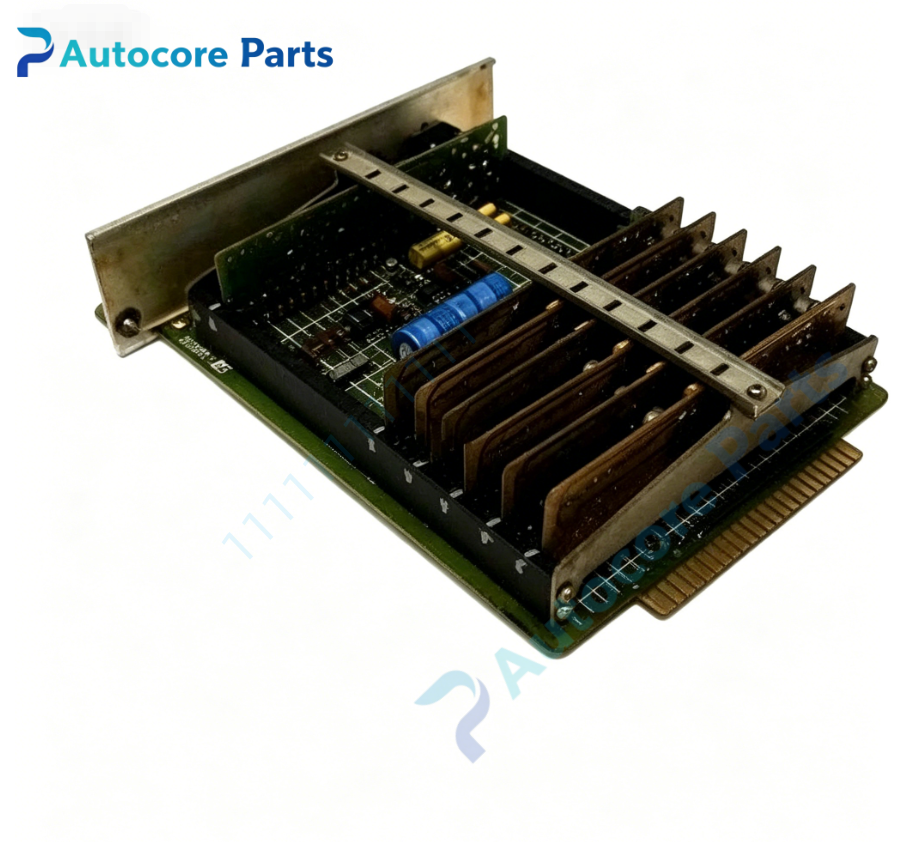

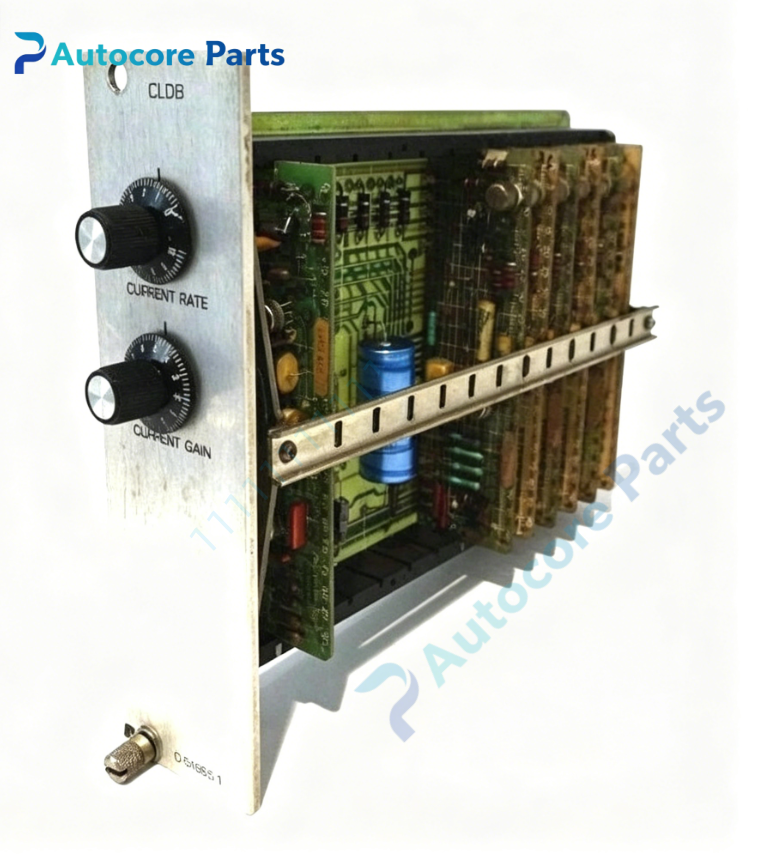

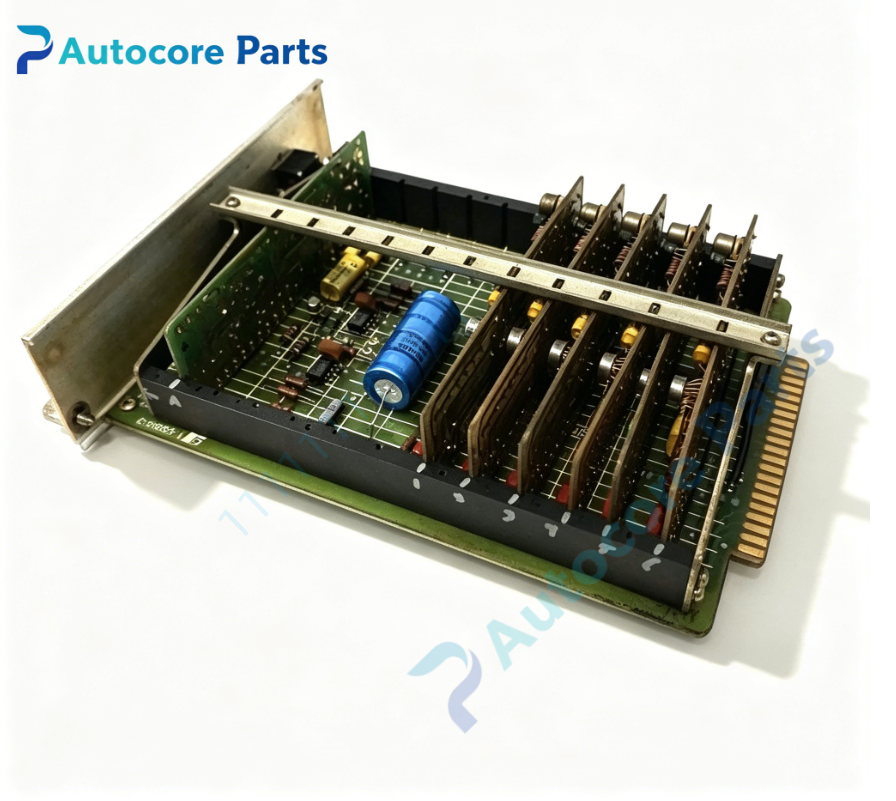

RELIANCE 0-51865-1 FBC Field Board Card

Technical SpecificationsModel:0-51865-1 Brand:RELIANCE Product type:FBC Field Board Card Weight:0.58kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51865-1 is RELIANCE upgraded FBC rack plug-in field excitation control board. It is revised version of 0-51865 base model,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with USAB summing amplifier board and CGSA gate summing board. It controls DC motor field excitation current and performs optimized field weakening logic for spindle high-speed extension. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51865-1 is dedicated FBC field excitation control PCB for RELIANCE MaxPak Plus DC drive system. Receive speed reference and field current feedback signals from drive control rack. Regulate motor field excitation current to maintain stable field flux at base speed. Optimized field weakening algorithm to extend spindle speed above base RPM with smoother transition. Front panel high precision potentiometers for field current limit and field weakening threshold calibration. Generate field SCR firing pulses for excitation power control. Dual LED indicators display field excitation operating and fault status. Improved circuit layout reduces thermal drift during long time operation.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51865-1 FBC board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate low-level analog control wiring from field power pulse cables. Power on system,calibrate field current limit and field weakening threshold via front potentiometers. Verify field current stability and high-speed field weakening transition response.

InterfaceBackplane edge connector,speed reference input,field current feedback input,field SCR trigger pulse output,auxiliary power terminal,shield grounding terminal,dual status LED indicators.

FeatureRELIANCE 0-51865-1 rack mount FBC field excitation control board. Discrete analog closed-loop circuit for field current regulation. Front panel high precision adjustable potentiometers for field current and weakening setup. Enhanced thermal stability and lower signal drift compared with 0-51865 base version. Gold plated edge connector for reliable rack signal transmission. Visual dual LED indication for excitation normal and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor cannot reach rated high speed:field weakening circuit failure or potentiometer drift; Unstable field current:feedback circuit damage; Field fault LED lit:overcurrent or excitation loss; No field excitation output:SCR trigger circuit breakdown; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51865-1 is FBC field board card. It implements closed-loop regulation of DC motor field excitation current and optimized field weakening control for Reliance MaxPak Plus legacy spindle DC drive,to realize constant torque and constant power wide speed range,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
