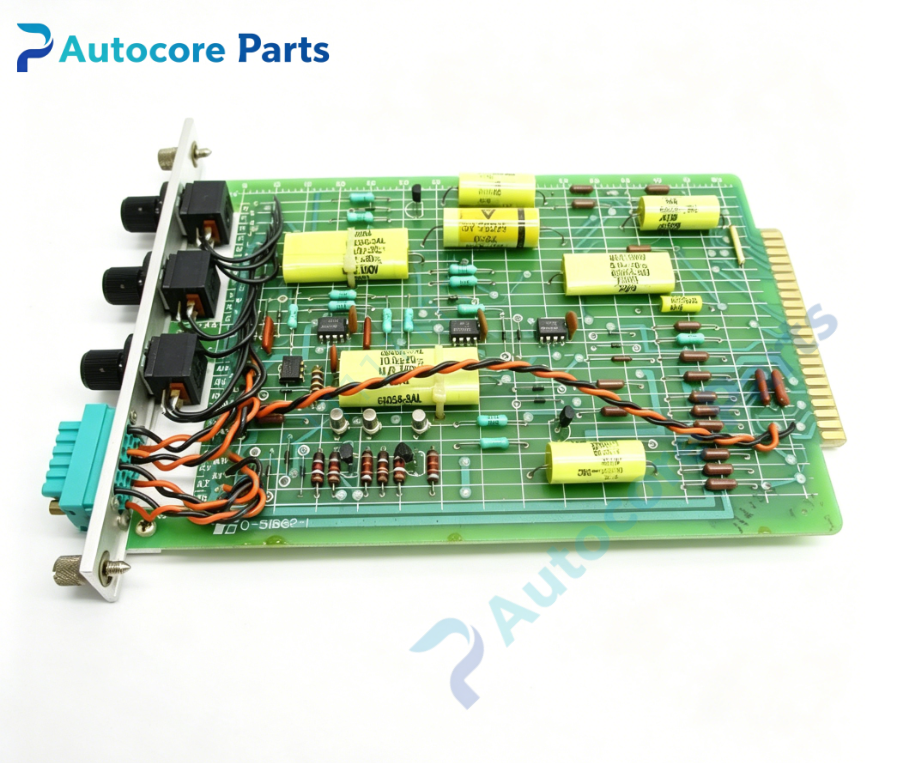

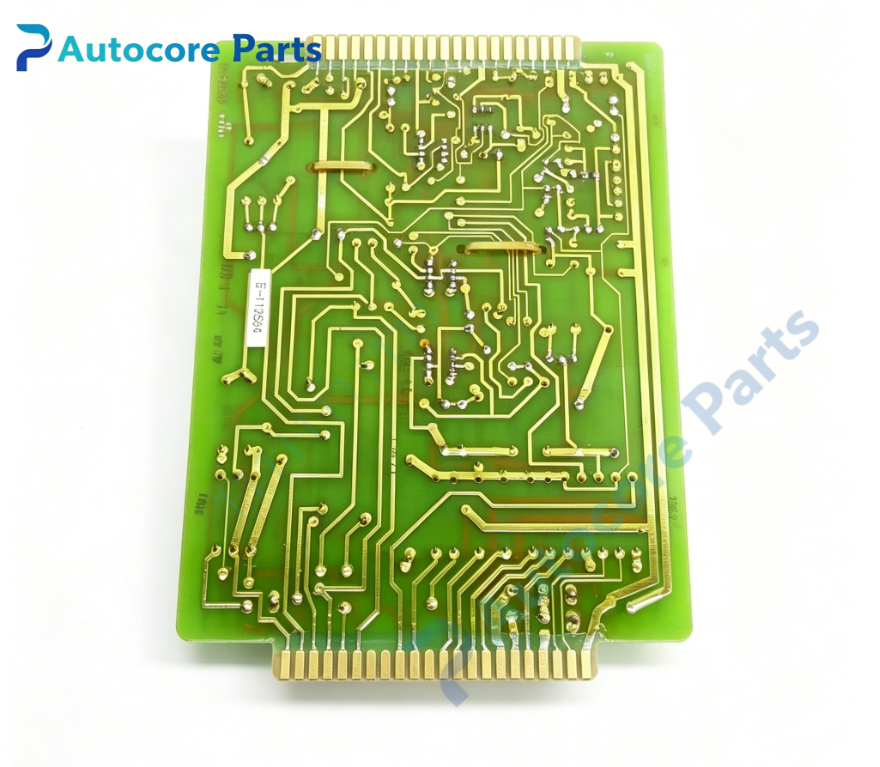

RELIANCE 0-51862-1 USAB Universal Summing Amplifier Board

Technical SpecificationsModel:0-51862-1 Brand:RELIANCE Product type:USAB Universal Summing Amplifier Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51862-1 is RELIANCE USAB rack plug-in universal summing amplifier board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with CVTC sampling board,CLDL current limit board and VLDD voltage limit board. It performs analog signal summing,deviation calculation for speed and current closed-loop regulation of spindle drive system. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51862-1 is dedicated USAB universal summing amplifier PCB for RELIANCE MaxPak Plus DC drive system. Receive multiple analog input signals including speed reference,feedback signal,current limit signal and compensation signal. Sum and calculate deviation of multi-channel analog signals,output error signal to drive regulator circuit. Front panel adjustable potentiometers for signal gain and offset calibration. Built-in analog buffer circuit to isolate input and output signals and reduce crosstalk interference. Front LED indicators for amplifier working status. It is the core analog operation unit for speed closed-loop control of DC spindle drive.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51862-1 USAB board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal analog signal exchange. Separate low-level analog signal wiring from power and pulse cables. Power on system,calibrate signal gain and zero offset via front potentiometers. Verify closed-loop response after signal summing calculation.

InterfaceBackplane edge connector,multi-channel analog signal input,error analog signal output,auxiliary power terminal,shield grounding terminal,status LED indicators.

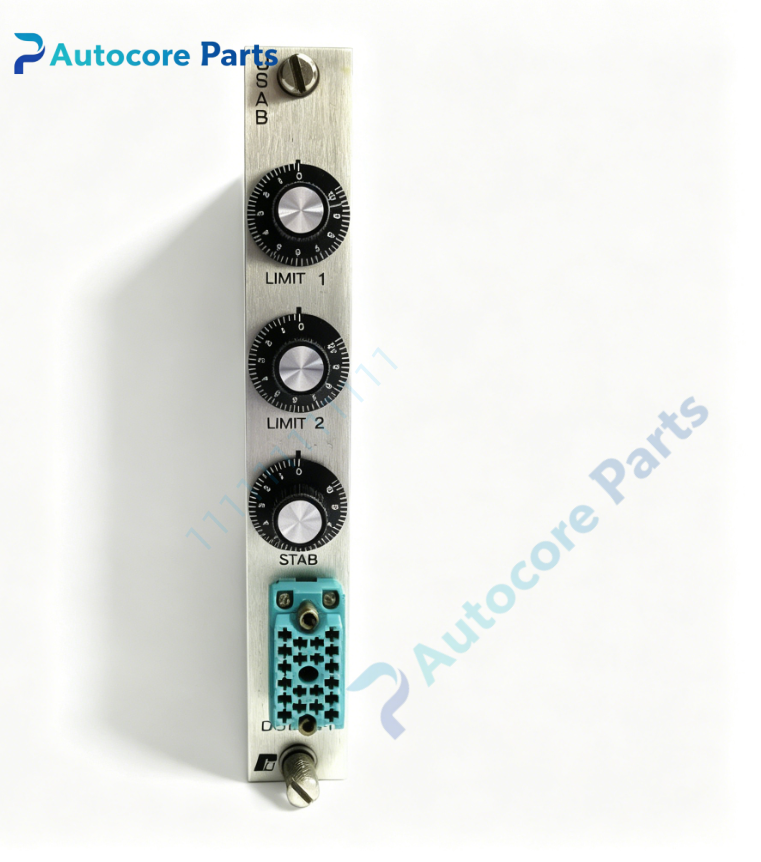

FeatureRELIANCE 0-51862-1 rack mount USAB universal summing amplifier board. Discrete analog operational amplifier circuit for multi-signal summing and deviation computation. Front panel multiple adjustable potentiometers for gain and offset calibration. Gold plated edge connector for reliable rack signal transmission. Visual LED indication for amplifier operating state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive unstable speed:amplifier drift or potentiometer aging; No error signal output:op-amp circuit damage; LED indicator not lighting:missing auxiliary power; Signal gain cannot be adjusted:potentiometer wear; Intermittent signal fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51862-1 is USAB universal summing amplifier board. It collects multi-channel analog reference and feedback signals,completes signal summing and deviation calculation,provides error signal for closed-loop speed regulation of Reliance MaxPak Plus legacy spindle DC drive,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
