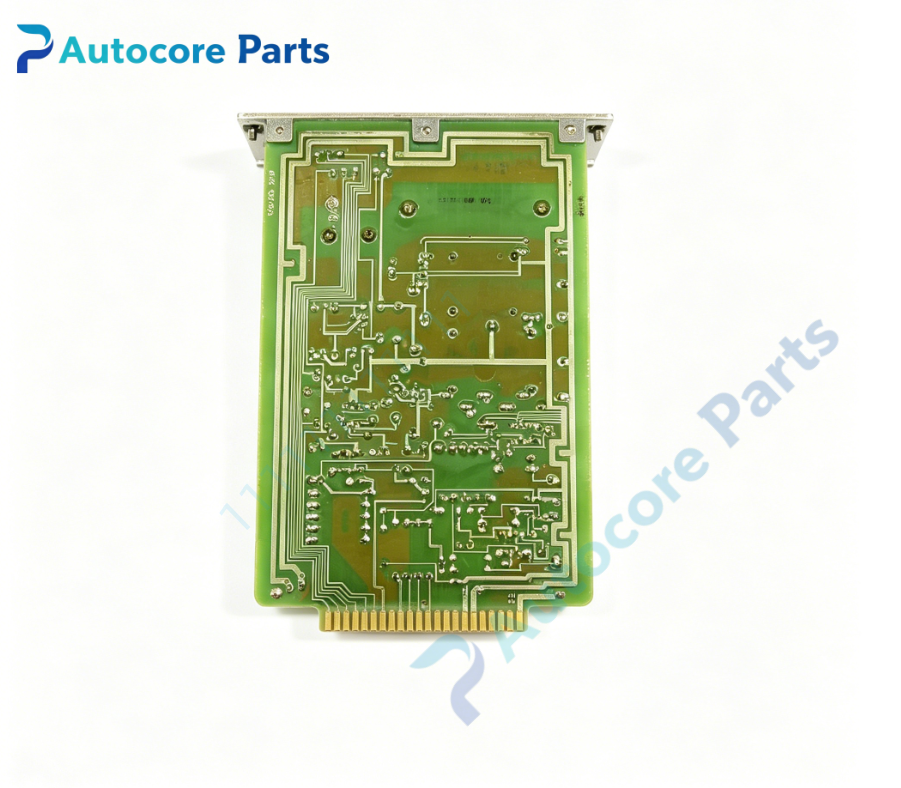

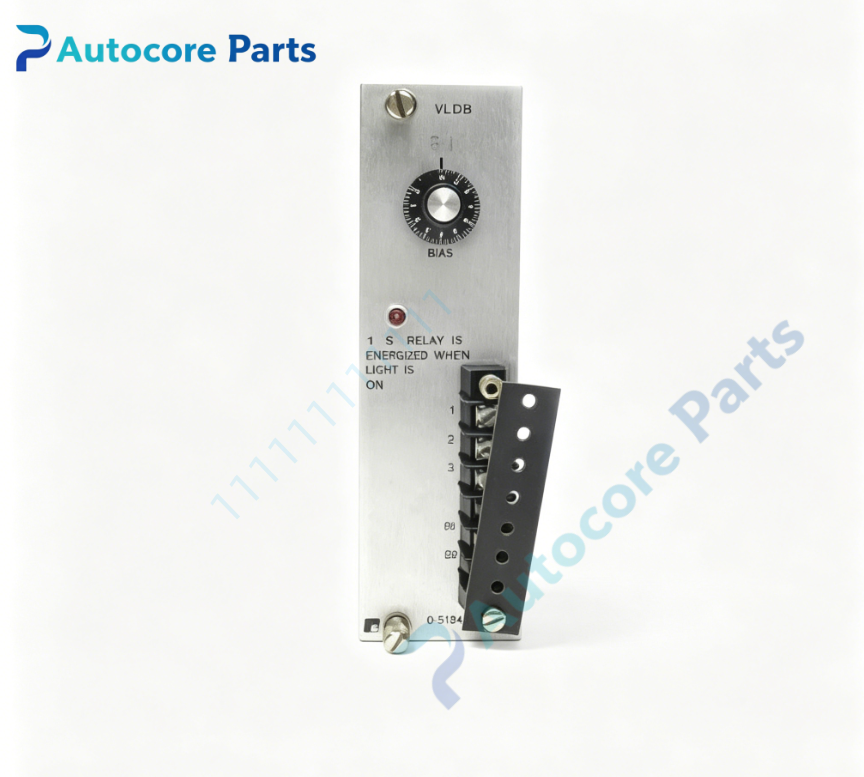

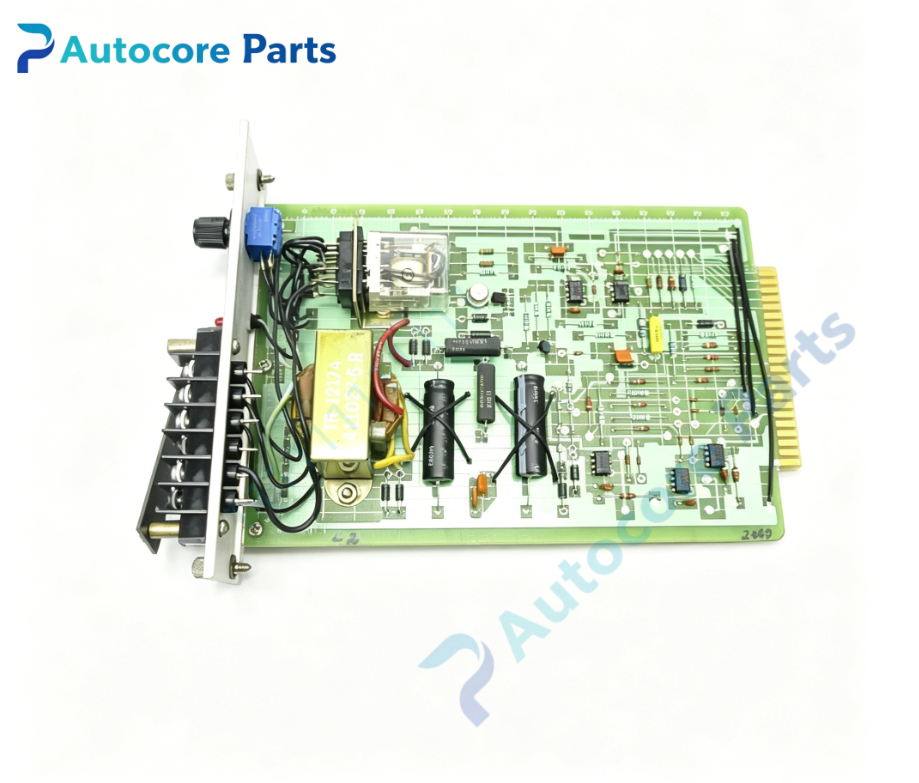

RELIANCE 0-51847-1 VLDD Voltage Limit Detection Board

Technical SpecificationsModel:0-51847-1 Brand:RELIANCE Product type:VLDD Voltage Limit Detection Board Weight:0.56kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51847-1 is RELIANCE upgraded VLDD rack plug-in voltage limit detection board. It is revised version of 0-51847,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with CVTC sampling board and IRCP interlock relay board. It monitors armature voltage threshold and provides over-limit protection trigger signal for spindle drive system. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51847-1 is dedicated VLDD voltage limit detection PCB for RELIANCE MaxPak Plus DC drive system. Receive scaled armature voltage feedback signal from CVTC board. Compare real-time voltage value with preset threshold set by front panel potentiometers. Output logic trigger signal once voltage exceeds upper or lower limit value. Send fault signal to IRCP relay board to activate drive interlock and shut down SCR firing pulse. Optimized filter circuit to reduce false triggering caused by transient voltage spike. Two adjustable potentiometers for high-limit and low-limit voltage setting. Front LED indicators for voltage over-limit alarm status.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51847-1 VLDD board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate analog voltage sensing wiring from power pulse cables. Power on system,set voltage threshold via front potentiometers. Verify protection action when armature voltage exceeds preset limit.

InterfaceBackplane edge connector,armature voltage feedback input,over-limit fault logic output,auxiliary power terminal,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51847-1 rack mount VLDD voltage limit detection board. Discrete analog comparator circuit for voltage threshold detection. Dual front panel adjustable potentiometers for upper and lower voltage limit calibration. Improved anti-interference filter compared with 0-51847 base version. Gold plated edge connector for reliable rack contact. Visual LED alarm indication for voltage fault. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticFalse voltage protection trip:threshold potentiometer drift or transient spike interference; No fault output when overvoltage:comparator circuit damage; LED indicator not lighting:missing auxiliary power; Voltage threshold cannot be adjusted:potentiometer wear; Intermittent protection action:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51847-1 is VLDD voltage limit detection board. It receives armature voltage feedback signal,monitors voltage upper and lower threshold,generates interlock fault signal for Reliance MaxPak Plus legacy spindle DC drive overvoltage/undervoltage protection,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
