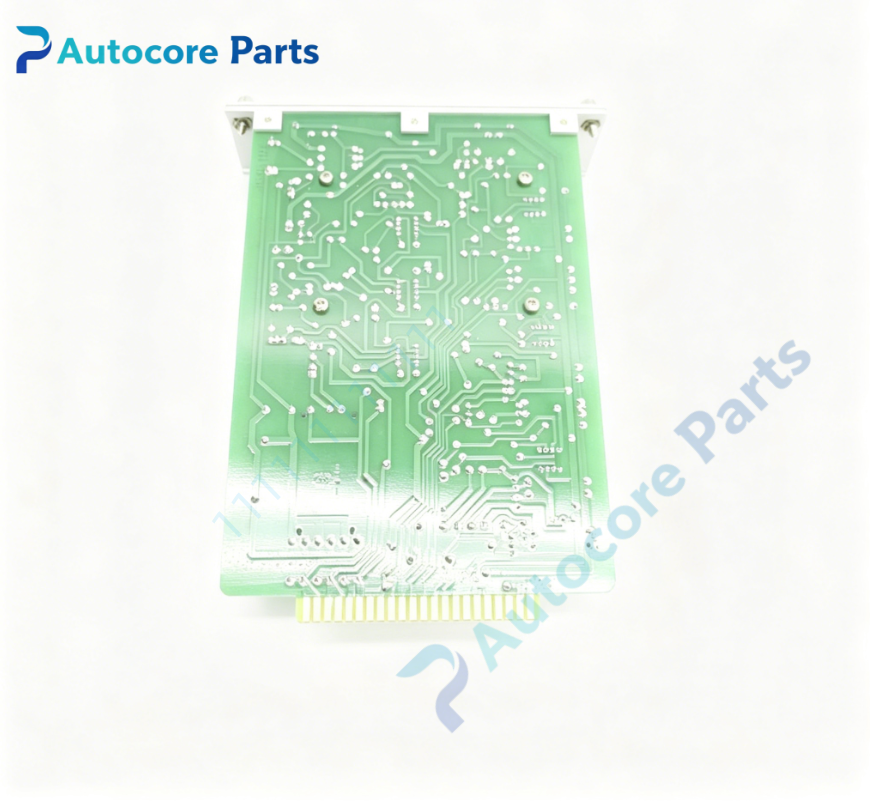

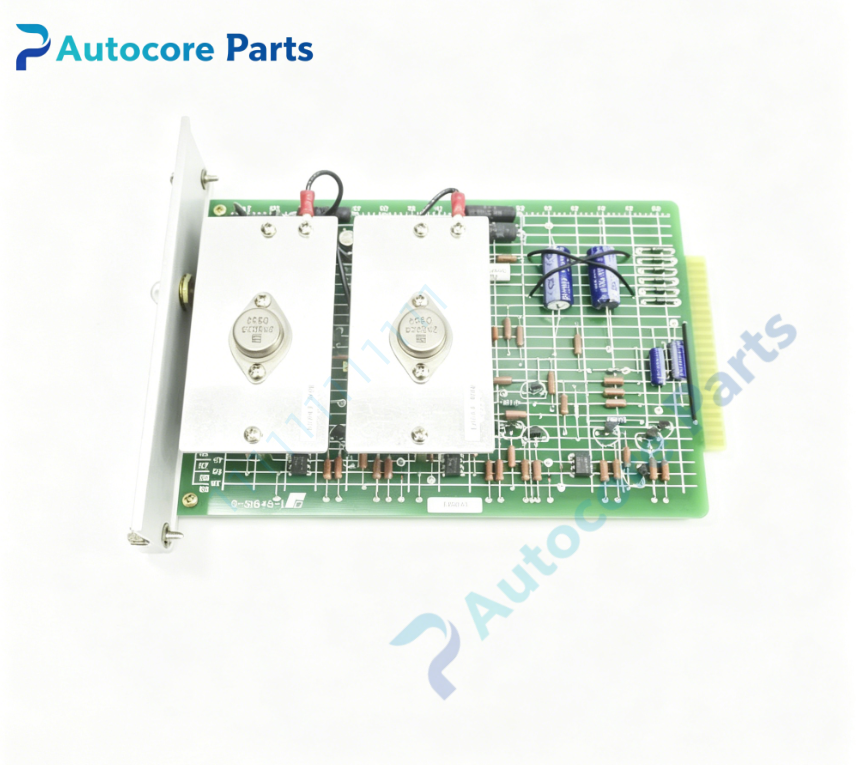

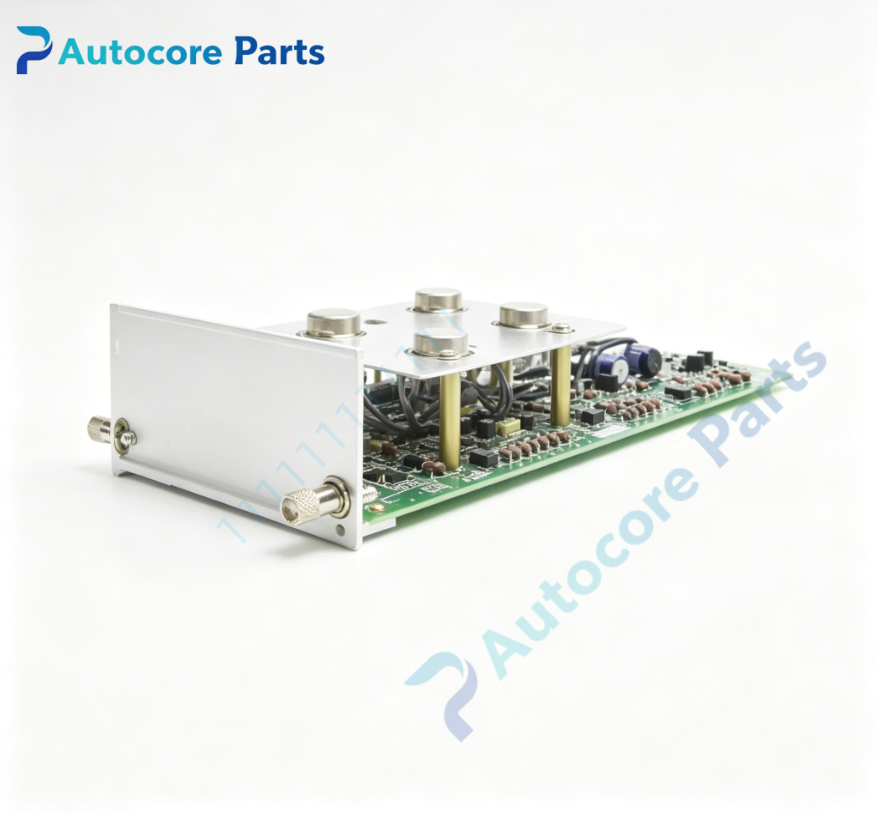

RELIANCE 0-51845-1 PRSB Precision Power Supply Board

Technical SpecificationsModel:0-51845-1 Brand:RELIANCE Product type:PRSB Precision Power Supply Board Weight:0.62kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51845-1 is RELIANCE PRSB rack plug-in precision power supply board. It is revised upgraded variant of 0-51845 PRSA board,designed for Reliance MaxPak Plus series spindle DC drive rack. It supplies stable regulated DC power for all analog and digital control cards inside the drive rack. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51845-1 is dedicated PRSB precision power supply PCB for RELIANCE MaxPak Plus DC drive system. Accepts AC input from drive internal auxiliary transformer. Convert and output stable ±15VDC regulated power to supply all rack control boards. Optimized overvoltage,overcurrent and short-circuit protection circuit to protect downstream control electronics. Upgraded filter capacitors to reduce power ripple and high-frequency noise. Monitor output voltage status and send fault interlock signal once power abnormality occurs. Suppress surge interference generated by SCR switching of power unit. Provide more stable output under heavy load fluctuation compared with PRSA version.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51845-1 PRSB board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal power distribution. Separate power input wiring from low level analog signal cables. Power on system,measure output DC voltage to verify power stability. Test the response of overcurrent and short-circuit protection function.

InterfaceBackplane edge connector,AC auxiliary power input,regulated ±15VDC power output,power fault interlock signal,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51845-1 rack mount PRSB precision power supply board. Discrete linear regulated power circuit with upgraded filter components. Enhanced multi-layer protection mechanism against overvoltage,overcurrent and short circuit. Gold plated edge connector for reliable rack power transmission. Front panel LED to indicate power normal/fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticNo control power output:AC input missing or internal fuse blown; Output voltage drift:aging of electrolytic capacitor; Power ripple excessive:filter capacitor failure; Random drive reset:unstable power supply; Intermittent power loss:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51845-1 is PRSB precision power supply board. It converts auxiliary AC power into stable ±15VDC regulated power for the whole control rack of Reliance MaxPak Plus legacy spindle DC drive,with enhanced power abnormality detection and protection function,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
