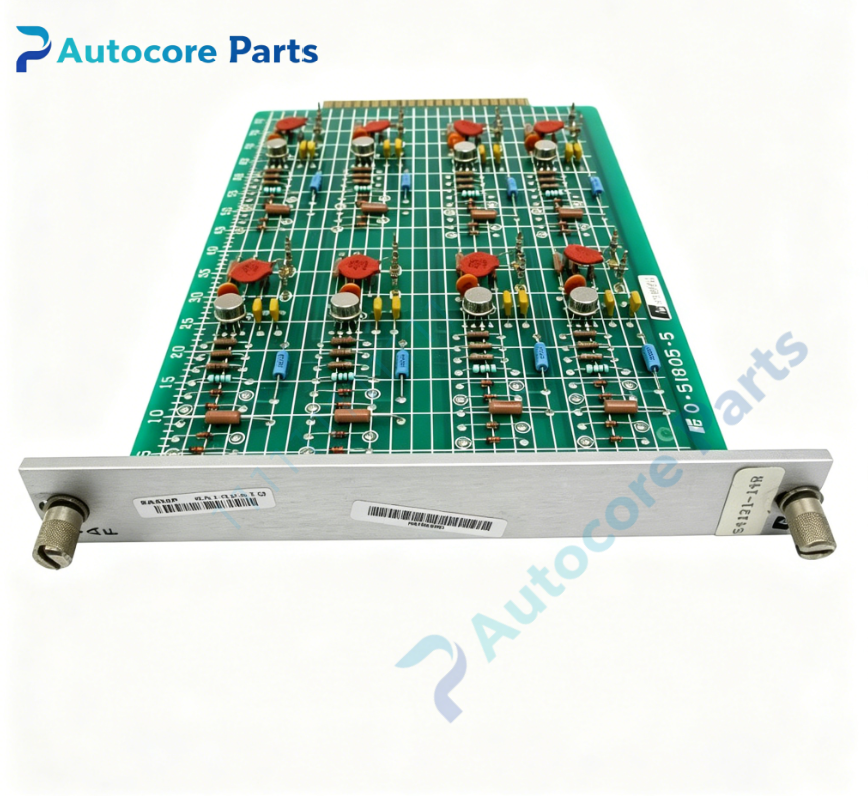

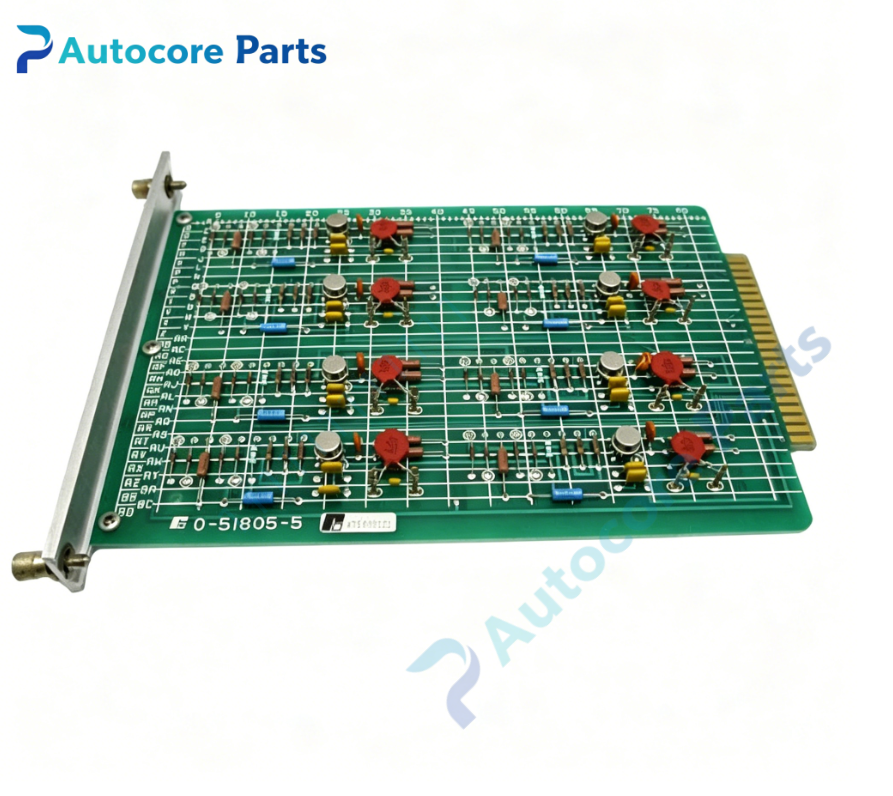

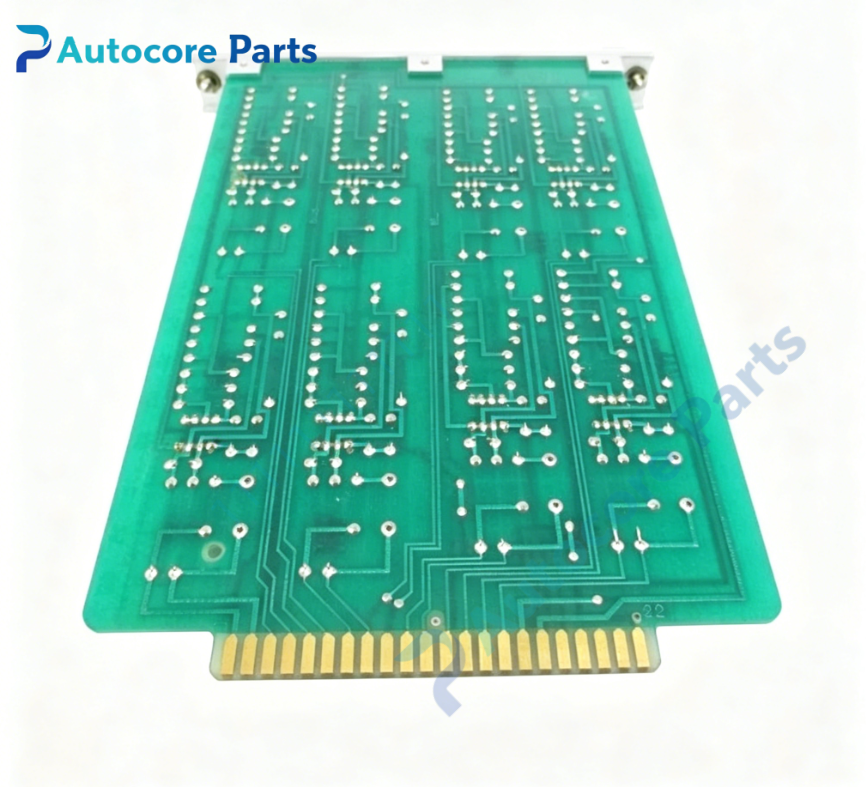

RELIANCE 0-51805-5 PIAF Board

Technical SpecificationsModel:0-51805-5 Brand:RELIANCE Product type:PIAF Board Weight:0.74kg Dimension:220mm145mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51805-5 belongs to RELIANCE PIAF process interface analog feedback board. Installed inside Reliance DC variable speed drive cabinet,cooperates with main regulator board and field process control equipment. It handles analog feedback and process interface signal conversion for legacy Reliance drive units. Commonly used for maintenance and spare replacement of old industrial drive equipment.

Function0-51805-5 is dedicated PIAF process interface analog feedback PCB for RELIANCE drive system. Receive analog feedback signals from drive and field sensors. Complete signal scaling,filtering and level conversion. Transmit conditioned analog signals to main control regulator board. Output drive operating analog status signals to external process control system. Suppress high frequency noise interference on analog loop. Provide overvoltage protection for analog input channels. Onboard potentiometers for fine calibration of signal range.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51805-5 board to designated bracket and lock fasteners. Connect terminal wiring for analog input,feedback output and auxiliary power. Separate low voltage analog signal wiring from high-current power bus. Power on system,calibrate analog signal scaling via onboard potentiometers. Verify signal stability between drive and external process controller.

InterfaceScrew terminal block,analog signal input,processed analog feedback output,auxiliary power terminal,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51805-5 PIAF analog interface feedback board. Multi-channel analog signal conditioning and scaling circuit. Onboard adjustable potentiometers for signal calibration. Built-in noise filter and surge protection for analog channels. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance drive system spare replacement. Suitable for metallurgy,paper-making production line drive renovation and maintenance.

DiagnosticIncorrect analog feedback value:potentiometer drift or channel component aging; No analog signal output:auxiliary power missing; Signal fluctuation and jitter:poor shielding or grounding defect; Cannot calibrate signal range:amplifier circuit failure; Intermittent signal dropout:loose terminal connection.

Product BriefRELIANCE 0-51805-5 is PIAF board. It performs analog feedback acquisition,signal filtering and scaling conversion between Reliance legacy drive and external process control system,widely used as spare part for legacy drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
