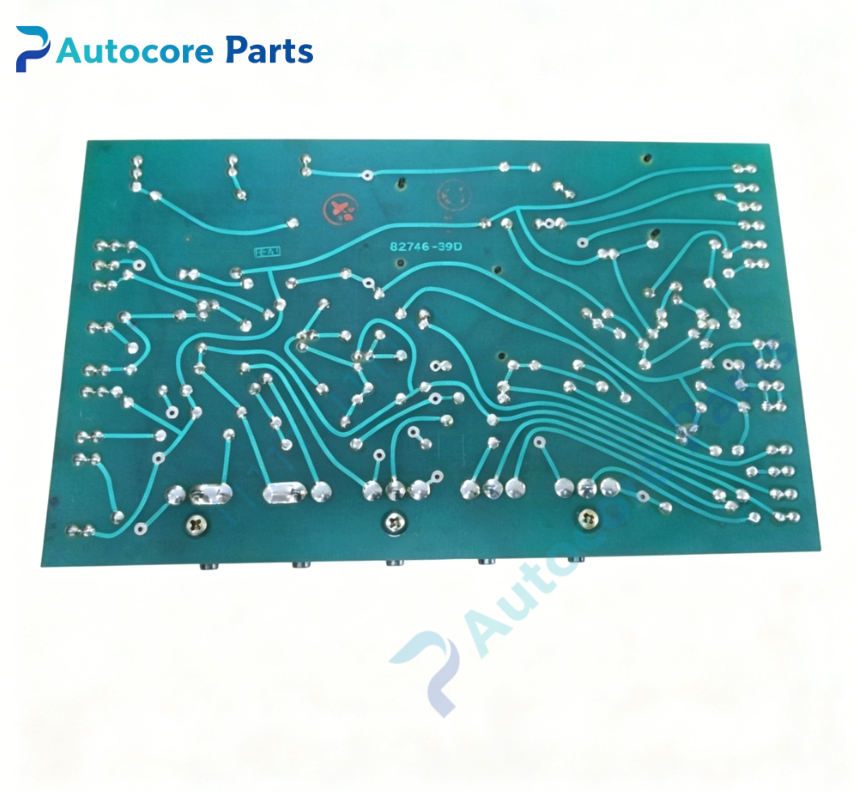

RELIANCE 0-51445-A Emitter Follower Controller Board

Technical SpecificationsModel:0-51445-A Brand:RELIANCE Product type:Emitter Follower Controller Board Weight:0.48kg Dimension:195mm120mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51445-A is revised version of 0-51445 emitter follower board. Installed inside Reliance DC variable speed drive cabinet,cooperates with main regulator board and feedback signal circuit. It serves as analog signal buffer and impedance conversion unit for drive closed-loop control. Commonly used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51445-A is revised emitter follower analog buffer PCB for RELIANCE DC drive system. Receive low-level analog error and feedback signals from preceding control cards. Complete impedance isolation and signal buffering via discrete transistor emitter follower circuit. Adjust signal amplitude by five onboard metal potentiometers to match regulator input range. Prevent signal loading distortion between multi-stage analog control loops. Filter minor noise interference of analog control signals. Transmit buffered and conditioned signals to subsequent drive regulator circuits.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51445-A board to designated bracket and lock fasteners. Connect 26-pin tab terminal wiring for analog input and output. Separate low voltage analog signal wiring from high-current power bus. Power on system,calibrate signal gain and offset via onboard variable resistors. Verify signal stability under no-load and variable load operation.

Interface26 tab terminal connector,analog signal input,buffered signal output,adjustment potentiometers,shield grounding terminal.

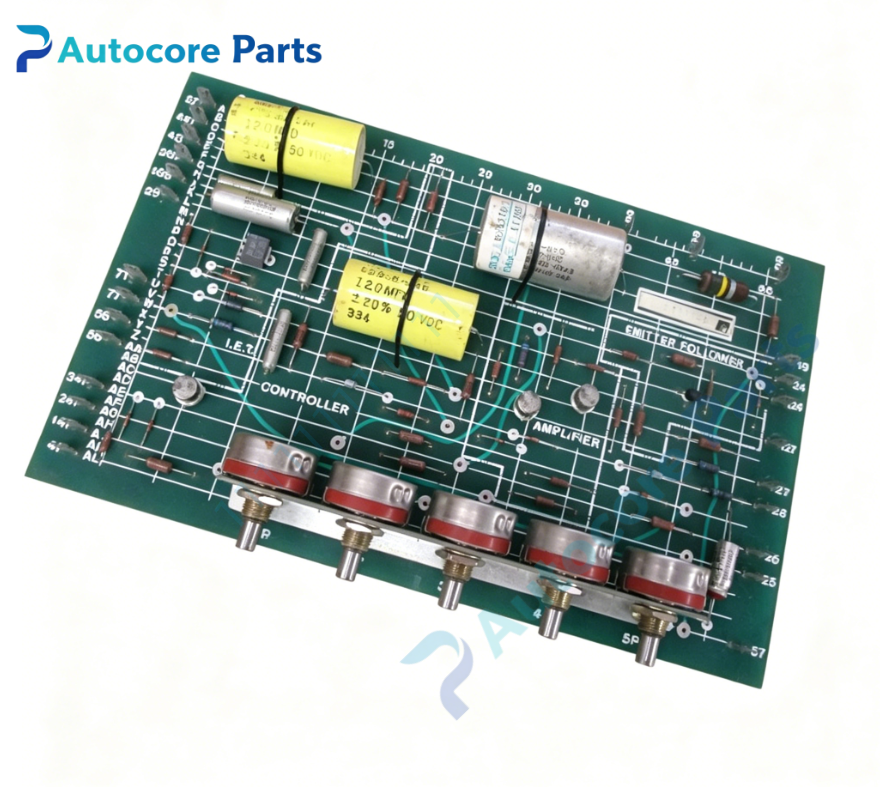

FeatureRELIANCE 0-51445-A revised analog emitter follower buffer board. Five on-board metal variable resistors for signal tuning. Impedance matching to avoid analog signal attenuation and distortion. Discrete transistor emitter follower circuit design,marked I.E.T, CONTROLLER, AMPLIFIER, EMITTER FOLLOWER on PCB surface. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticDistorted analog control signal:potentiometer drift or transistor aging; Weak signal transmission:impedance mismatch caused by component degradation; No output signal:board auxiliary power missing; Unstable drive speed:signal loading effect without buffer isolation; Intermittent signal fluctuation:loose tab terminal wiring.

Product BriefRELIANCE 0-51445-A is revised emitter follower controller board. It performs analog signal buffering,impedance conversion and signal amplitude adjustment for multi-stage closed-loop control of Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
