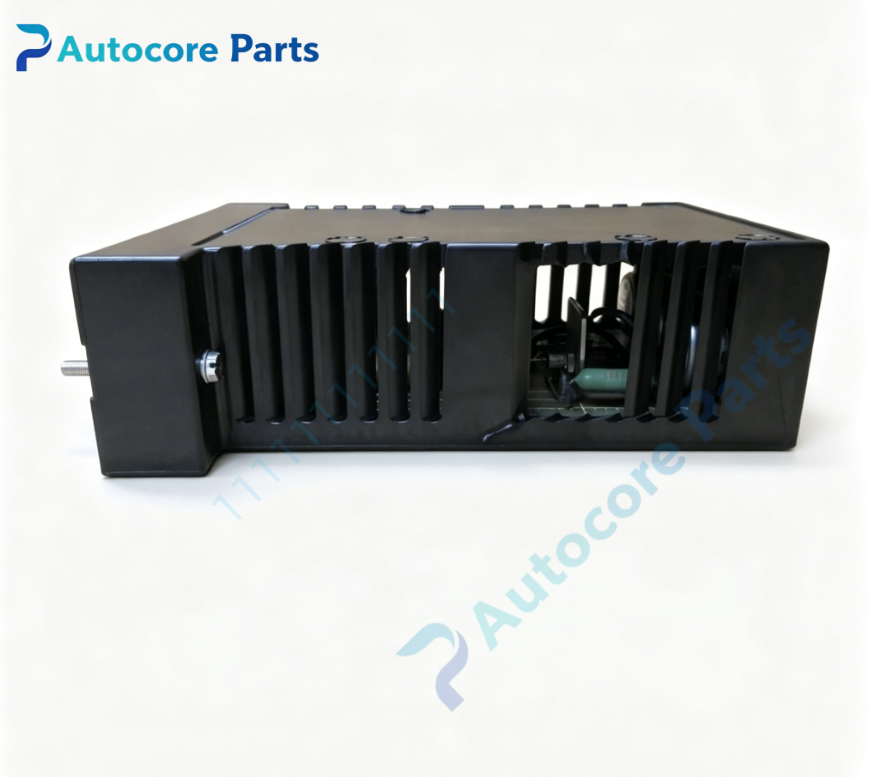

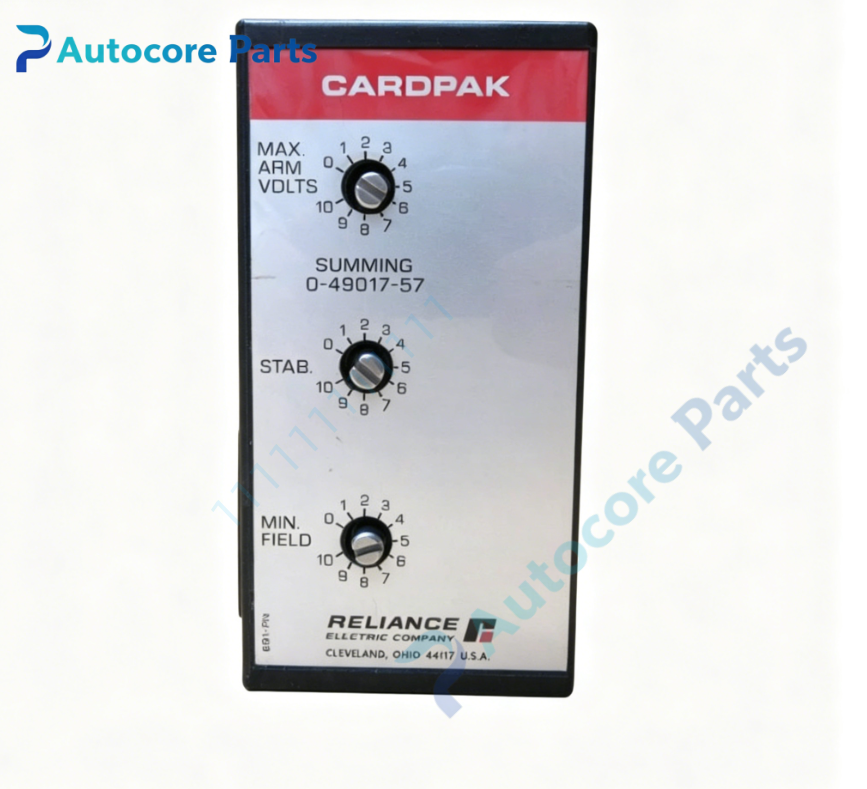

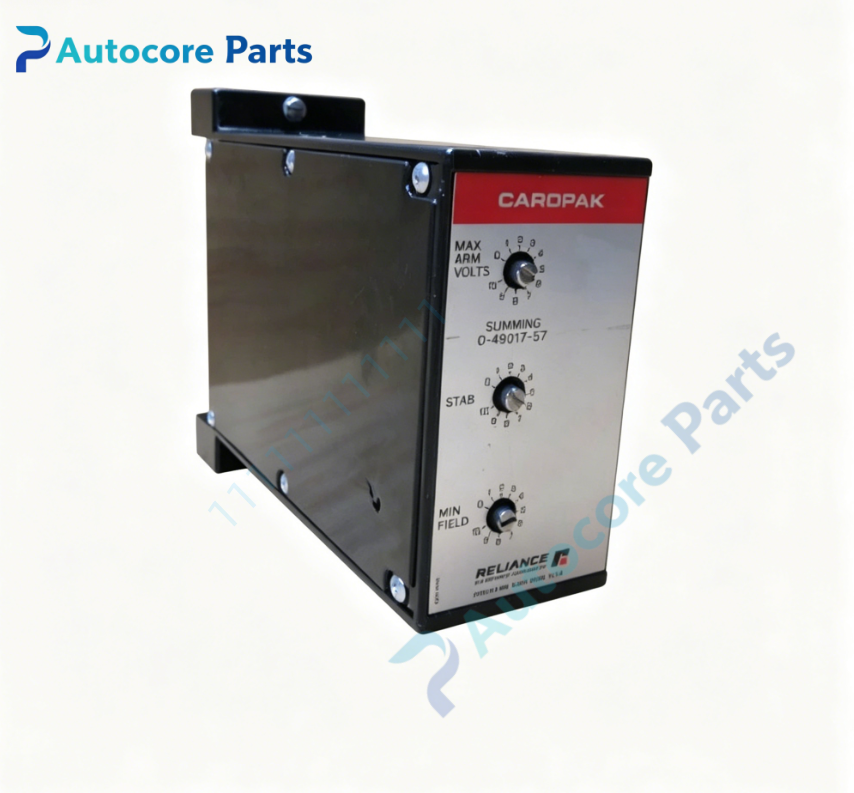

RELIANCE 0-49017-57 Auxiliary Reference Board

Technical SpecificationsModel:0-49017-57 Brand:RELIANCE Product type:Auxiliary Reference Board Weight:1.08kg Dimension:231mm161mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility 0-49017-57 belongs to RELIANCE CardPak series auxiliary reference board. Installed into CardPak rack,works with summing board and speed reference board. It provides adjustable auxiliary trim signal for fine speed correction of CardPak DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function 0-49017-57 is dedicated auxiliary trim reference board for RELIANCE CardPak DC drive system. Generate small adjustable analog trim signal for speed fine tuning. Add or subtract trim signal to main speed setpoint via summing board. Multiple potentiometers for positive/negative trim range calibration. Accept external remote trim input signal for remote fine adjustment. Stabilize minor speed deviation caused by load fluctuation. Output low drift analog trim signal to summing module.

Installation Power off the whole drive cabinet and cut main power supply. Insert 0-49017-57 board into designated CardPak slot and lock retaining latch. Connect backplane bus connector and analog trim signal wiring. Separate low voltage control wiring from high power main circuit cable. Power on system,calibrate positive and negative trim range via potentiometers. Test speed fine adjustment effect with main reference signal.

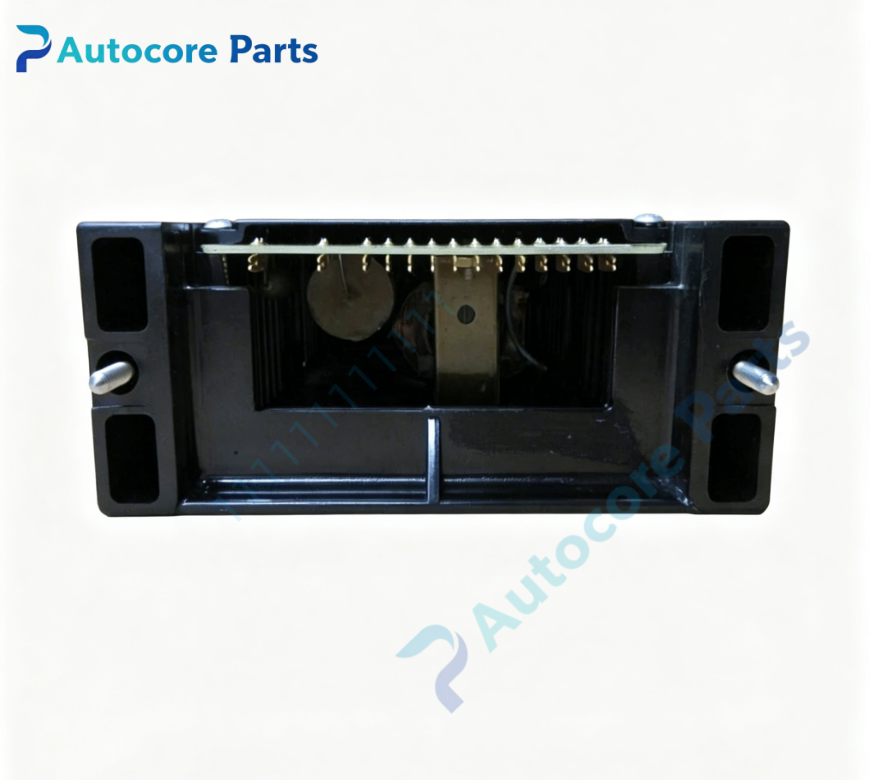

Interface Backplane bus connector,analog signal input & output terminal,trim adjustment potentiometers,status LED indicators.

Feature RELIANCE 0-49017-57,CardPak rack mount auxiliary trim reference board. Precision analog trim signal generation for speed fine correction. Dual-direction positive and negative trimming function. Onboard potentiometers for trim range calibration. Low temperature drift circuit to keep trim value stable. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old CardPak DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation.

Diagnostic Minor speed offset:trim potentiometer drift or calibration deviation; Unable to adjust speed fine value:trim signal output loss; Speed drift with temperature:internal precision resistor aging; No trim superposition:summing channel or trim board circuit fault; Random speed jitter:trim signal noise interference.

Product BriefRELIANCE 0-49017-57 is CardPak auxiliary reference board. It supplies adjustable analog trim signal for fine speed correction of Reliance CardPak DC drive,widely used as spare part for legacy DC drive equipment maintenan

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
