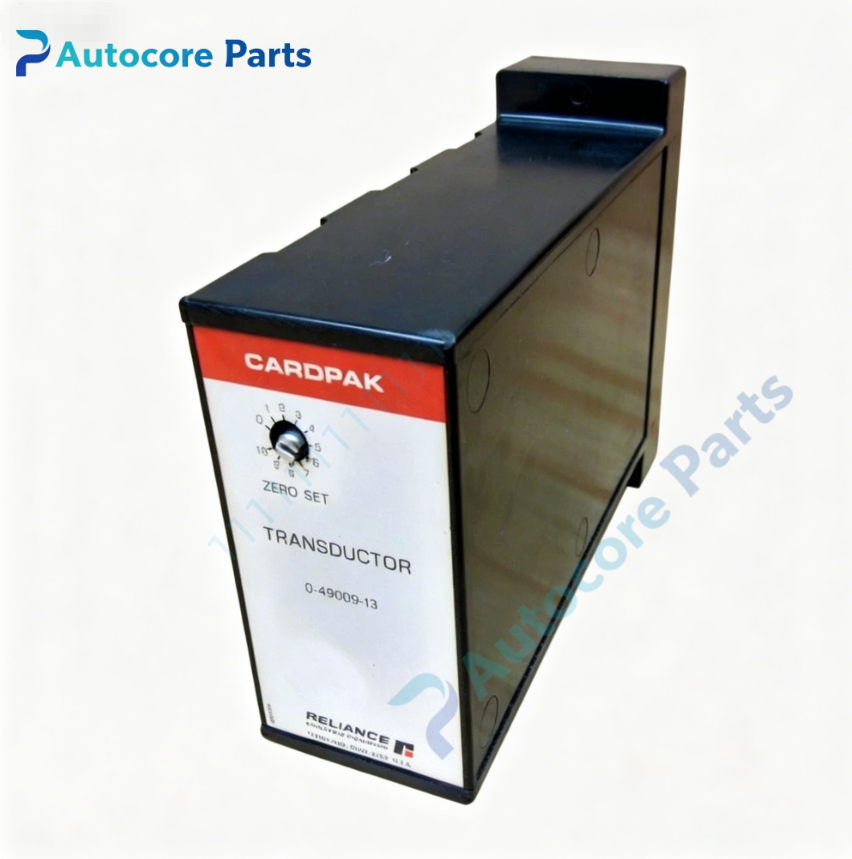

RELIANCE 0-49009-13 Transductor Board0-49009-13 Transductor Board

Technical Specifications Model:0-49009-13 Brand:RELIANCE Product type:Transductor Board Weight:1.05kg Dimension:231mm161mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility 0-49009-13 belongs to RELIANCE CardPak series transductor board. Installed into CardPak rack,works with regulator board and limit module board. It performs AC current sampling and analog signal conversion for CardPak DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function 0-49009-13 is dedicated transductor signal conversion board for RELIANCE CardPak DC drive system. Sample main loop AC current and convert it into proportional low-level analog signal. Isolate high-power main circuit from low voltage control circuit. Deliver converted current feedback signal to regulator board for closed-loop current control. Onboard adjustment potentiometer for signal calibration. Suppress high-frequency noise generated by SCR commutation. Provide current magnitude signal for over-current protection logic.

Installation Power off the whole drive cabinet and cut main power supply. Insert 0-49009-13 board into designated CardPak slot and lock retaining latch. Connect backplane bus connector and current signal wiring. Separate low voltage control wiring from high power main circuit cable. Power on system,calibrate output signal via front potentiometer. Test sampling signal under no-load and load condition.

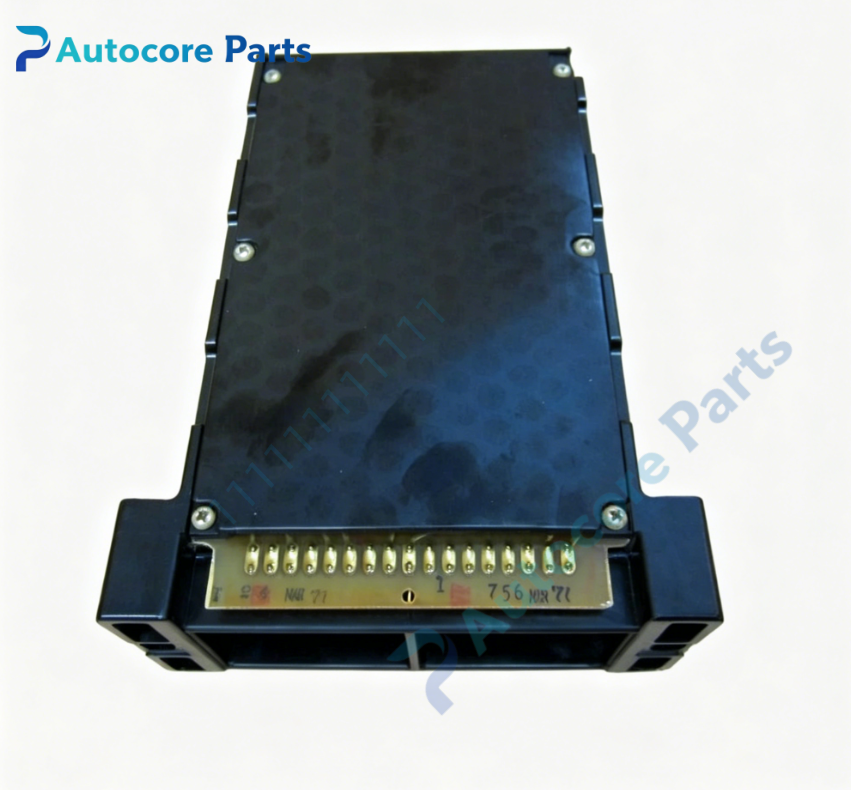

Interface Backplane bus connector,current signal input & output terminal,calibration potentiometer,status LED indicators.

Feature RELIANCE 0-49009-13,CardPak rack mount transductor board. High voltage isolation between power circuit and control side. AC current sampling and analog signal conversion. Onboard potentiometer for field signal calibration. Built-in noise filtering for SCR drive commutation interference. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old CardPak DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation.

Diagnostic Drive current unstable:transductor calibration drift or signal interference; Inaccurate current reading:potentiometer misadjustment or internal component aging; No current feedback signal:backplane connector poor contact; Frequent overcurrent false trip:signal distortion caused by component degradation; Regulator board current alarm:transductor output overload.

Product Brief RELIANCE 0-49009-13 is CardPak transductor board. It samples main circuit current and converts isolation analog feedback signal for Reliance CardPak DC drive,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
