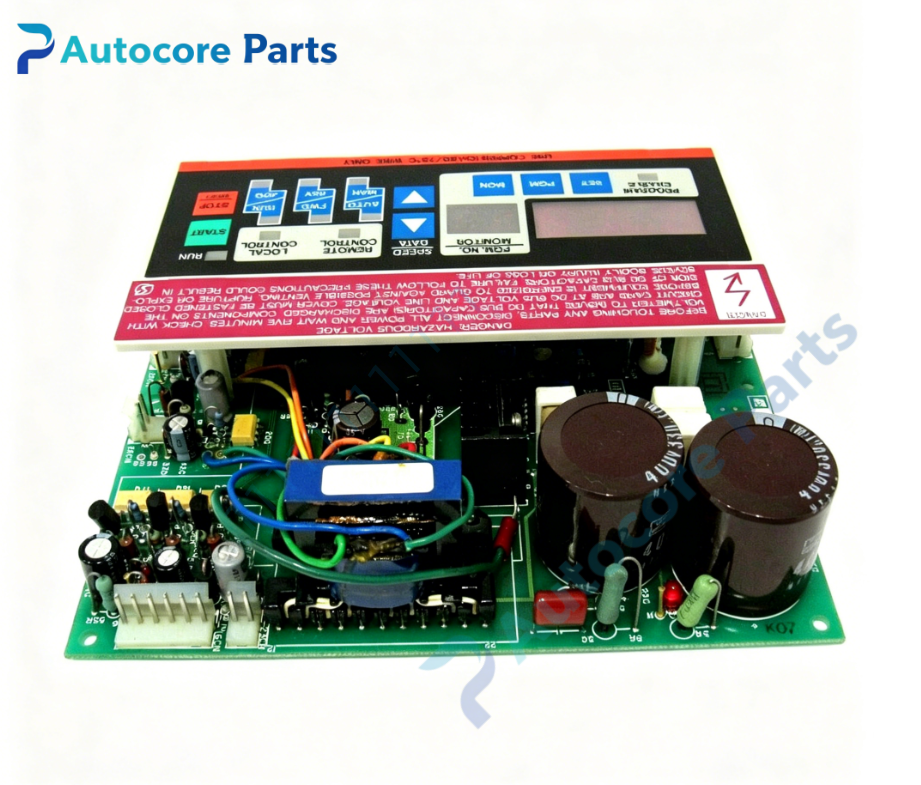

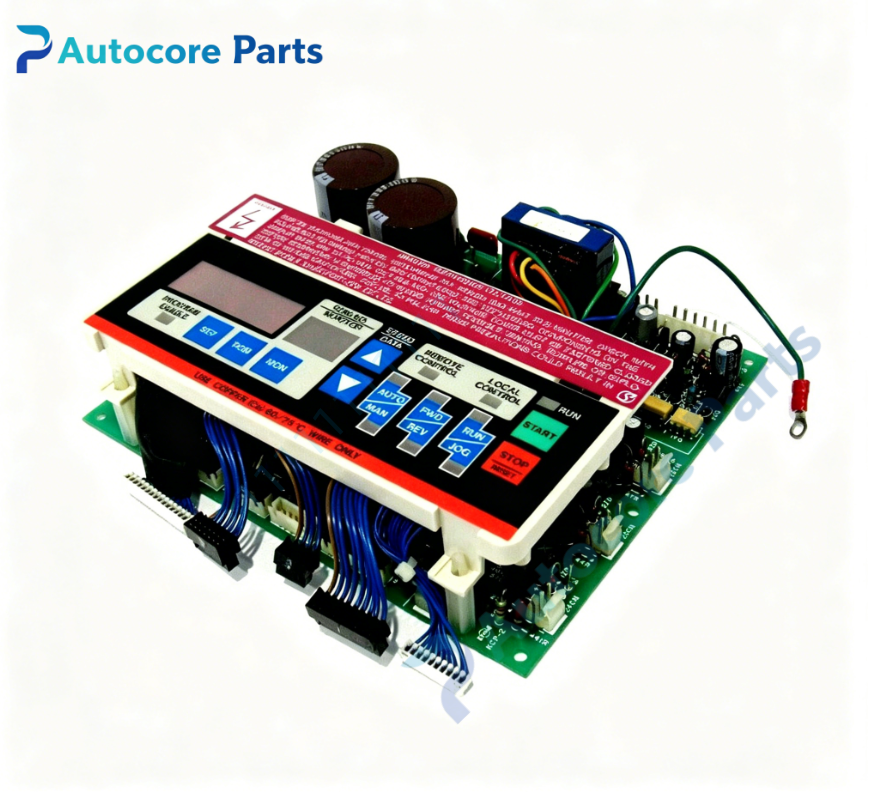

RELIANCE 0-48680-211 Power Supply Base Driver Board

Technical Specifications

Model:0-48680-211

Brand:RELIANCE

Product type:Power Supply Base Driver Board

Weight:1.43kg

Dimension:237mm167mm30mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-48680-211 belongs to RELIANCE GP2000 drive series power supply base driver board.

Installed into GP2000 drive cabinet,works with regulator board and main power unit.

It is the auxiliary power supply and power trigger drive unit for GP2000 drive system.

Commonly used for old industrial drive equipment maintenance and spare replacement.

Function

0-48680-211 is dedicated power supply base driver board for RELIANCE GP2000 drive system.

Generate multi-channel stable auxiliary power for regulator and signal boards.

Amplify control pulse signal to trigger main power semiconductor components.

Monitor power supply voltage and output fault feedback signal to regulator board.

Built-in overvoltage,undervoltage and overcurrent protection circuit.

Provide isolation between low voltage control circuit and high power main circuit.

Detect power supply status in real time and upload alarm signal.

Installation

Power off the whole drive cabinet and cut main power supply.

Insert 0-48680-211 board into designated rack slot and lock retaining latch.

Connect main power input terminal,pulse signal wiring and auxiliary power output cable.

Separate low voltage signal wiring from high power main circuit cable.

Power on system,check each auxiliary power output.

Test pulse drive function under no-load and load condition.

Interface

Main power input terminal,auxiliary power output port,pulse signal input and output terminal,status & fault LED indicators.

Feature

RELIANCE 0-48680-211,GP2000 drive power supply base driver board.

Integrated auxiliary power generation and pulse drive circuit.

Electrical isolation design between control side and high power side.

Multi-channel power monitoring and hardware protection.

Industrial PCB design for long continuous running in harsh factory environment.

Discontinued obsolete board,supply only for old GP2000 drive system spare replacement.

Suitable for metallurgy,paper-making production line drive renovation.

Diagnostic

No auxiliary power output:main power input fault or board power circuit damage;

Drive cannot start:undervoltage protection triggered or pulse channel failure;

Intermittent drive shutdown:power supply capacitor aging;

Fault indicator on:overcurrent or overvoltage protection activated;

Regulator board power alarm:auxiliary power output abnormal.

Product Brief

RELIANCE 0-48680-211 is GP2000 power supply base driver board.

It supplies auxiliary power and outputs drive pulse for Reliance GP2000 drive,widely used as spare part for industrial drive equipment maintenance.

Disclaimer

All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
