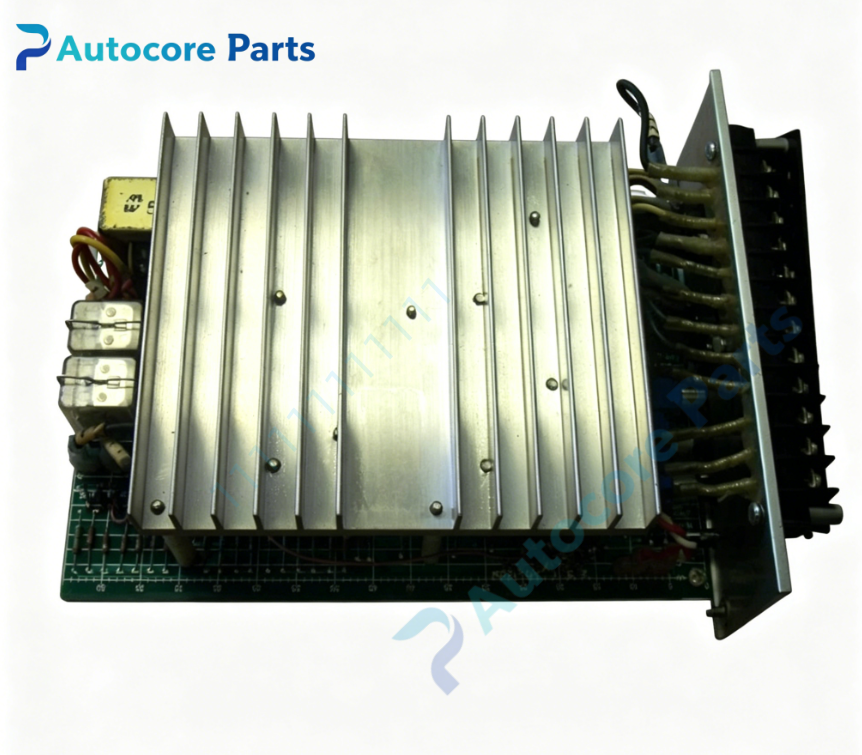

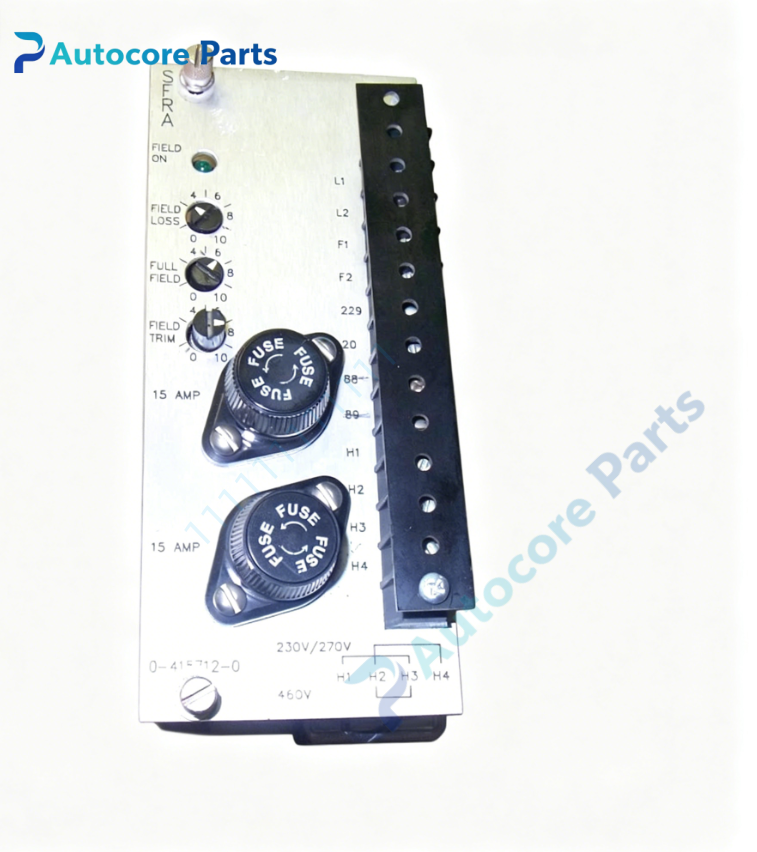

RELIANCE 0-415-712-0 Drive Control Board

Technical Specifications

Model:0-415-712-0

Brand:RELIANCE

Product type:Drive Control Board

Weight:1.44kg

Dimension:240mm170mm30mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-415-712-0 belongs to RELIANCE drive cabinet series control board.

Installed into Reliance drive control cabinet,works with CPU module,power supply board and power unit.

It is the closed-loop speed and torque signal processing unit for the drive system.

Commonly used for old industrial drive equipment maintenance and spare replacement.

Function

0-415-712-0 is dedicated control board for RELIANCE drive system.

Collect motor speed feedback signal and analog setpoint signal.

Complete closed-loop speed and torque calculation for motor regulation.

Generate trigger pulse signal to control power semiconductor devices.

Built-in overcurrent,overvoltage and overtemperature hardware protection.

Real-time sampling of voltage and current of the power loop.

Upload fault information and operating status to main CPU module.

Save motor parameters,acceleration and deceleration configuration.

Installation

Power off the whole drive cabinet and cut main power supply.

Insert 0-415-712-0 board into designated slot and lock retaining latch.

Connect backplane bus,encoder feedback cable and pulse trigger wiring.

Separate low voltage signal wiring from high power main circuit cable.

Power on system,download motor configuration parameters.

Test speed adjustment and protection function response.

Interface

Backplane bus connector,encoder feedback port,analog signal terminal,pulse trigger output terminal,status & fault LED indicators.

Feature

RELIANCE 0-415-712-0,rack mount drive control board.

High precision closed-loop regulation for heavy duty motor.

Integrated signal sampling and pulse generation circuit.

Multi-layer protection circuit to prevent power device damage.

Industrial PCB design for long continuous running in harsh factory environment.

Discontinued obsolete board,supply only for old automation drive system spare replacement.

Suitable for metallurgy,paper-making production line drive renovation.

Diagnostic

Drive no output:board power loss or pulse output circuit damaged;

Motor speed fluctuation:feedback cable loose or sampling circuit drift;

Frequent overcurrent trip:current sampling fault or wrong parameter setting;

Fault LED keep on:internal component aging;

CPU cannot detect board:backplane bus poor contact.

Product Brief

RELIANCE 0-415-712-0 is drive control board.

It completes motor closed-loop speed control and signal sampling for Reliance drive system,widely used as spare part for heavy industry drive equipment maintenance.

Disclaimer

All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
