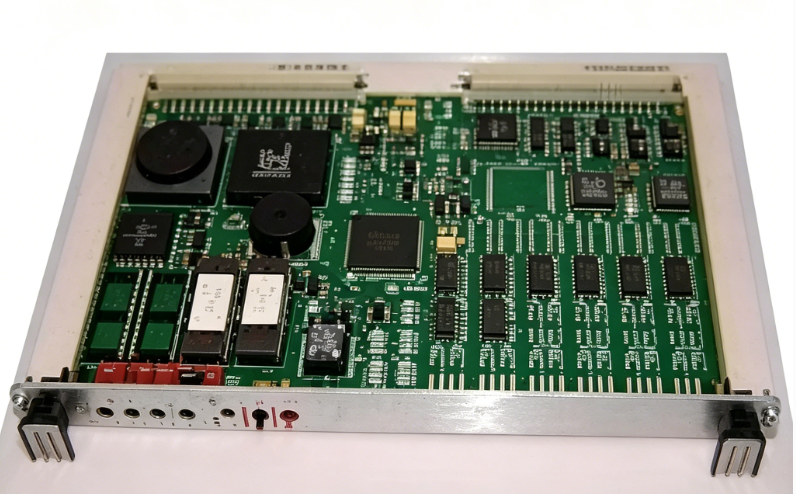

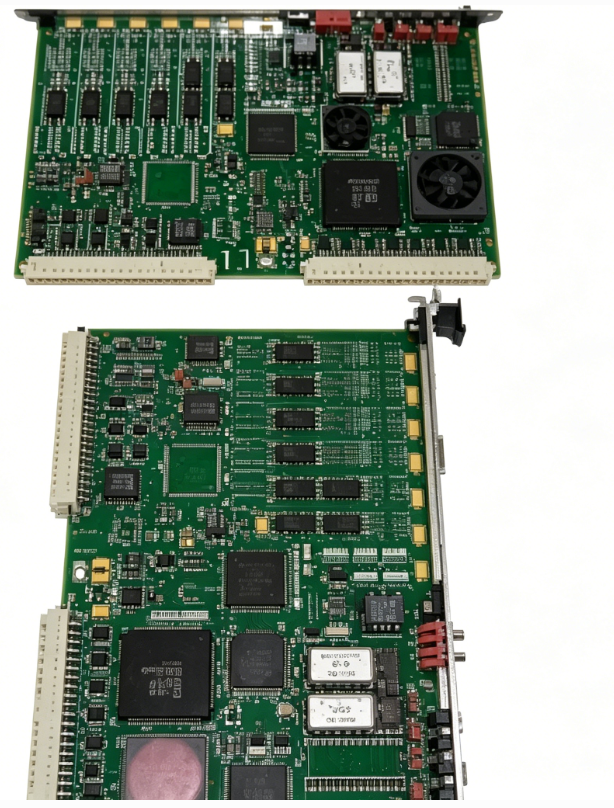

Motorola MVME147-010 VMEbus Single Board Computer

Technical Specifications

Model:MVME147-010

Brand:Motorola

Part No:MVME147-010

Product type:VMEbus Single Board Computer

CPU:MC68030

Clock:16MHz

Coprocessor:MC68882

Memory:4MB DRAM,no parity,4K×8 CMOS RAM with battery backup

Bus:VMEbus A32/D32,A24/D16,A16

Form Factor:6U Eurocard

Power supply:+5V DC

Power consumption:15W

Dimension:233mm160mm20mm

Weight:0.82kg

Interface:4×RS232 serial port,Centronics parallel port,SCSI interface,VME backplane connector,watchdog timer,RTC clock

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME147-010 belongs to Motorola MVME147 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME147-010 is a 6U VME single board computer based on MC68030 processor with MC68882 floating-point coprocessor.It supports embedded real-time operating system,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus,serial ports and SCSI,onboard watchdog timer and RTC improve system stability.

Installation

Insert MVME147-010 into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable,SCSI cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Quad RS232 serial port

‑Centronics parallel port

‑SCSI interface

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME147-010 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,electrolytic capacitor aging,battery leakage.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output,SCSI access failure.Check VME backplane power supply,clean gold finger,test RAM and serial circuit.

Product Brief

MVME147-010 is Motorola 6U VME single board computer with MC68030 16MHz CPU,4MB non-parity DRAM.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
