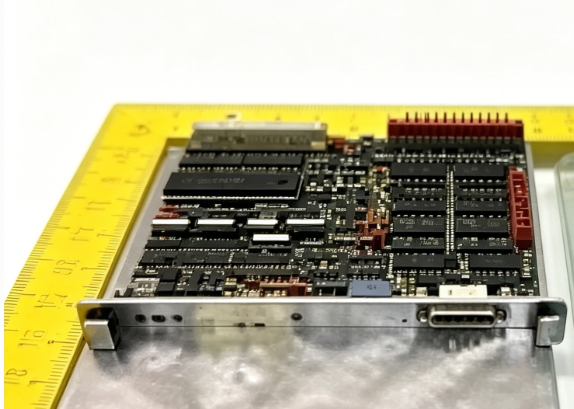

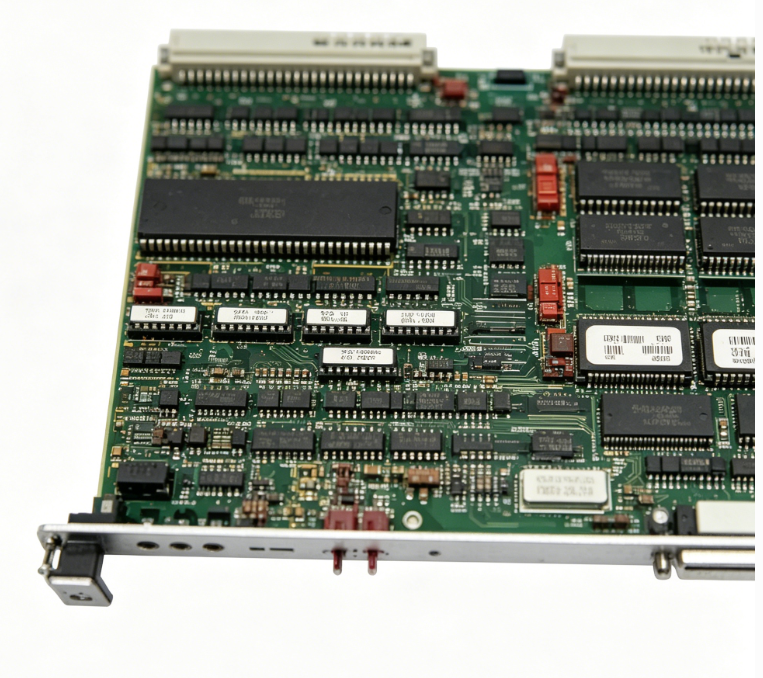

Motorola MVME110-1 VMEbus Single Board Computer

Technical Specifications

Model:MVME110-1

Brand:Motorola

Part No:MVME110-1

Product type:VMEbus Single Board Computer

CPU:MC68000

Clock:10MHz

Memory:1MB RAM

Bus:VMEbus A16/D16

Form Factor:6U Eurocard

Power supply:+5V DC

Power consumption:8W

Dimension:233mm160mm20mm

Weight:0.38kg

Interface:RS232 serial port,parallel I/O,VME backplane connector

Operating temperature:0℃ ~ +70℃

Storage temperature:-20℃ ~ +85℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

MVME110-1 belongs to Motorola MVME series VME single board computer.It can work with VME backplane and matching VME I/O modules,widely used in old industrial control,test measurement,defense and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME110-1 is a 6U VME single board computer based on MC68000 processor.It can run embedded real-time operating system,execute control logic and data acquisition.It communicates with peripheral modules through VME bus and serial port.

Installation

Insert MVME110-1 into standard 6U VME chassis slot,lock the front panel.Fix the board card,connect serial cable and VME backplane.Pay attention to ESD protection before power on.

Interface

‑VME backplane connector

‑RS232 serial port

‑Parallel digital I/O port

‑+5V power terminal

Feature

MVME110-1 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,capacitor aging.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output.Check VME backplane power supply,clean gold finger,test RAM and serial circuit.

Product Brief

MVME110-1 is Motorola 6U VME single board computer with MC68000 10MHz CPU,1MB RAM.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
