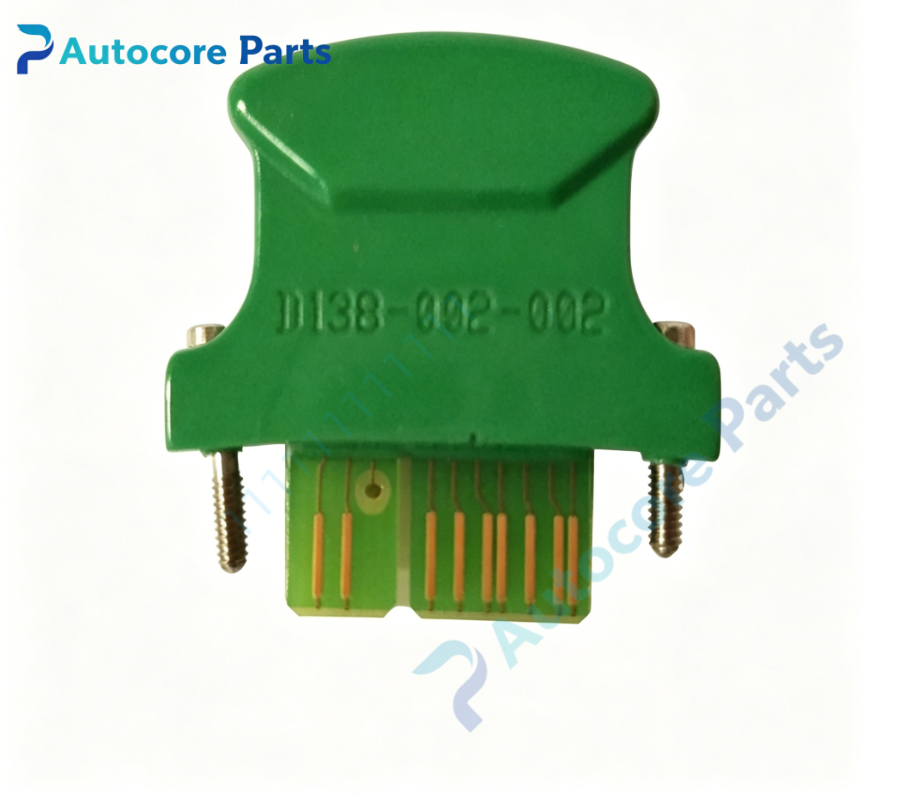

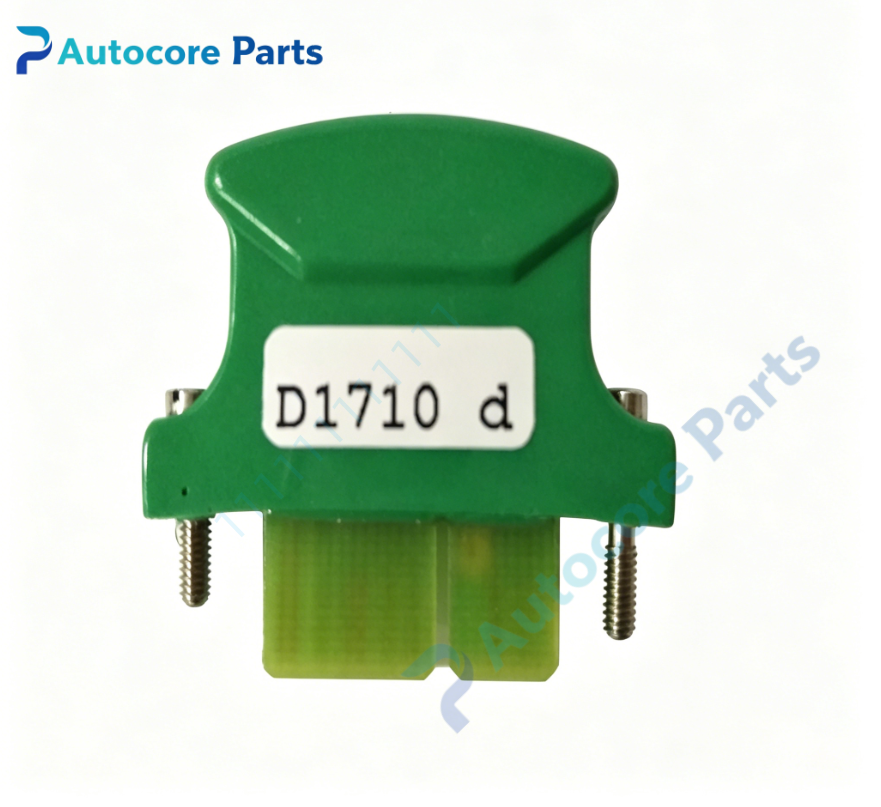

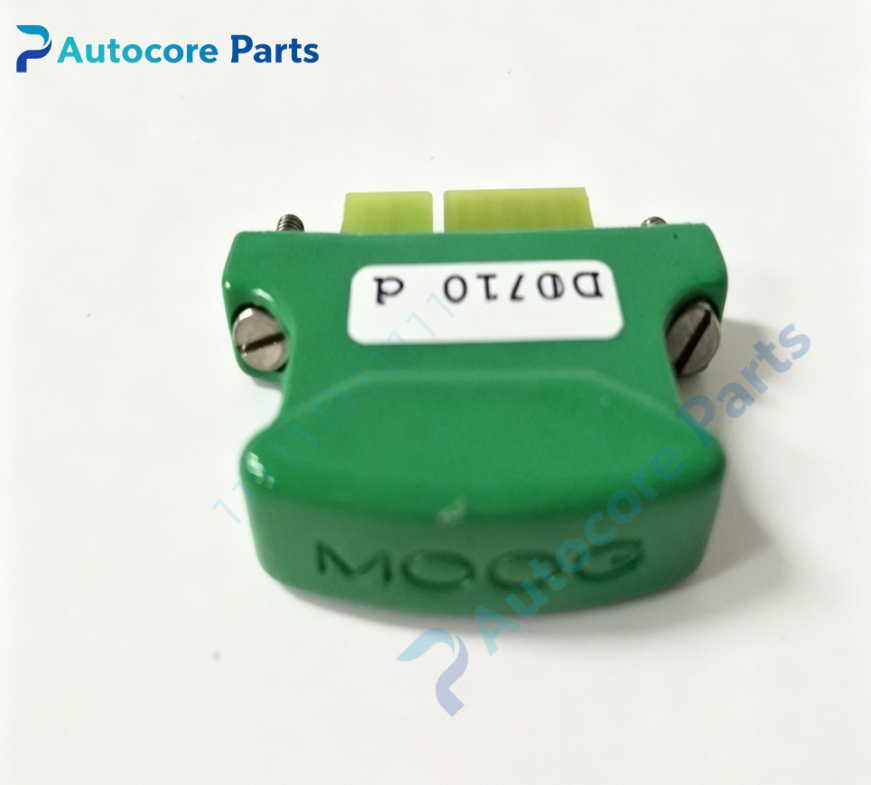

MOOG D138-002-002 MACS Advanced Motion Runtime License Key

Technical Specifications

Model:D138-002-002

Brand:MOOG

Product type:MACS Advanced Motion Runtime License Key

License type:Advanced motion runtime license

Compatible software:Moog Axis Control Software(MACS)

Compatible system:MOOG MSC II, M3000 motion control platform

Weight:0.1kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:10~90%

Certification:CE

System compatibility

D138-002-002 belongs to MOOG D138 series MACS advanced motion license key.It is matched with MSC II multi-axis controller and M3000 platform,supports PLCopen motion library and Z-functions,used for test benches and precision motion control equipment.It is replacement spare part for industrial system overhaul.

Function

D138-002-002 is green label advanced motion runtime license for MACS.It activates PLCopen motion control function blocks and transfer function modeling Z-functions,to support multi-axis synchronous motion programming on M3000 control system.

Installation

Bind license to controller serial number via MACS software tool.Finish activation after configuration.Take anti-static protection during handling.

Interface

‑Software authorization interface

‑Controller serial number binding port

Feature

MOOG D138 series advanced motion license,stable authorization,rich motion function library,real-time motion calculation.Typical faults:authorization invalid,license mismatch.Inspect binding information regularly.

Diagnostic

Fault phenomenon:motion function locked,software cannot enable PLCopen motion library.Check controller serial number and license binding status.

Product Brief

D138-002-002 is MOOG D138 series MACS advanced motion runtime license key.It enables advanced motion control functions for M3000 / MSC II servo system overhaul and replacement.
