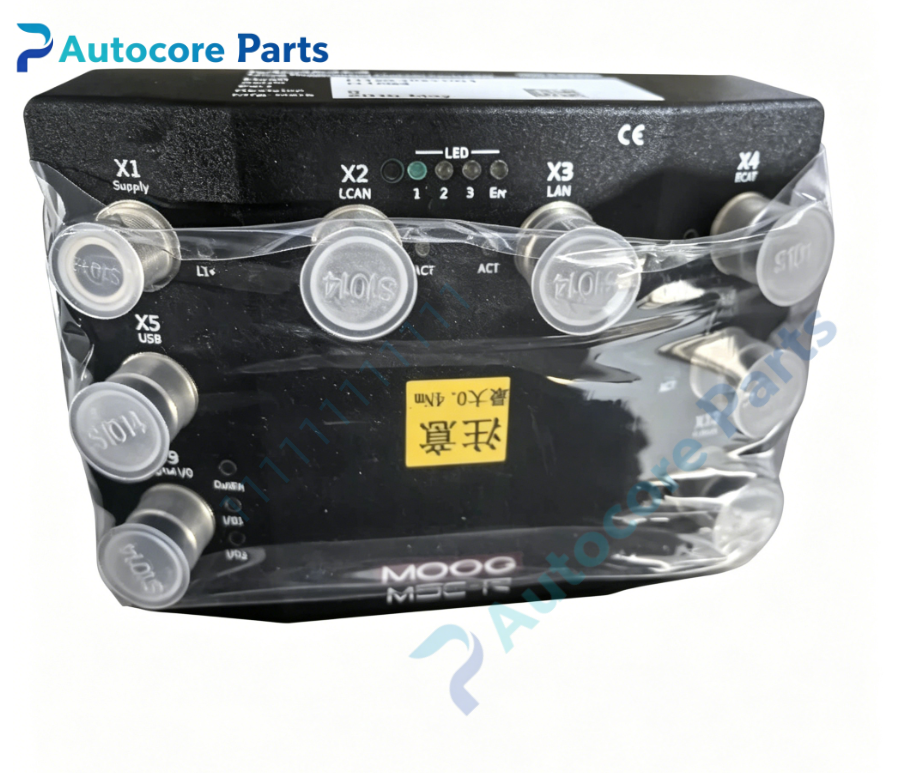

MOOG D136-003-001 Multi-axis Digital Servo Controller

Technical Specifications

Model:D136-003-001

Brand:MOOG

Product type:Multi-axis Digital Servo Controller

Supply voltage:24V DC

Processor:400MHz PowerPC

Memory:128MB RAM,32MB Flash

Weight:1.15kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:10~90%

Certification:CE

System compatibility

D136-003-001 belongs to MOOG D136 series MSC II servo controller.It supports multi-axis synchronization and is widely used in test benches,automation production lines and precision closed-loop motion systems.It is complete replacement spare part for industrial equipment overhaul.

Function

D136-003-001 adopts real-time motion control algorithm.It receives position and force feedback signals,generates trajectory commands and outputs drive signals to servo valves or servo drives to realize multi-axis coordinated closed-loop control.

Installation

Mount module on standard electrical cabinet rail.Connect power supply and communication wiring correctly.Check wiring before power on.Take anti-static protection during handling.

Interface

‑Power supply terminals

‑Ethernet,CANopen,RS232 communication ports

‑Encoder and digital I/O terminals

‑Module status indicator

Feature

MOOG D136 MSC II controller,fast real-time response,rich communication interfaces,flexible programming.Typical faults:communication failure,program crash,I/O signal abnormality.Inspect wiring and firmware regularly.

Diagnostic

Fault phenomenon:axis synchronization error,communication disconnect,no I/O response.Check power supply,network cable connection and controller firmware status.

Product Brief

D136-003-001 is MOOG D136 series MSC II high-performance multi-axis digital servo controller.It is a real-time motion control component for industrial multi-axis servo system overhaul and replacement.
