MOOG D02HABF6VSX2-A Electro-Hydraulic Servo Valve

Technical Specifications

Model:D02HABF6VSX2-A

Brand:MOOG

Product type:Two-stage Electro-Hydraulic Servo Valve

Max working pressure:350bar

Working medium:Mineral hydraulic oil,phosphate ester fire-resistant oil

Input signal:±10V analog signal

Weight:8.7kg

Operating temperature:-20℃ ~ +120℃

Storage temperature:-40℃ ~ +130℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

D02HABF6VSX2-A belongs to MOOG D662 series servo valve.It is widely used in material fatigue test rig,vibration simulation platform,heavy-duty hydraulic closed-loop control system.It is complete replacement spare part for hydraulic equipment overhaul.

Function

D02HABF6VSX2-A two-stage electro-hydraulic servo valve adopts jet pipe pilot structure.It converts analog command signal into proportional hydraulic flow,adjusts oil flow and direction to realize closed-loop regulation of force,pressure and position for industrial hydraulic equipment.

Installation

Mount valve on standard hydraulic manifold.Connect P,T,A,B hydraulic ports and electrical connector.Flush oil circuit before commissioning,complete zero and gain calibration.Take anti-static protection during handling.

Interface

‑Hydraulic P,T,A,B oil ports

‑11+PE threaded circular electrical connector

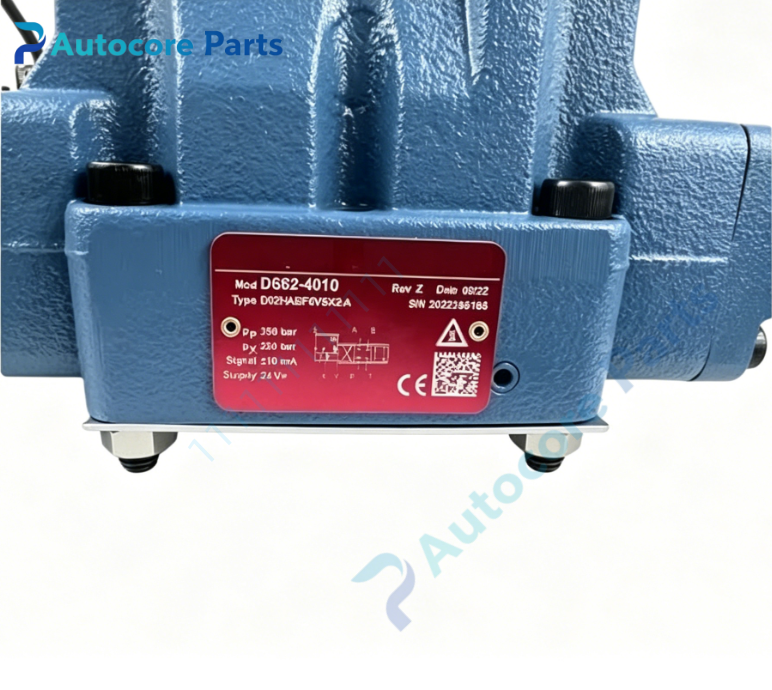

‑Valve laser marking label

Feature

MOOG D662 series jet pipe servo valve,strong anti-pollution capacity,low hysteresis.Typical faults:zero drift,internal leakage,jet pipe damage,electronic circuit failure.Inspect oil cleanliness and valve performance regularly.

Diagnostic

Fault phenomenon:output unstable,pressure fluctuation,slow dynamic response,valve no action.Check oil contamination,spool condition and built-in amplifier circuit.

Product Brief

D02HABF6VSX2-A is MOOG D662 series two-stage jet pipe electro-hydraulic servo valve with integrated electronic driver.It is high-precision hydraulic control component for industrial closed-loop servo system overhaul and replacement.
