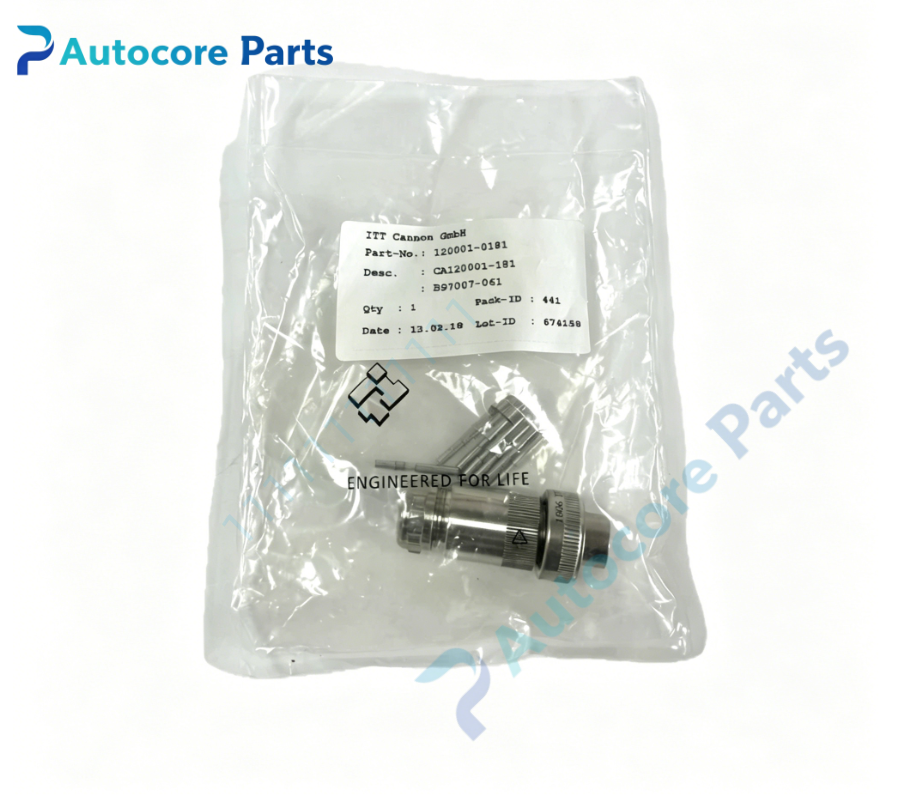

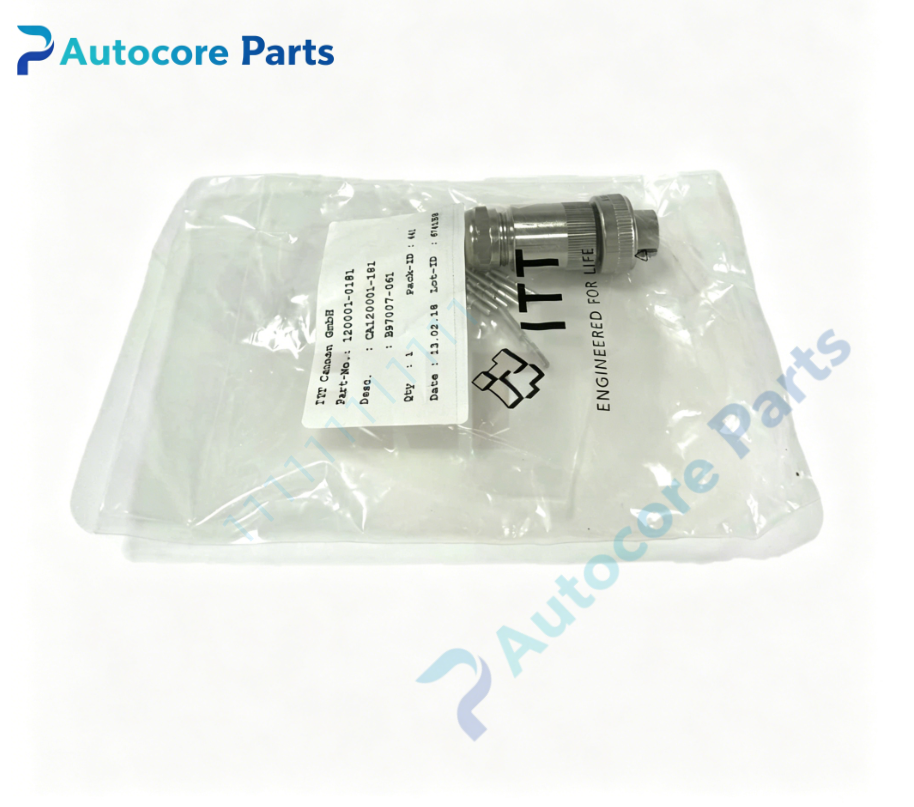

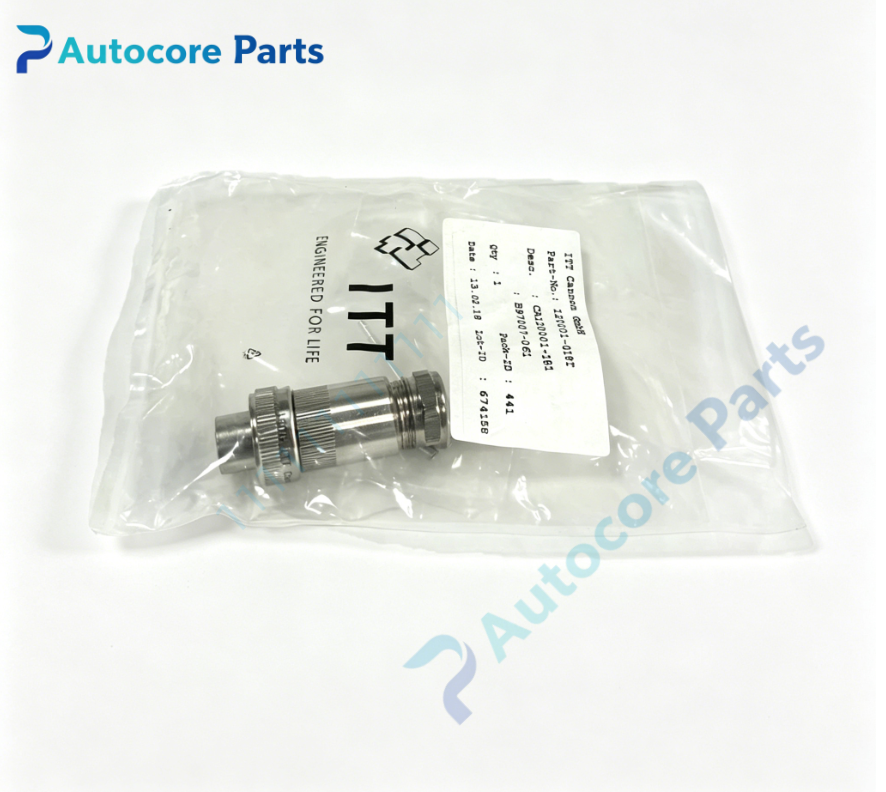

MOOG B97007-061 Servo Valve 6+PE Mating Connector

Technical Specifications

Model:B97007-061

Brand:MOOG

Product type:Straight 6+PE Circular Metal Mating Connector

Structure:Metal shell,gold-plated crimp contacts,thread locking

Pin definition:6 signal pins + 1 PE protective earth

Standard:EN 175201-804

Protection class:IP65(mated)

Cable range:8~12mm outer diameter

Dimension:48mm*18mm

Weight:0.045kg

Operating temperature:-20℃ ~ +120℃

Storage temperature:-40℃ ~ +130℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

B97007-061 is MOOG servo valve straight mating connector.It fits MOOG D633,D634,D661,D680 series servo valves,widely used in steam turbine DEH,fatigue test bench and precision hydraulic servo system.It is electrical spare part for servo valve overhaul.

Function

B97007-061 circular connector transmits 24V power,analog command signal and spool position feedback signal between servo amplifier and electro-hydraulic servo valve.Thread locking ensures stable connection and anti-vibration in harsh industrial environment.

Installation

Strip cable and crimp contacts,assemble pins into connector housing.Tighten threaded lock ring to mate with valve socket.Check wiring continuity and insulation after assembly.Shielded cable is recommended.Take anti-static protection during handling.

Interface

‑6+PE pin cavity,thread locking interface

‑Connector laser marking label

Feature

MOOG IP65 metal servo valve connector with gold plated contacts.Typical faults:pin corrosion,cable pull damage,poor contact.Inspect contact status during maintenance.

Diagnostic

Fault phenomenon:signal jitter,intermittent connection,servo valve random alarm.Check connector pins,cable crimping and locking condition.

Product Brief

B97007-061 is MOOG straight 6+PE metal circular mating connector for servo valve power and signal transmission.It is essential electrical connection spare part for industrial electro-hydraulic servo system maintenance and replacement.
